Summary of Contents for HFWS HF-S4
- Page 1 Solar WiFi Camera Operating Instructions...

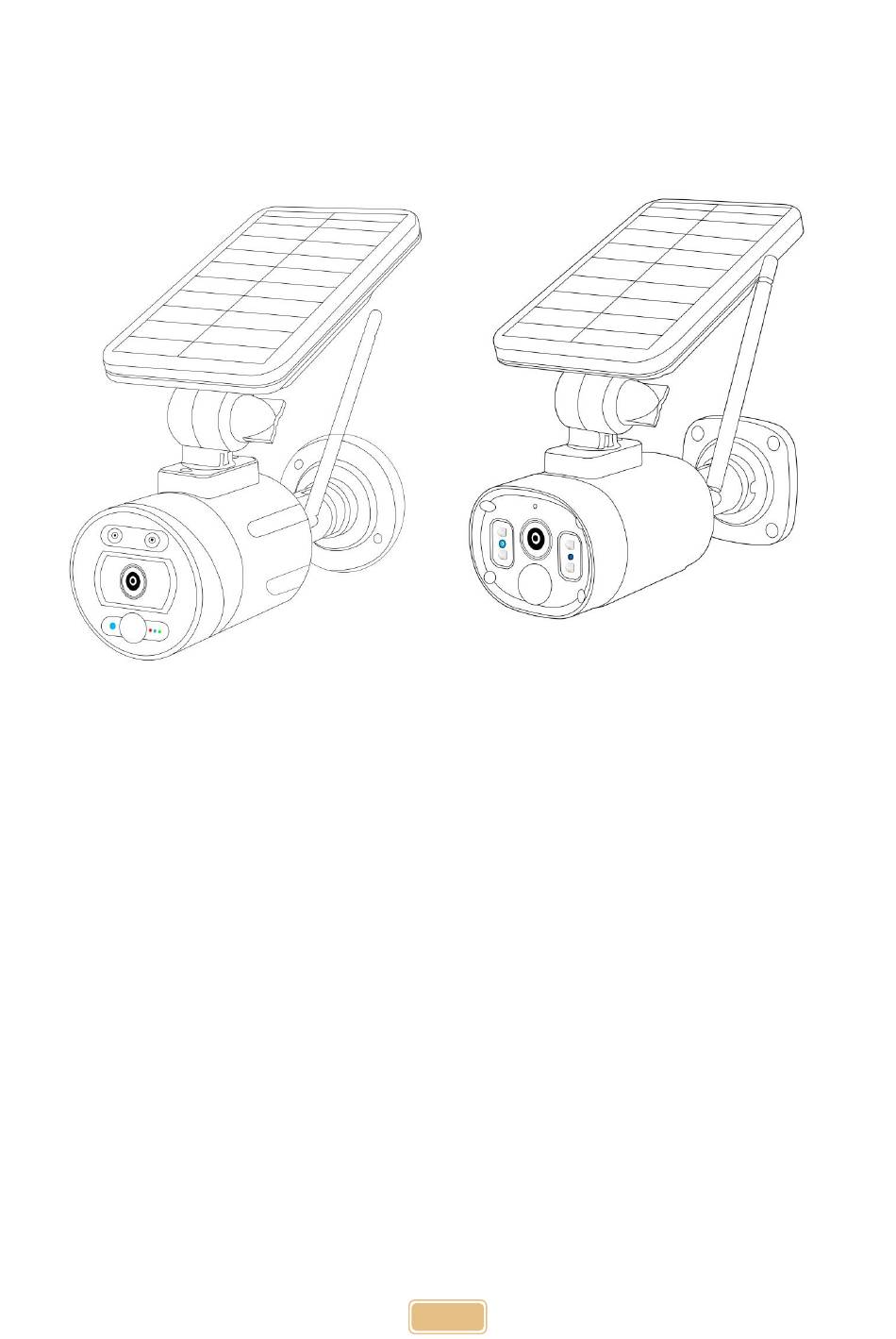

- Page 2 A:Product Details Model:HF-S4 Model:HF-S5...
- Page 3 B:First Use 1:Open the Camear Bottom Screw 2:Install Micro SD(Up to 128G) HF-S4 HF-S5 3:Long Press 2-3 Seconds to turn on 4:Power Indicator red HF-S4 HF-S5...
- Page 4 C: Battery Charging Note:Please Charge 10-18 hours With DC-5V charger for the first time using Green Light Charging HF-S4 HF-S5 D:Resetore Factory Setting Why Restore Factory Settings 1:The camera Can’t Connect to the phone 2:Change new router 1:IF you see the blue light(The blue Light 2:Long press the“Reset”Button for 5 Seconds ,You...
- Page 5 E:Installation Method Note:Please fully charge.Then connect the phone.And then install 1:Paste Positioning Stickers 2:Bore A hole 3:Install the rubber plug 5:Adjust the angle 4:Install Screws F:App Download Tuya Smart Search( ) In App Store or Google Play...
- Page 6 F:Connect Device The first installation should be close to the router and mobile phone must connect router WiFi Tuya Smart 1:Open “ ”App Register And Click “ ” 2:Click-Video Survillance-Smart Camera...
- Page 7 3:Next Step 4:Select your router and enter your password “confirm” Note: 2.4GHz Only .5.GHz Can’t...
- Page 8 5:Point the phone screen directly in front of the camera lens.The distance between the two is 10-20M.Try not to shake the phone druing the process After hearing the device“beep”,Click “I Heard a Prompt” Voice”and Wait for the device to connect successfuly IF prompted connection failed: 1:Is the wireless password correct?
-
Page 9: Home Page Introduction
G:App Introduction Home Page Introduction 1:Home Setting 2:Up to 4Channel 3:Voice Control 4:Add Product 5:All Devices 6:Room Management 7:Devices 8:Home page 9:Smart Page 10:ME(Important) Preview Page introduction 1:Setting 2:Signal 3:Audio/ON/OFF 4:HD/SD Video 5:Full Scree 6:Battery Display&Charging 7:Screen Shot 8:Two Way Audio 9:Record in mobile phone 10:Play Back 11:Cloud Storage... - Page 10 H:Setting Page 1:Change Locn/Name/Location 2:Device Information 3:Tap-to-Run and Automation 4:Basic Function settings(Important) Flip screen:horizon tal flip/vertival flip/Rotate ° Time Watermark:ON/OFF Talk Mode:Two/One way Talk 5:PIR:Low/Medium/High(Important) Higher Setting,Higher Sensitivity(Outdoor High) 6:Power Management Settings 7:Storage Settings Format SD Card 8:Purchase VAS Free 30days cloud Storage 9:Share Device Share Device up to 5 people 10:FAQ&Feed back...
- Page 11 How To check motion detection? 1:Click:ME 2:Click:Message Center 3:Click:Device How to DO-NOT-Disturb Schedule? 1:Click:ME 2:Click:Settings 3:Click:App Notification 4:Click:Do-Not-Disturb Schedule...
- Page 12 How to adjust PIR Setting? 1:Click:Device 2:Click:Setting 3:Click:PIR Note:The distance up to 7Meters(23ft) How to share with family? 1:Click:Device 2:Click:Setting 3:Click:Share Device 4:Click:Add sharing Note:All mobile phone need install:Tuya smart app and registered...
-
Page 13: Phone Notifications
How to connect smart speaker? 1:Click:Me 2:Click:More Services 3:Click:Alexa or other Note:Alexa and google Assistant Both have video and text instructions to install the tutorial AI Filtered Notification Get notifications that you really care about stay away form false alarm Video Cloud Storage Camera will upload encrypted video data to the cloud once the service is subscribed.You can check the video throughthe App... - Page 14 How to Remove Device? Method one:Click:Device-Setting-Remove Device Note:If you replace a new phone or lose your phone.Use Method Two: 1:Click-Me-FAQ&FeedBack-Report Issue 2:Write the question, fill in the account, then take a screenshot and submit. Then send the screenshot to: support@hfwvision.com email. We Remove remotely FAQ: Q:The Device is not connected to Wifi A:1:Please confirm the WiFi is 2.4Ghz...
