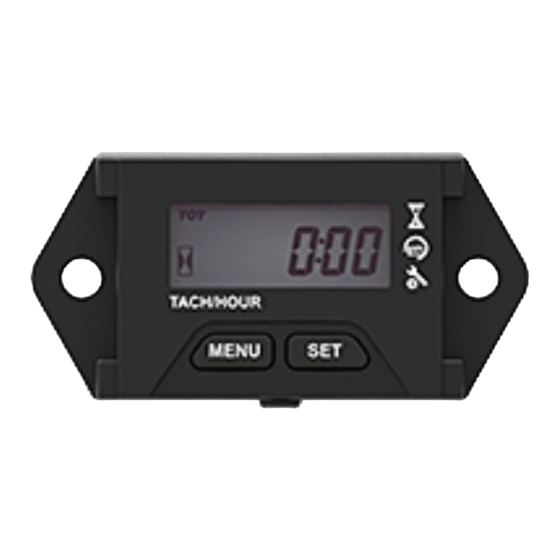

Summary of Contents for enmco PT16FM

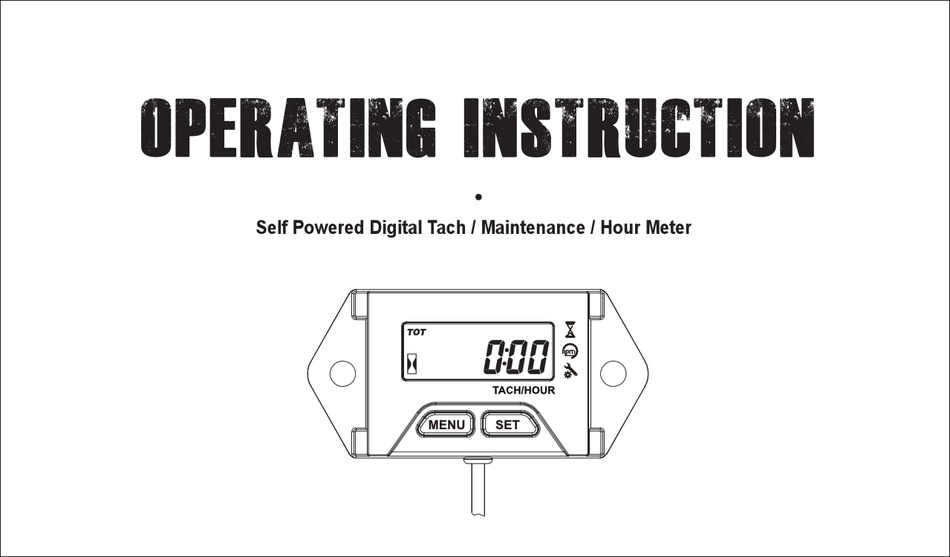

- Page 1 Operating Instruction Self Powered Digital Tach / Maintenance / Hour Meter...
- Page 2 Product Accessories List ---------------------------------------------------- ① Product Installation ---------------------------------------------------- ① Product Operation ---------------------------------------------------- ③ Specifications ---------------------------------------------------- ⑨ Dimension ---------------------------------------------------- ⑩ Please read and understand the following notices carefully, and correctly install and operate the product before using.
-
Page 3: Product Installation
Product Installation This product can be directly installed with double-sided tape or screwed, the 1. Please make sure to refer to the installation instructions in the installation method is as follows: operating instructions to avoid damage caused by installation errors. 2. - Page 4 2. Screw installation: Under normal condition, if the RPM is a little low, you can increase the winding turns, if the RPM is a little high, you can reduce the winding turns. For example, wrap 6-10 turns, if the RPM is a little high, you can reduce the winding turns. For example, wrap 2-4 turns, if the RPM is a little low, you can increase the winding turns.
- Page 5 Product Operation The functions of DSP-1 and DSP-2 are shown as the following diagram： DSP-1 DSP-2 1. Product operating system introduction a) In order to meet the usage Press and hold habits of different users, the program of this product has 2 sets of use systems (just like after the WINDOWS system can be used on the apple...
- Page 6 DSP-1 to DSP-2 Engine Spark plug Engine type firing firing and engine Capacity patterns rotate laps Press and hold 4 stroke 2 cylinder 1 spark 1P1R 25000 per revolution 2 stroke 1 cylinder 1P2R 4 stroke 1 cylinder 1 spark 2 revolution 25000 4 stroke 4 cylinder 2 spark...
- Page 7 To set the tachometer. MAX RPM (Spark plug firing revolution) ---- Display the maximum RPM recorded during the last period of operation. a) Press the "MENU" button 5 times until display shows "1P1r" icon. (The factory default setting is "1P1r", if it has been set before, the firing To view MAX RPM: Press the "MENU"...
- Page 8 b) Press and hold the "SET" button until display shows "RPM" icon and alert RPM numerical value starts flashing. (1234Hours 56Minutes) Press the button 3 times c) Press "SET" or "MENU" button until you get desired alert RPM numerical value, ---- Hours of operation since the timer was reset.
- Page 9 4. The function and operation under the DSP-2 system. ---- Maintenance interval time. Note: Timing is countdown. The selection of the hours mode and RPM mode. When the maintenance interval time is reached, and the LCD display will flashing, a) When entering the DSP-2 system, the first entry is the hours mode. and press the "SET"...
- Page 10 5. Other The function circulation of the RPM mode. a) RPM mode contains RPM function, alert RPM function, MAX RPM To shut down LCD display. function, firing patterns choice. a) Press the "MENU" button and the "SET" button at the same time until b) The usage and setting of the RPM function, alert RPM function, MAX the "OFF"...
