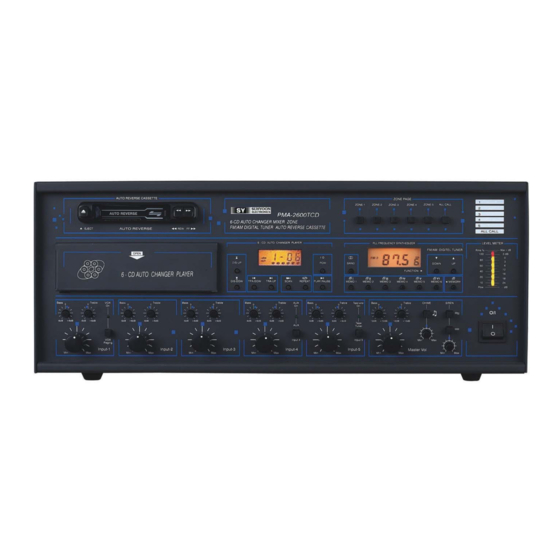

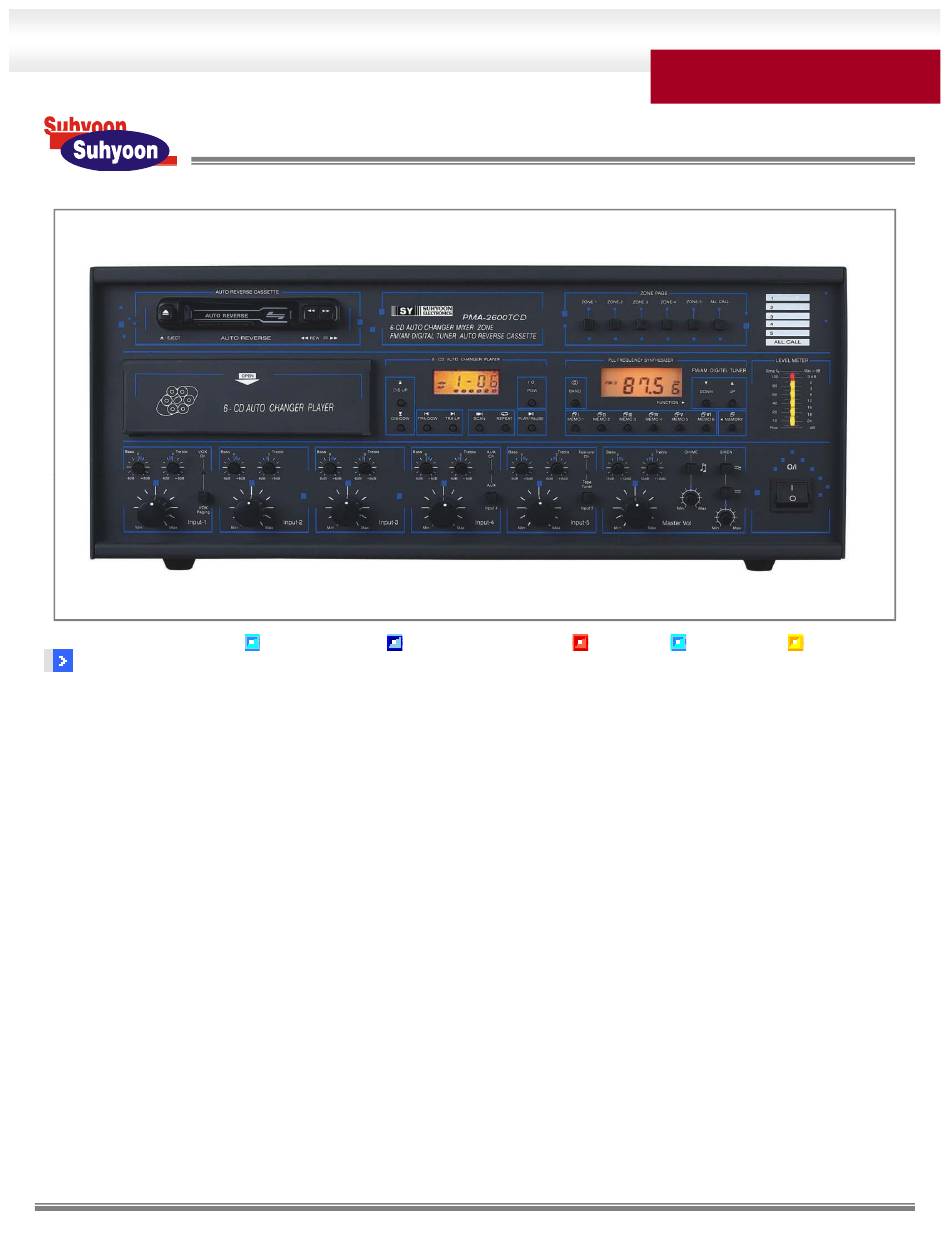

Suhyoon SYSTEM-5 Quick Start Manual

MULTI PA COMBINATION
Amplifier
Features

AMPLIFIER SECTION.

■
* Full protection for product reliability
Overload and speaker line short limiter circuit
Over current limiter circuit
O e heating p otection Over heating protection
* Selectable Impedance : 25V,35V,50V,70V and 100V
* Soft start circuit for AC power on
* Output LED indicator
* Input gain volume control for MIC/LINE
* Tone control for MIC/LINE
* Input : 5 balanced Mic (XLR & PL-55) and 2 Aux
( (RCA) )
* Selectable phantom power microphone
* RCA jack for recording output
* Telephone paging
* Music –on hold CD, tuner
* VOX Mic 1. (Muting for priority) for on/off switch
* Input 4 CH : mic / line control Switch
* Input 5 CH : mic. / CD, tuner control switch
* Master volume control * Maste ol me cont ol
* Designed for operation either AC mains or
| Zoom | | Print | | Leaflet |

6 CD CHANGER SECTION

■
Auto 6 CD Changer Deck Mechanism
*
* Play/Pause Function
* Disc Selection Function (D-UP,D-DN )
* Track Selection Function (T-UP,T-DN ) * Track Selection Function (T UP T DN )
* Repeat (DISC) Function (RPT)
* Scan (DISC) Function (SCAN)
* Power On/Off
* 6 CD LCD Display
Cassette Deck Section
■
* Auto Reverse
* Rewind Button
* Fast Forward Button
* Eject Button
Tuner Section
■
* Tuner LCD Display
* LED Backlight
* Up/Down Switch * Up/Down Switch
* Band Selector FM 1,2,3, AM 1,2
DC24V
* Memory Switch 1,2,3,4,5,6
SYSTEM-5/6
