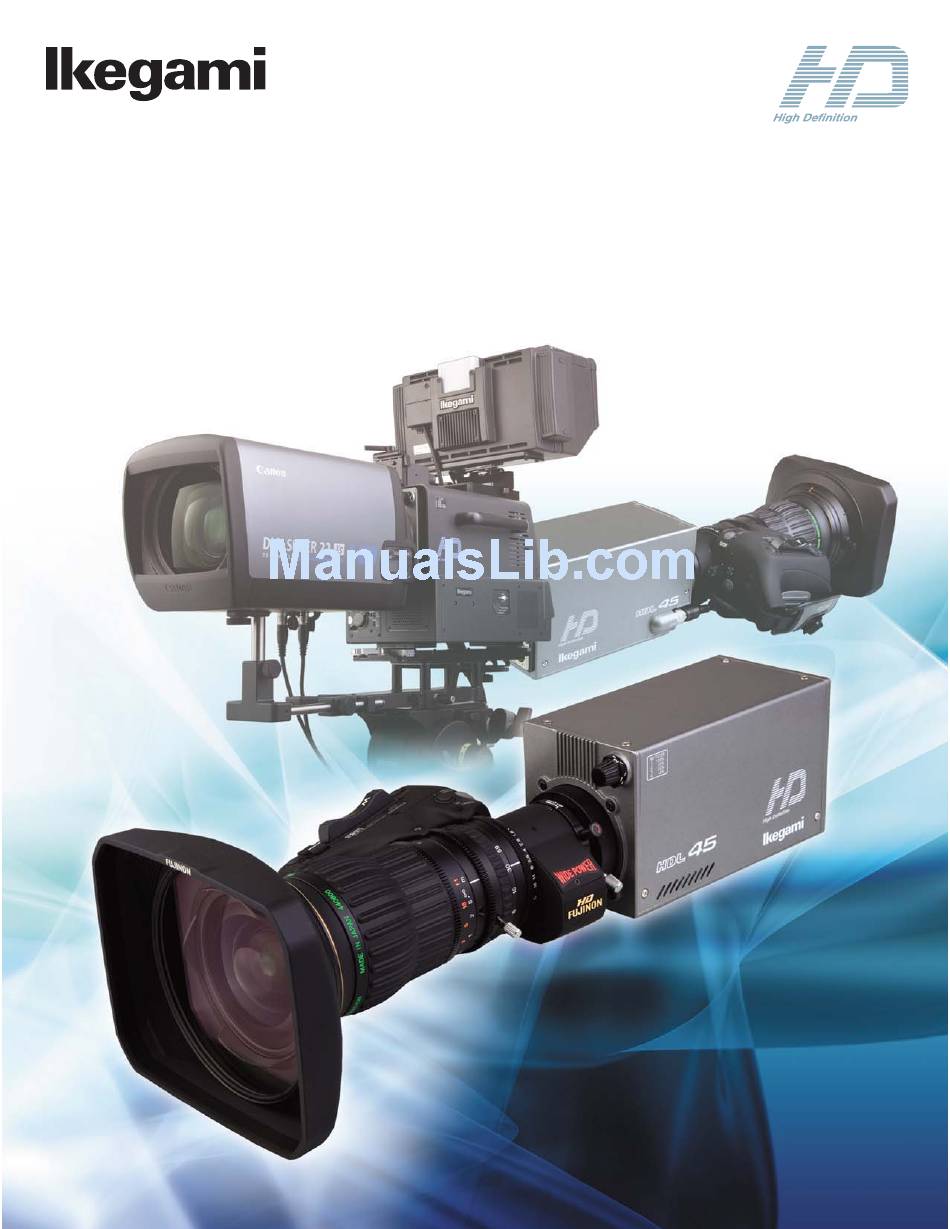

- Page 1 3CCD Multi-Purpose HDTV Camera HDL-45 Ikegami picture quality in a very compact and affordable package...
- Page 2 Full Remote Control The HDL-45 has full remote control capability from the complete range of Ikegami remote control panels. With matching pictures, the HDL-45 works with the same OCPs and control systems as Ikegami's HDK studio cameras.
- Page 3 The OCP-200 / MCP-200 is a new Network based control panel system offered as an alternate to the traditional Ikegami style control panels. The Arc- net system allows any OCP-200 to control any camera with assignment set at the OCP itself.
- Page 4 Input Signals Audio signal :-60 / -40 / -20 / 0dBm, 600Ω balanced, 2 channel Intercom signal :-60dBm, 1 channel Camera control :Ikegami COMMAND, 1 channel (PRC05-8pin M) Serial Interface :RS-232C/RS-422 (D-SUB 25-pin F) Output signals RET signal (SDI) :HD-SDI SMPTE292M, 1 channel (75Ω BNC) RET signal (Analog) :HD-Y ch: PS 1.0Vp-p or NTSC VBS: VS 1.0p-p, 1 channel (75Ω...
