- Page 1 USER MANUAL USER MANUAL Thank you for purchasing our products. Please read this instruction carefully before use and strictly follow the instructions.
-
Page 2: Door Preparation
Door Preparation 1. Check door thickness and Door Frame. Installation Template Door frame≧110mm Door thickness: 38-48mm 2. Check door open direction. １ ０ｍｍ ５ ４ｍｍ ２5ｍｍ ６ ０ｍｍ ２ ７ｍｍ Left open Right open Packing List 1 Piece 1 Piece 1 Piece 1 Piece 25mm 4 Piece... -
Page 3: Installation Diagram
Installation Diagram Installation Instructions ① Drill holes according to the installation template. A) Check the required backset (60mm or 70mm). B) Align the template along the vertical center line of the deadbolt(D) at the desired height, and tape it to the door. C) Mark the holes first, then start drilling. - Page 4 ② Install the latch (D) with screws (E) on the door. Note: The deadbolt has TWO backset options: 60mm or 70mm, please adjust it by yourself. Before inserting the latch into the hole, check that the mark is facing upwards. Note: DO NOT Push the latch out before installation.
- Page 5 ⑤ Install indoor unit(C) with screws(I、 H) on the door. If it is a left hand door, please turn the switch to L. If it is a right hand door, please turn the switch to R. Note:Put the lock spindle VERTICALLY into the hole connected to the knob at the indoor unit of the lock, that means the rotating part of the knob should also be turned to VERTICAL position.
-

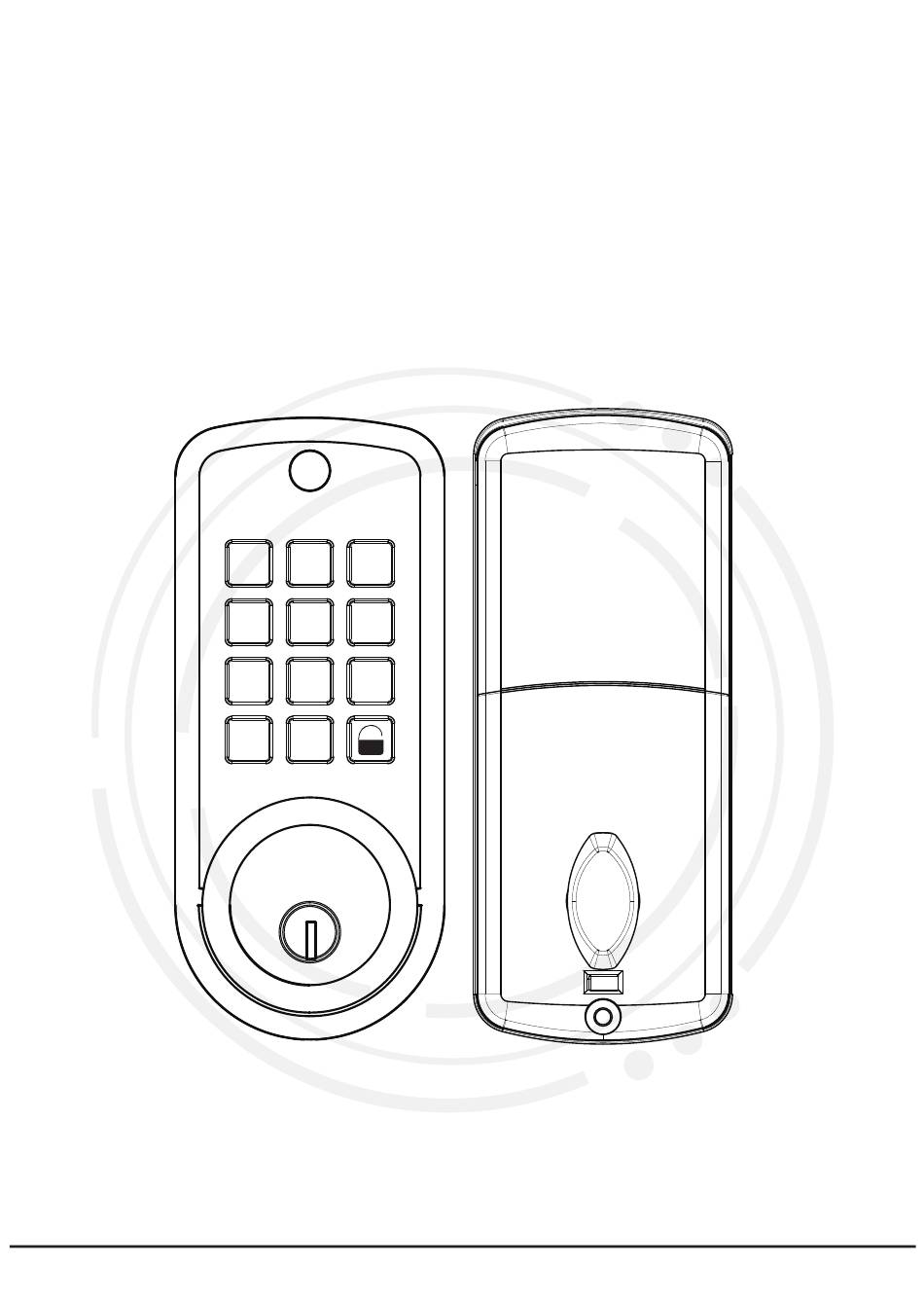

Page 6: Product Profile
Notes The information presented serves only as a reference. 1. This lock is equipped with mechanical keys for manual unlocking. Remove mechanical keys from the package and keep them in a safe place and always have access to them. 2. To power on the lock, four alkaline AA batteries(not included) are required. Non-alka- line and rechargeable batteries ARE NOT RECOMMENDED. - Page 7 Specifications Zinc Alloy Model NO. S110M Material Door thickness 38mm-48mm Code Length 4~12 digits Woring Temperature -20°C~70°C Working Humidity 20%~80%RH Working Power Consumtion ＜200mA Static Power Consumption ＜30uA Power Supply 6V (4pcs AA Alkaline Batteries not included) Unlocking Methods Passcode 、 Mechanical Key User Capacity 10 code users 60(W) x 137(H) x 25(D) mm...
- Page 8 2.LOCK Press the lock key and it will automatically close the lock. Privacy Lock out Mode: There is also a black color button under the knob of back panel, which is a privacy lock out mode, which essentially is a "do not disturb" mode,this will make the lock no longer accept pin codes except for mechanical key.
- Page 9 3.2. Delete existing user code Enter the code that Enter the you want delete programming code Press the “2” key 3.3. Delete all user codes Enter the Enter the programming code programming code Press the “3” key 3.4. Change the programming code Repeat the Enter the Enter the new...
- Page 10 3.6. Cancel automatic closing Enter the Note:You can cancel programming code any of the processes by pressing the key. Press the “9” key 4. RESET To return the door lock to the factory default values and codes, choose one of the follow- ing methods: 4.1.
