Multplx J-PLUG SPLITTER 2 Manual

Pendant J-Plug Splitter 2
3
. Connect the Standard, Boost or Boost plus
power cable to Splitter Puck connection.
On connection there will be a red LED
followed by a 'beep'.
3
.
Connect the power and alarm cable.
security.multplx.com

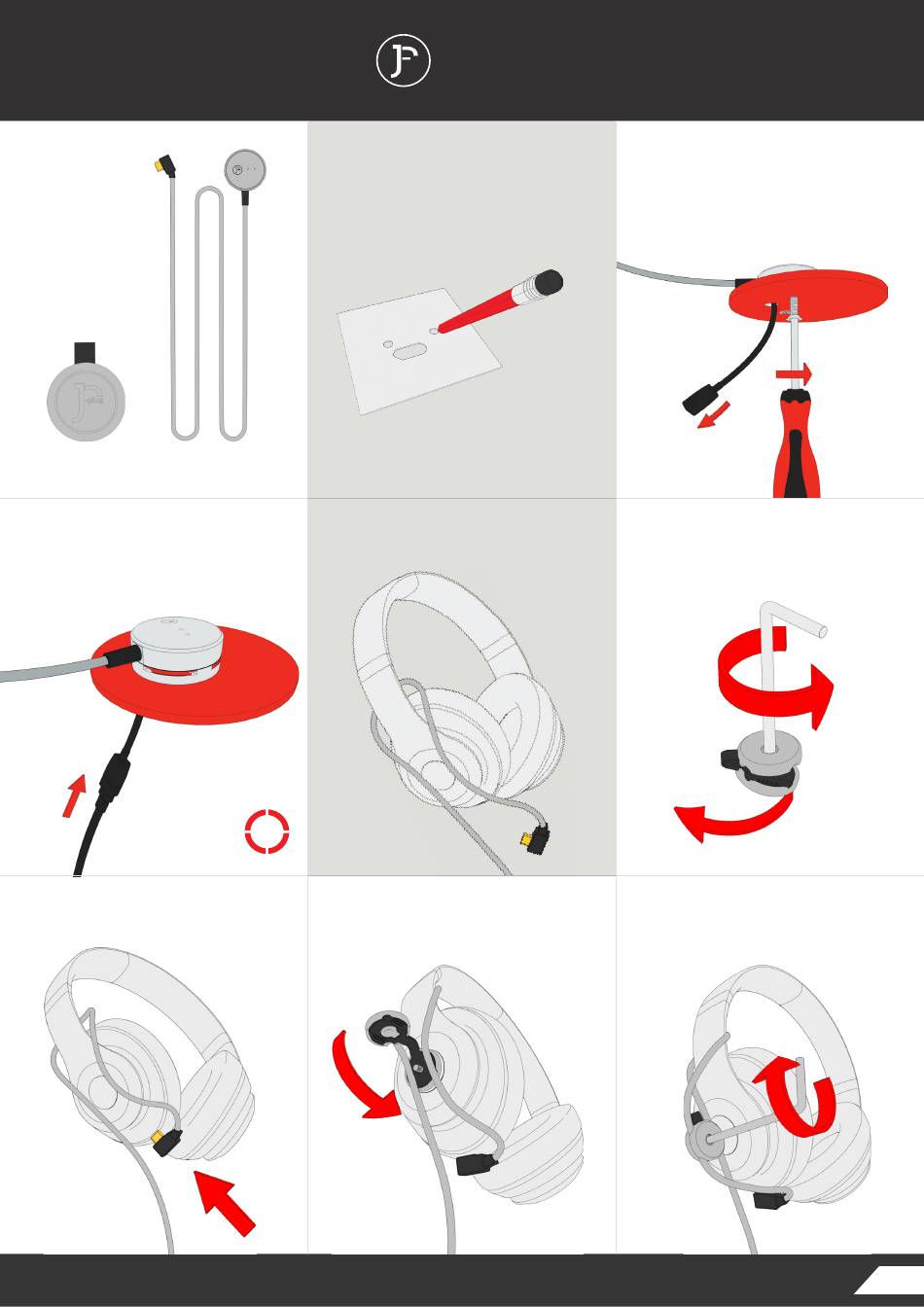

TO INSTALL: SPLITTER PUCK
1
a. Use the Drilling Template to mark out the
mounting hole (1) along with the
power cable slot (2).
b. Carefully drill and cut-out the marked
mounting points.
1
1 2
TO INSTALL: SPLITTER 2
1
.
Loop cable around the product.
LED
4
.
Attach the Pendant to the cable
and close the Pendant with the J-Plug
logo facing you.
SPLITTER 2
When using adhesive only
drill power cable slot (2)
2
a. Slide the power cable into the power cable
cut-out slot and align the Splitter Puck
over the mounting holes.
b. Screw in the two M5 Screws (not included).
a
2
a. Using the Tetrakey rotate anti-clockwise
to release the Pendant.
b.
Lift and open the Pendant.
b
5
. Using the Tetrakey screw clockwise to
secure the Pendant.
b
a
