Summary of Contents for AIR RIDE PRO

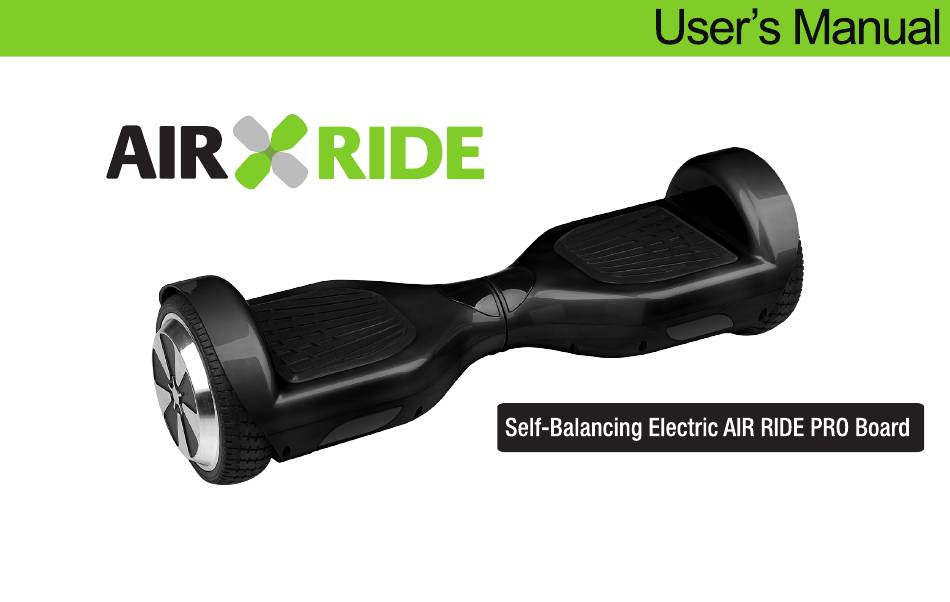

- Page 1 Thank you for your purchase of the Self-Balancing Electric AIR RIDE PRO Board. To ensure your safety and the safety of others, please read and follow these instructions in full. Recommended for ages 15 & up...
- Page 2 AIR RIDE requires valid documented Proof of Purchase (receipt from retailer) in order to obtain warranty services. If this product fails during the 12 month limited warranty period, AIR RIDE reserves the right to repair or replace any parts or products that are determined to be defective due to workmanship or material.
- Page 3 The risk of using Self-Balancing Electric AIR RIDE PRO Board The Self-Balancing Electric AIR RIDE PRO Board is a self-balancing smart transportation and recreational device. It has gone through rigorous testing to ensure its safety. However, if you don’t follow the instructions in the manual, you may be injured.

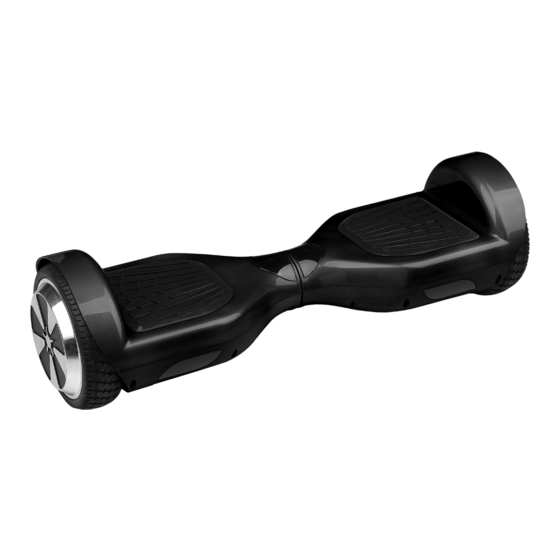

- Page 4 Description of the Self-Balancing Electric AIR RIDE PRO Board The Self-Balancing Electric AIR RIDE PRO Board is a self-balancing vehicle which can go forwards and backwards. It’s steering and stopping are controlled by Dynamic Equilibrium. It is simple to operate,...
- Page 5 Hover-Way...
- Page 6 • The Self-Balancing Electric AIR RIDE PRO Board has an inertial dynamic stabilization system that keeps you upright. However, it will stop detecting you if you lean too far left or right or you take a foot off the board. Making sure you...
-
Page 7: Pedal Sensor
Pedal sensor The Self-Balancing Electric AIR RIDE PRO Board has 4 sensors below the pedals. When the operator steps on a pedal, the AIR RIDE PRO board will adjust itself to balance automatically. When riding the Self-Balancing Electric AIR RIDE PRO Board, you must make sure that you are touching the pedals. -
Page 8: Indicator Lights
Indicator lights The indicator lights are located in the middle of the Self-Balancing Electric AIR RIDE PRO Board. • Battery Indicator: A solid green light means the battery is fully charged. When the light starts to flash green,there is a 50% battery life remaining. - Page 9 Self-Balancing Electric AIR RIDE PRO Board. • Follow this User’s Manual to learn to ride the Self-Balancing Electric AIR RIDE PRO Board safely. We highly advise you read the manual carefully and in full, prior to the first time of use. Before riding, make sure the tires are undamaged and mechanical parts are not loose.
- Page 10 • Temperature: If the Self-Balancing Electric AIR RIDE PRO Board gets too hot or too cold, the driving distance will decrease. • Maintenance: If the Self-Balancing Electric AIR RIDE PRO Board is charged properly and the battery is kept in good condition, the driving distance will increase.
- Page 11 Step 4: Shift your weight to turn in the opposite direction. Putting more weight on your right foot will turn left, putting more weight on your left foot, turns right. Step 5: Before you get off, make sure that the Self-Balancing Electric AIR RIDE PRO Board has fully stopped. Then step off 1 foot at a time. Be very careful when stepping off this vehicle.
- Page 13 If your Self-Balancing Electric AIR RIDE PRO Board seems to pull to the left or right, you may need to recalibrate its sensors. The process requires two levels, available at any hardware store. Step 1: Start with the Self-Balancing Electric AIR RIDE PRO Board powered off.
-
Page 14: During Charging
Board will alert the operator. It will sound an alarm and light error indicator LEDs. • When you step on the Self-Balancing Electric AIR RIDE PRO Board the platform may tilt forwards or backwards up to 10 degrees. It will not function if it tilts greater than that. - Page 15 It can be unlocked by pressing the unlock button. When the battery has been depleted or an error alarm or indicator light goes off, please do NOT continue to drive the Self-Balancing Electric AIR RIDE PRO Board. The self- balancing may malfunction and the driver is likely to be harmed.
- Page 16 • Make sure your feet are always on the pedal. Taking your feet off Self-Balancing Electric AIR RIDE PRO Board while driving is extremely dangerous. • The Self-Balancing Electric AIR RIDE PRO Board can only be used by ONE PERSON at a time. Do not let two or more people ride it.
- Page 17 Be careful when riding backwards and turning. • The Self-Balancing Electric AIR RIDE PRO Board is not a medical mobility device. Be sure you are healthy enough to ride this vehicle.
- Page 18 • Do not let children and animals touch the battery. Before installing the battery, disconnect the charger. When charging, you may not operate the Self-Balancing Electric AIR RIDE PRO Board. • Batteries contain dangerous substances inside. Do not open the battery. Do not insert anything into the battery.
- Page 19 • Locate the charging port on the back of the Self-Balancing Electric AIR RIDE PRO Board. • Ensure the charging port is dry. • First plug the charger into the wall (100V-240V; 50,60Hz). Verify the green light lights up, then plug the other end of the charger into the Self-Balancing Electric AIR RIDE PRO Board.
-
Page 20: Battery Temperature
Battery temperature • If you want the Self-Balancing Electric AIR RIDE PRO Board to operate efficiently, battery temperature must be within the following range. • The temperature before and while charging must be within the recommended value. The charging efficiency is the highest when the battery is near the recommended temperature. - Page 22 • Wipe the outer shell of the Self-Balancing Electric AIR RIDE PRO Board with a soft, dry cloth. • Do not let water or liquids get into the Self-Balancing Electric AIR RIDE PRO Board. It will cause permanent damage to the internal electronics.
-
Page 24: Specifications
Specifications Name Parameter Comments Net Weight 22 LBS Minimum Load 44 LBS 264 LBS Maximum Load 7.5 mph (12 km/h) Distance varies depending on terrain, driving style and load. Maximum Speed Range Per Charge 9.3-12.4 MI Depending on load Climbing Capacity 30°... - Page 25 Packing List Name Quantity Charger Manual Have a Safe, Fun Ride!
- Page 27 AIR RIDE PRO to travel on its own, risking running into a person or property and causing injury or damage. • Never step off of the AIR RIDE PRO when it is in motion. If you step off of the AIR RIDE PRO while in motion, you risk injury to yourself, others, and damage to the AIR RIDE PRO.
- Page 28 Self-Balancing Electric AIR RIDE PRO Board...
