Advertisement
✔ Press the button here to active the BT
advertising. The corresponding green led will
blink.
✔ Place the weather station on the car
rooftop or externally on other vehicles (see
installation guidelines at page x)
✔ ATTENTION:
make sure that the
conditions for a safe installation are met
(see page 2).
If not, do not use the mini-
station on moving vehicles
✔ Enjoy your MeteoTracker session by
starting data acquisition withthe MeteoTracker
App
✔ Visualize your sessions in the "My sessions" list of the MeteoTracker App or go to
to
http://app.meteotracker.com/#!/en
���� FOR DETAILS SEE THE FOLLOWING PAGES ����

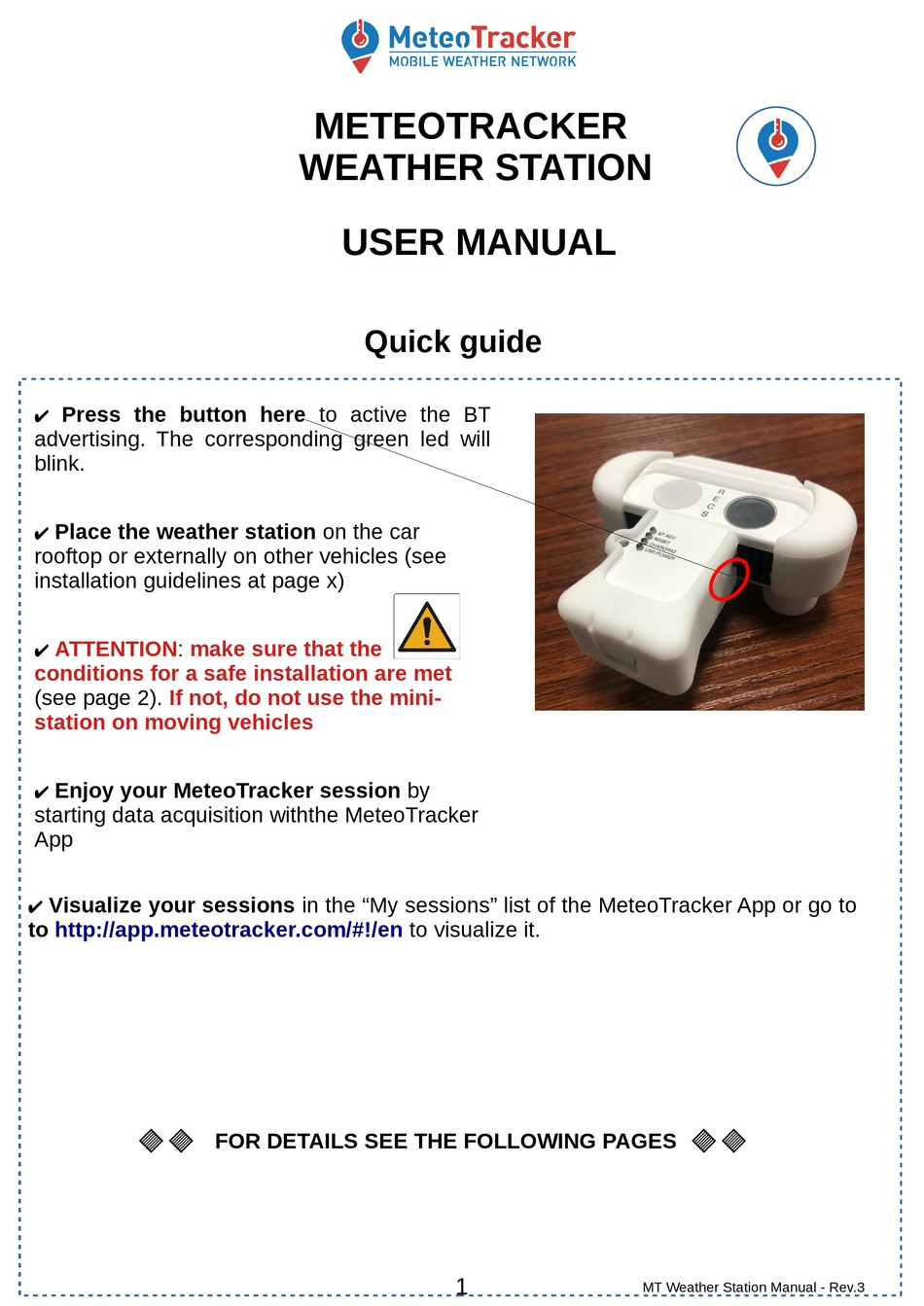

METEOTRACKER
WEATHER STATION
USER MANUAL
Quick guide
to visualize it.
1
MT Weather Station Manual - Rev.3
Advertisement
Table of Contents
Related Manuals for METEOTRACKER MT01
Summary of Contents for METEOTRACKER MT01
- Page 1 ✔ Enjoy your MeteoTracker session by starting data acquisition withthe MeteoTracker ✔ Visualize your sessions in the “My sessions” list of the MeteoTracker App or go to http://app.meteotracker.com/#!/en to visualize it. ���� FOR DETAILS SEE THE FOLLOWING PAGES ����...
- Page 2 Installation The mini-station is provided with a 3-magnets base for installation on ferromagnetic surface, like car rooftop. Guideline: ✔ place the mini-station so that the air flow enters the two openings in front of the device. Keep the frontal openings perpendicular to the air flow ✔...
- Page 3 Device status (LED signalling) Reset (keep the Bluetooth Adv button pressed advertising ON for more than 10 seconds) Charging ongoing Power source OK Battery charging ✔ Open the USB-C port in the rear of the device ✔ Attach the battery charger through a USB- C cable ✔...
- Page 4 Technical specifications and features (1/2) �� SAMPLING FREQUENCY 1 sample per second �� CONNECTIVITY Bluetooth Low Energy • Cellular by smartphone (Smartphone version) • Cellular by cellular module (Standalone version) • �� POWER AND INSTALLATION Battery life: 250+ hours (rechargeable, 200 mAh) •...
- Page 5 ✔ Json format for visualization on third parties visualization �� CERTIFICATION CE (granted), FCC, IC and BT (ongoing) • IP grade: water-resistant • References www.meteotracker.com (new web site soon) ✔ facebook.com/meteotracker ✔ www.linkedin.com/showcase/meteotracker ✔ email: meteotracker@meteotracker.com ✔ www.youtube.com/channel/UCioWABj-yL-FeRkACVpjTmQ/videos ✔ MT Weather Station Manual - Rev.3...
