Summary of Contents for eTORK QuadTork Torque

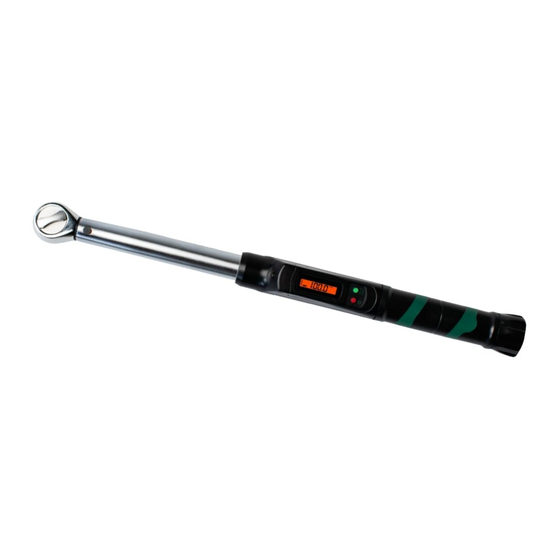

- Page 1 INSTRUCTIONS eTORK QuadTork Torque Wrenches with Electronic Digital Display www.etork.com...
- Page 2 READ BEFORE YOU USE This torque wrench is a precision instrument intended to be used only to tighten screws, bolts and nuts to a desired torque. Do not use it as a "nut breaker", pry bar, or in lieu of a regular ratchet. 2.
- Page 3 45-tooth reversible ratchet: wrench torques in both clockwise and counterclockwise direction Hardened alloy steel housing Battery isolation plastic tab: Pull out and discard to engage the battery (New wrenches only!) Battery compartment (2 X LR44) EASY TO READ SCALES: ft.lb Foot Pounds Inch Pounds in.lb...
- Page 4 BATTERY STRENGTH INDICATOR New battery, about 30 hours remaining. About 10 hours remaining. Wrench can not operate.Insert two new LR44 or equivalent (AG13,357,SR44,A76,LR1154) batteries. Make sure the "-" ends are toward the spring. To optimize battery life, do not use backlight, and remove batteries when the wrench is not used for prolonged periods.
- Page 5 USE OF ATTACHMENTS 1. Attachments that put the center of the fastener being tightened away from the centerline of the ratchet drive, result in the effective torque being different from the one shown on the wrench. Consequently, the torque set on the wrench must be corrected using the formula shown.
- Page 6 APPLYING TORQUE 1. Insert an appropriate socket or drive attachment onto the square drive of the ratchet and onto the fastener you want to tighten. 2. Apply hand pressure to the grip, and ONLY TO THE GRIP. You may support the wrench at the ratchet head with the other hand to steady it, especially when using long socket extensions, without appreciably affecting the accuracy of the wrench.
- Page 7 Calibration is guaranteed for a period of one year from the date of purchase. This warranty excludes incidental and consequential damages, except as might be specifically required by law in some states. For warranty work, contact us at www.etork.com...
- Page 8 CERTIFICATION This torque wrench is certified to have been calibrated prior to shipment to the accuracy of +/- 3% in the clockwise direction, and +/- 6% in the counterclockwise direction OWNER'S INFORMATION Date Purchased: ___________________________ Place Purchased: ___________________________ Serial Number: ___________________________ NOTES and SERVICE RECORD: Copyright 2019-05-07...
