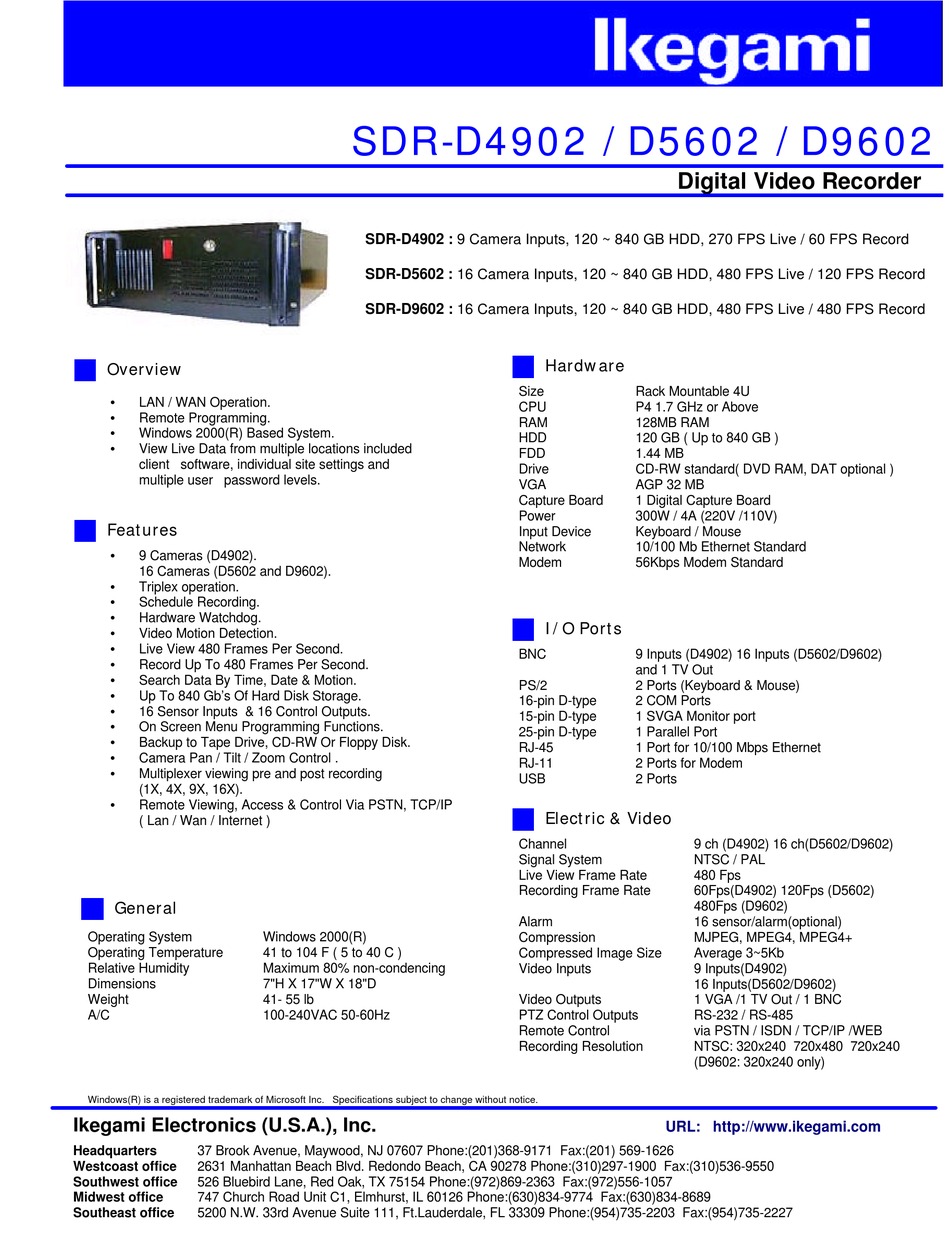

Ikegami SDR-D4902 Specification

Overview
Ÿ
LAN / WAN Operation.
Ÿ
Remote Programming.
Ÿ
Windows 2000(R) Based System.
Ÿ
View Live Data from multiple locations included
client software, individual site settings and
multiple user password levels.
Features
Ÿ
9 Cameras (D4902).
16 Cameras (D5602 and D9602).
Ÿ
Triplex operation.
Ÿ
Schedule Recording.
Ÿ
Hardware Watchdog.
Ÿ
Video Motion Detection.
Ÿ
Live View 480 Frames Per Second.
Ÿ
Record Up To 480 Frames Per Second.
Ÿ
Search Data By Time, Date & Motion.
Ÿ
Up To 840 Gb's Of Hard Disk Storage.
Ÿ
16 Sensor Inputs & 16 Control Outputs.
Ÿ
On Screen Menu Programming Functions.
Ÿ
Backup to Tape Drive, CD-RW Or Floppy Disk.
Ÿ
Camera Pan / Tilt / Zoom Control .
Ÿ
Multiplexer viewing pre and post recording
(1X, 4X, 9X, 16X).
Ÿ
Remote Viewing, Access & Control Via PSTN, TCP/IP
( Lan / Wan / Internet )
General
Operating System
Operating Temperature
Relative Humidity
Dimensions
Weight
A/C
Windows(R) is a registered trademark of Microsoft Inc. Specifications subject to change without notice.
Ikegami Electronics (U.S.A.), Inc.
Headquarters 37 Brook Avenue, Maywood, NJ 07607 Phone:(201)368-9171 Fax:(201) 569-1626
Westcoast office 2631 Manhattan Beach Blvd. Redondo Beach, CA 90278 Phone:(310)297-1900 Fax:(310)536-9550
Southwest office 526 Bluebird Lane, Red Oak, TX 75154 Phone:(972)869-2363 Fax:(972)556-1057
Midwest office 747 Church Road Unit C1, Elmhurst, IL 60126 Phone:(630)834-9774 Fax:(630)834-8689
Southeast office 5200 N.W. 33rd Avenue Suite 111, Ft.Lauderdale, FL 33309 Phone:(954)735-2203 Fax:(954)735-2227
SDR-D4902 / D5602 / D9602
SDR-D4902 : 9 Camera Inputs, 120 ~ 840 GB HDD, 270 FPS Live / 60 FPS Record
SDR-D5602 : 16 Camera Inputs, 120 ~ 840 GB HDD, 480 FPS Live / 120 FPS Record
SDR-D9602 : 16 Camera Inputs, 120 ~ 840 GB HDD, 480 FPS Live / 480 FPS Record
Windows 2000(R)
41 to 104 F ( 5 to 40 C )
Maximum 80% non-condencing
7"H X 17"W X 18"D
41- 55 lb
100-240VAC 50-60Hz

Digital Video Recorder

Hardware
Size Rack Mountable 4U
CPU P4 1.7 GHz or Above
RAM 128MB RAM
HDD 120 GB ( Up to 840 GB )
FDD 1.44 MB
Drive CD-RW standard( DVD RAM, DAT optional )
VGA AGP 32 MB
Capture Board 1 Digital Capture Board
Power 300W / 4A (220V /110V)
Input Device Keyboard / Mouse
Network 10/100 Mb Ethernet Standard
Modem 56Kbps Modem Standard
I/O Ports
BNC 9 Inputs (D4902) 16 Inputs (D5602/D9602)
and 1 TV Out
PS/2 2 Ports (Keyboard & Mouse)
16-pin D-type 2 COM Ports
15-pin D-type 1 SVGA Monitor port
25-pin D-type 1 Parallel Port
RJ-45 1 Port for 10/100 Mbps Ethernet
RJ-11 2 Ports for Modem
USB 2 Ports
Electric & Video
Channel 9 ch (D4902) 16 ch(D5602/D9602)
Signal System NTSC / PAL
Live View Frame Rate 480 Fps
Recording Frame Rate 60Fps(D4902) 120Fps (D5602)
480Fps (D9602)
Alarm 16 sensor/alarm(optional)
Compression MJPEG, MPEG4, MPEG4+
Compressed Image Size Average 3~5Kb
Video Inputs 9 Inputs(D4902)
16 Inputs(D5602/D9602)
Video Outputs 1 VGA /1 TV Out / 1 BNC
PTZ Control Outputs RS-232 / RS-485
Remote Control via PSTN / ISDN / TCP/IP /WEB
Recording Resolution NTSC: 320x240 720x480 720x240
(D9602: 320x240 only)
