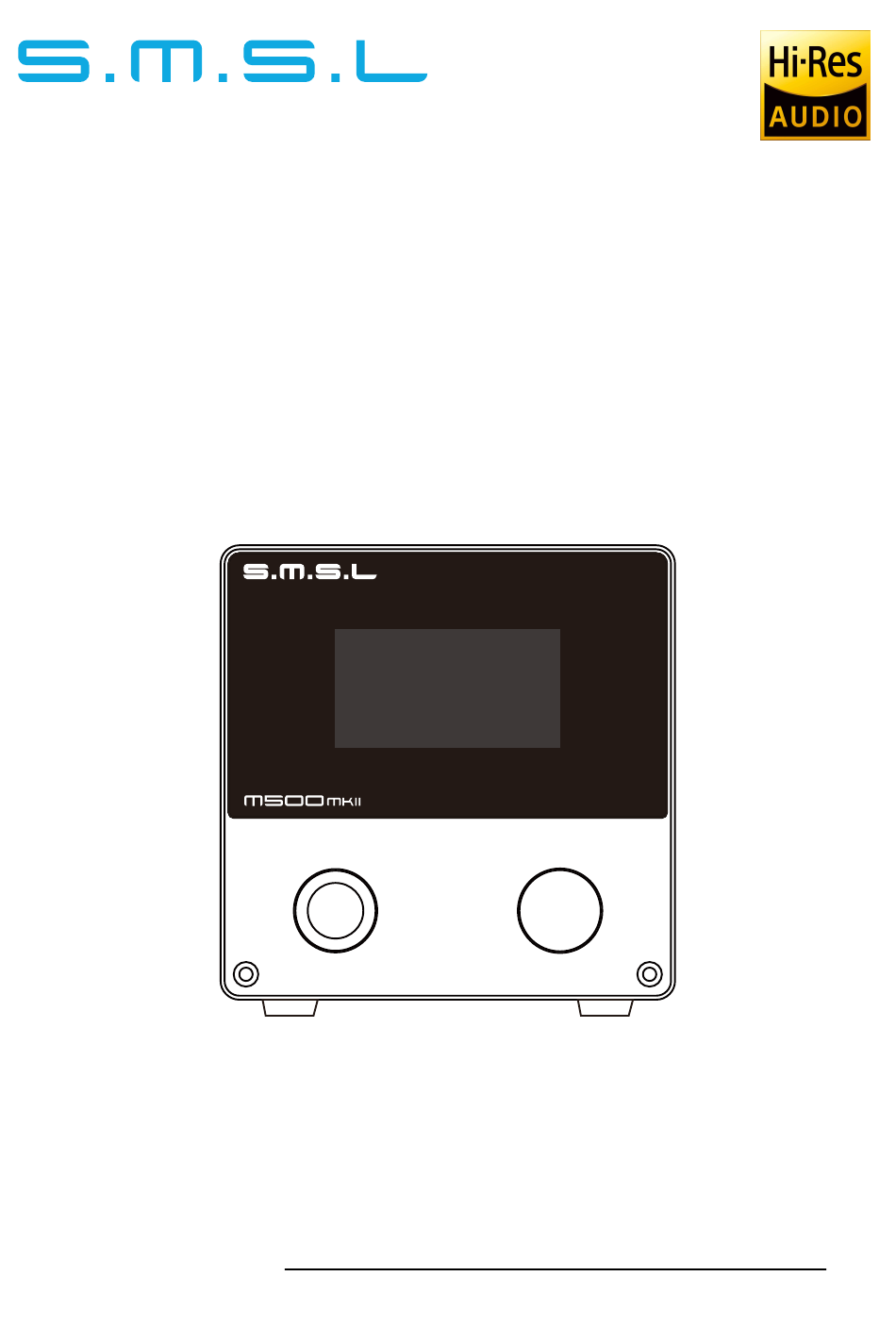

M5OO
MKII
使用说明书
本说明书的内容可能会随版本更改, 如有变动, 恕不另行通知,
如需最新说明, 请到https://smsl-audio.com/portal/product/support
下载最新版本的说明书。
Ver 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the M500 MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for S.M.S.L M500 MKII

  • Page 1 M5OO MKII 使用说明书 本说明书的内容可能会随版本更改, 如有变动, 恕不另行通知, 如需最新说明, 请到https://smsl-audio.com/portal/product/support 下载最新版本的说明书。 Ver 1.0...
  • Page 2 M5OO MKII 安全注意事项 请将本音响系统安装在通风良好、 阴凉、 干燥、 干净的位置, 远离直射阳光热源 、 振动、 灰尘、 潮湿或寒冷。 只能使用本机指定的电压。 使用高于指定数值的电压很危险, 而且可能导致火 灾, 损坏本机或造成人身伤害。 对于使用高于指定电压造成的任何损害, 我司 将不负任何责任。 不要试图自行改造或修理本机。 如果需要任何服务, 请与销售或者我司客服人 员联系。 不管有任何理由, 都没有打开机壳的必要。 如果打算长时间不使用本机 (比如度假时) , 请从墙壁交流电源插座上断开电 源线的连接。 重要提示: 本说明书所提到的产品规格和资讯仅供参考。 如有内容更新, 恕不另行通知。 保修条款 一、 服务期限 佛山双木三林科技有限公司承诺产品的良好品质, 产品自售出之后7天内 正常使用情况下出现故障,...
  • Page 3 M5OO MKII 特点 使用美国ESS公司高端ES9038PRO D/A芯片; 搭配使用ES9311, ESS高性能DAC专用电源芯片ES9311, 电源噪声低至1uVrms. 第三代ES9038PRO电路设计,失真度低至惊人的-123dB, 并且更加稳定; 全新的PLFC耳放电路,使得耳放在16欧负载下依然可以获得超过2W的输出功率 和低于-120dB的失真度! 全新自主研发的CK-02时钟处理电路, 大大降低时钟抖动; USB使用XMOS XU-216, 真正的32bit USB方案, 支持DoP和原生DSD, PCM最高支持到768kHz, DSD支持到DSD512; USB、 光纤、 同轴支持DSD传输, 同轴和光纤支持DOP64; 使用钢化玻璃显示面板, 更高的透光率, 更长的使用寿命; 内置带屏蔽, 低噪声电源处理, 同时提高电源效率, 功耗更低; 特别设计的分立元件线性稳压电源和多个低噪声稳压电源, 为模拟电路提供 低噪声电源; 高通最新蓝牙支持LDAC, APTX/HD, SBC, AAC; 高品质镀金输入输出连接端子; 使用3颗高端双运放OPA1612及大量发烧元器件;...
  • Page 4 M5OO MKII 技术参数 输入方式 ...................USB /光纤/同轴/蓝牙 输出方式 ..............单端耳放/单端线路/平衡线路 THD+N .................0.00006%(-123dB)(UN-WTD) HPA THD+N..............0.0001%(-120dB)(UN-WTD) 耳放输出功率....................2Wx2(16Ω) 1Wx2(32Ω) 耳放增益控制 ..................低增益 高增益 +9dB 动态范围 ....................131dB(XLR) 126dB(RCA) 信噪比 ......................131dB(XLR) 126dB(RCA) USB传输方式 ..................USB2.0异步传输 USB兼容性 ..........Windows 7 / 8 / 8.1 / 10 / 11(需要驱动) Mac OSX10.6以上、Linux(不需要驱动) MQA decoder...................USB / 光纤...
  • Page 5 M5OO MKII 关于遥控器 如果遥控器距离本机很近时操作仍无效, 请用新电池更换。 如果要长时间不使用遥控器, 请取出遥控器的电池。 按照电池处置的地方性法规处置废旧电池。 遥控器的使用 开关机 向上 进入菜单/确认 进入二级菜单 返回 向下 输入选择 静音 FN按键 (在菜单中定义) 音量加 音量减 注 意 遥控器请使用2节7号(AAA)电池...
  • Page 6 旋钮: 音量加减, 菜单切换, 功能选择。 按键: 短按, 进入菜单, 确认; 长按, 退出菜单, 开关机。 蓝牙操作说明 连接: 将输入源切换至蓝牙, 打开手机蓝牙功能, 搜索"SMSL M500 MKII", 搜索 到后点击配对连接, 当手机显示 “已连接” 则已连接成功。 重连: 在使用蓝牙过程中, 如果失去连接, 例如: 外出, 然后回来, 有些手机不会 自动重新连接, 在这个时候, 短按遥控器上的蓝牙按键就可以重新连接。 清除配对: 蓝牙输入状态下, 长按FN键。 在清除配对后, 部分手机可能会出现无 法再搜索到"SMSL M500 MKII", 此时需要将手机保存的蓝牙设备"SMSL M500 MKII"删除掉,...
  • Page 7 M5OO MKII 功能介绍 NPUT (输入方式) USB AUDIO (USB输入) OPTICAL (光纤输入) COAXIAL (同轴输入) BLUETOOTH(蓝牙输入) PUTS (输出方式) XLR+RCA(全部输出) (耳机输出) (平衡输出) (单端线路输出) GAIN (增益菜单) (+ 0dB) HIGH (+ 9dB) PCM FILTER (PCM滤波器) (快速滚降, 线性相位滤波器) Fast Linear (慢滚降, 线性相位滤波器) Slow Linear (快速滚降, 最小相位滤波器) Fast Minimum Slow Minimum (慢滚降,...
  • Page 8 Fast Linear Slow Linear Fast Minimum Slow Minimum Fast Hybrid Apodizing Brickwall DSD FILTER (DSD滤波器) DSD总共有4种数字滤波方式, 它的作用是数字运算的方式把音频外的杂波过滤掉, 分别为: ( 47kHz 频率截止) 47kHz Cutoff ( 50kHz 频率截止) 50kHz Cutoff ( 60kHz 频率截止) 60kHz Cutoff ( 70kHz 频率截止) 70kHz Cutoff SOUND COLOR(音色菜单) 本机总共有9种音色模式,...
  • Page 9 M5OO MKII 功能介绍 PRE MODE(前级模式) PRE MODE为输出接口的音量调节功能开关: Vol Fixed:输出接口音量是固定的。 Vol Variable:输出接口音量是受控的。 设置) DPLL DPLL MIN ~ MAX (共15种, 默认为7。 数字越大适应抖动的范围越强, 数字越小抗时钟抖动的性能 越好。 ) 这个DPLL设定是ESS系列产品特有的功能, 它可以调整芯片内部DPLL数字锁相环电 路的带宽, 使芯片在抗时钟抖动和输入宽容度之间达到一个平衡。 它的作用: 在输入信号的时钟稳定度好的情况, 可以减小这个值, 这样系统的时钟性能更佳; 在输入信号的时钟稳定度不好的情况下, 声音有可能会有中断的现象, 增大这个 值可以避免声音中断现象的发生! 特别是使用电视作为信号源时。 SPDIF MODE (处理器模式) 这个设定仅对光纤和同轴这两个使用SPDIF协议的接口有效; NORMAL (普通模式) NORMAL模式, 仅使用数字接收芯片对SPDIF信号进行处理, 使用于大部分场合,...
  • Page 10 M5OO MKII 功能介绍 自动熄屏 DIMMER 5秒 ~ 60秒 (范围5秒 - 60秒, 设置后, 屏会在这个时间内自动熄灭, 遥控或者旋钮任意操作屏幕 会重新点亮。 这样可以很大程度减少光污染, 提升听音环境的舒适性!) BRIGHTNESS (显示屏亮度设置) LEVEL 1 ~ LEVEL 6 RESET (系统复位) 在此界面下, 长按旋钮中键, 系统会重置所有设定,包括蓝牙配对状态.
  • Page 12 M5OO MKII USER MANUAL The contents of this manual may change with the version, if there is any change without notice, please go to https://www.smsl-audio.com/portal/product/support Download the latest version of the manual. Ver 1.0...
  • Page 13: Safety Notes

    Dismantling, refitting, repairing by user in private. Causing damage by using some fittings instead of the designative or accredited ones. Cannot provide credible proof of purchase. 4.Sending it back to our company for repairing. 5.Contact your S.M.S.L Audio reseller for a return or replacement.
  • Page 14 M5OO MKII Features The top performance D/A chip ES9038PRO from ESS Technology; The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms; The 3rd ES9038PRO circuit design has a surprisingly low distortion of -123dB and is more stable; The new PLFC headphone amplifier circuit enables the headphone to obtain more than 2Wrms output power and less than -120dB distortion under 16 Ω...
  • Page 15: Specifications

    M5OO MKII Specifications Input ............USB / Optical / Coaxial / Bluetooth Output ...............6.35 Phone Jack / RCA / XLR THD+N ............0.00006%(-123dB)(UN-WTD) HPA THD+N .............0.0001%(-120dB)(UN-WTD) HPA power ...............2Wx2(16Ω),1Wx2(32Ω) HPA gain ..............0dB(Low),+9dB(High) Dynamic range ............131dB(XLR),126dB(RCA) SNR .................131dB(XLR),126dB(RCA) USB Spec..............USB 2.0 Asynchronization USB compatibility ......Windows 7 / 8 / 8.1 / 10(Needs Driver) Mac OSX10.6 or Later、Linux(Driverless) MQA decoder ............
  • Page 16: Operating The Remote Control

    M5OO MKII Remote control Install 2 x AAA batteries as instructions. When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
  • Page 17 Clear pairing: In the Bluetooth input state, long press the FN button. After clearing the pairing, some phones may no longer be able to search for "SMSL M500 MKII". In this case, you need to delete the Bluetooth device "SMSL M500 MKII" which saved in the phone, and then search and pairing again.
  • Page 18 M5OO MKII Instructions NPUT USB AUDIO OPTICAL COAXIAL BLUETOOTH OUTPUT XLR+RCA GAIN (+0dB) HIGH (+9dB) PCM FILTER Fast Linear Slow Linear Fast Minimum Slow Minimum Fast Hybrid Apodizing Brickwall...
  • Page 19 50kHz Cutoff 60kHz Cutoff 70kHz Cutoff SOUND COLOR There are 9 sound color settings in M500 MKII. Rich1、 Rich2、 Rich3 Tube1、 Tube2、 Tube3 Crystal1、 Crystal2、 Crystal3 This setting is usingthe DSP of ES9038PRO,to make some different sound color, all of these settings will not change the frequency res ponse curve.When set to "Standard",...
  • Page 20: Normal Mode

    PRE MODE Volume control enable or disable. Vol Fixed : In this mode, volume is fixed on max output level, and the M500 MKII will ignore the volume operations. Vol Variable: In this mode, volume can be adjust by remote controller, and make M500 MKII a pre-amplifier.
  • Page 21 M5OO MKII Instructions DIMMER 5 second ~ 60 second (The range is 5 seconds-60 seconds. After setting, the screen will automatically go off within this time, and the screen will re-light up if you operate the remote control or the knob at any time.) BRIGHTNESS LEVEL 1 ~ LEVEL 6...
