Summary of Contents for iNsightFPV TD 3.0

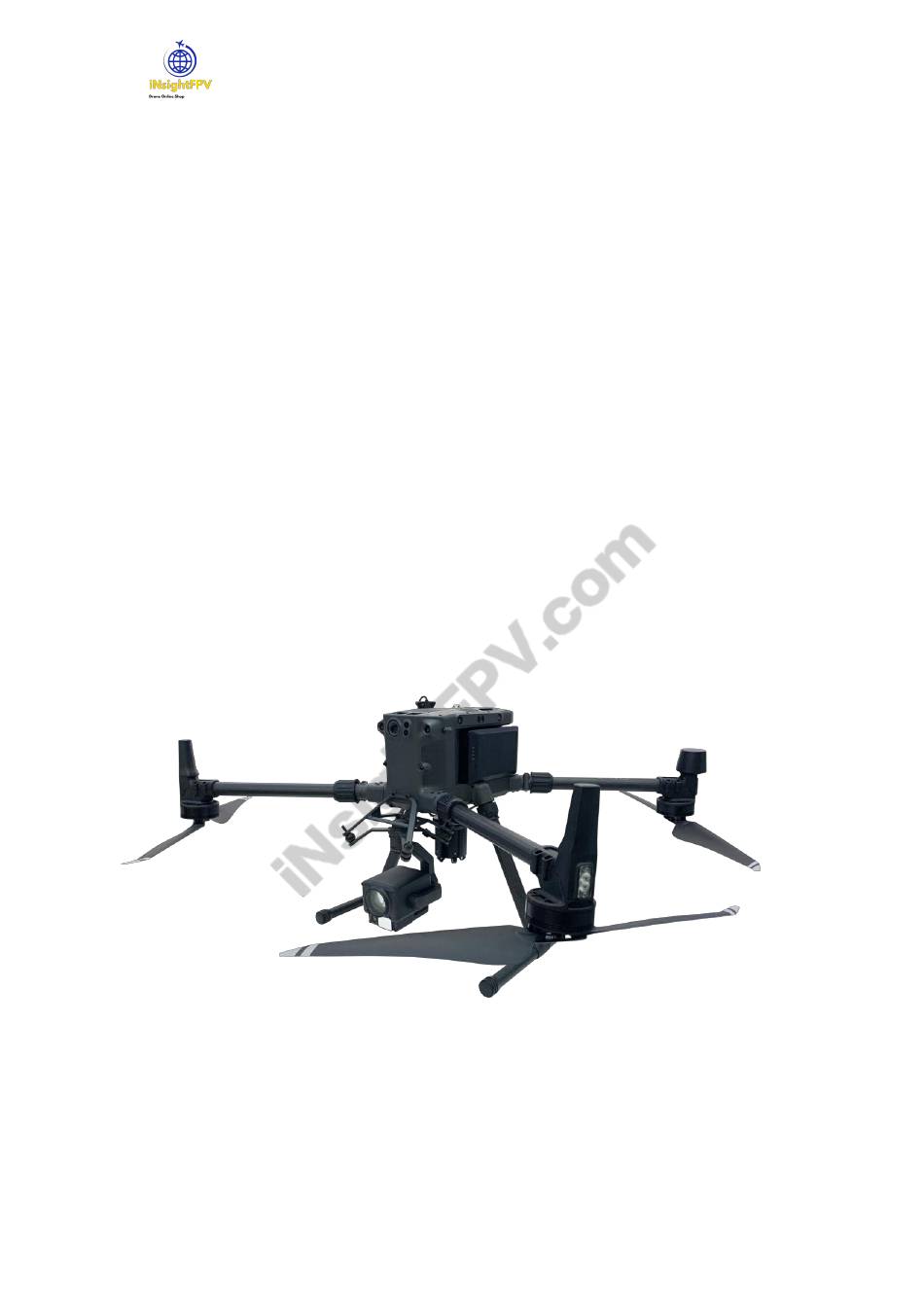

- Page 1 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com TD 3.0 dropper instruction manual...
- Page 2 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Contents I. Product description II. Installation and setup operations III. How to use IV. Technical parameters V. Warranty service...
- Page 3 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com I. Product introduction This product is a five-segment drone aerial device developed based on DJI OSDK. Its advantage is that the OSDK communication control does not occupy the gimbal interface, so customers can use it without purchasing a dual gimbal kit.
- Page 4 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com II. Installation and setup operations 2.1 Hardware Installation The following items need to be prepared prior to installing and setting up for use. M300RTK drone, remote control, computer, type-c cable, quick release mount, five- segment dropper, dedicated OSDK connection cable, TF card with APP installation package.
- Page 5 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Install the five-segment drop into the quick release hanger bay, align and push in, and when you hear a click to indicate locking, you can shake the drop to verify that it is...
- Page 6 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com 2.2 Computer Configuration Drone Setup Plug the USB end of the type-c cable into the USB porton your computer and the type-c connector end into the tuning reference connector on the top right side of the drone.
- Page 7 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com...
- Page 8 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Double click on the downloaded installer, click OK, I accept the agreement, next, next, install, click end.
- Page 9 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com...
- Page 10 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Click User Login, make sure your computer is connected to the Internet, enter your DJI account, password, and verification code, click I have read and agree, and click Login.
- Page 11 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Power on the drone, start it up and observe the software interface, click on the M300 icon, enter and wait for the firmware version to refresh, if the firmware version is not the latest, please upgrade to the latest version.
- Page 12 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com 2.3 Data Cable Link Plug the body end of the dedicated connection cable, into the OSDK connector on the top of the drone, note that there is a directional requirement, single slot for...
- Page 13 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com 2.4 Remote Control Software Installation Insert the TF card with the APP installation package into the TF card slot of the remote control, paying attention to the installation direction and pressing it into...
- Page 14 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Power on the remote control, start it up and connect it to a reliable WIFI or cell phone hotspot. Then click the menu icon in the bottom right corner, click File Manager, click SD...
- Page 15 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Click Install, wait for the installation to complete, the Get Permissions screen will pop up, click Allow All to complete the installation process.
- Page 16 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com...
- Page 17 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com Then turn on the power of the drone, wait for the drone and the remote control to connect normally, after the login button changes color, click the login button, enter the APP, and the installation and setup is completed.
- Page 18 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com...
- Page 19 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com When the camera is vertical to the ground, tap the SW1 icon on the left side of the APP to start dropping items when you fly above the mission target. After returning to the takeoff point, you can use the physical button to mount a new drop item, or use the SW1 icon in the APP interface to control the opening of the drop claw.
- Page 20 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com IV. Technical parameters TD 3.0 5-stage dropper Product Size 62mm*62mm*92mm outer packaging box 252mm*217mm*121mm weight 295g Electrical Interface OSDK rating Supply voltage Type-c port input voltage 5~24V Control method...
- Page 21 More drone products, please Visit insightfpv.com More drone products, please Visit insightfpv.com V. Warranty service In order to obtain better repair and warranty service, when you need warranty service, please return the product or damaged parts, pack it carefully, and provide proof of when and where you purchased it.
