Summary of Contents for Alare Remiga 2
- Page 1 Alare Owner’s manual Remiga 2 loudspeaker system...
- Page 3 Dear Customer, We would like to thank you for choosing a pair of Alare speakers. Before connecting them to the amplifier and in order to reach the best result, please read this handbook. Remiga 2 loudspeakers are designed to immediately meet our customers’...
- Page 4 Accessories Accessory box (one box each loudspeakers pair) contains following items: • A) n. 4 jumpers for single wiring connection. • B) n. 8 steel leveling spikes. • C) n. 8 steel floor protection discs. • D) n. 8 steel tightening knobs. • E) n.
- Page 5 • Do not place connection cables in close proximity to electrical power cables. This can cause humming noise. • Remiga 2 loudspeaker system is intended for household use. They must not be used for high volume and continuous sound distribution as sound reinforcement. In this case, signal intensity is not compatible with correct operation of the system.
- Page 6 Remove wooden top and top foam pad. Locate Front panel is joined to crating by a nylon strap. Attention, other wooden panels are free front panel and open it. Two or more people when clamps are removed. needed. Remove accessories box and its foam protection. Remove side and rear panels and foam pads.
- Page 7 Remove metal clamps from front wheels. Don’t Unscrew the four wooden blocks behind rear release wheels brakes off. wheels. Put wooden blocks under inclined panel as in Release all brakes off and carefully move speaker picture in order to avoid base bending. down the crating.
- Page 8 When in place, activate brakes on all wheels Unscrew the floating pair of wheels and sub- and tilt speaker pivoting it on a side wheel pair. stitute them with spikes at maximum thread Two or more people needed. length. Repeat this procedure on the other side. Once speaker is in place, level it acting on Make stiff speaker standing inserting knobs and spikes with provided T Allen wrench.
- Page 9 Positioning Loudspeakers positioning can affect the entire audio system performance in different ways. Rooms with irregular shape can improve the bass response since they limit the formation of stand- ing waves. From this point of view, a cube shaped room is the worse case for poor bass frequencies performances.
- Page 10 Cleaning and maintenance The loudspeakers do not require any particular maintenance operations, just general periodic cleaning. In order to preserve the loudspeakers finish, cover them with the supplied cover, espe- cially if the loudspeakers are not expected to be used for an extended period of time. Do not use products like waxes or detergents to clean the wood parts, as these could stain or damage the finish of speaker.
-
Page 11: Bi-Wiring Connection

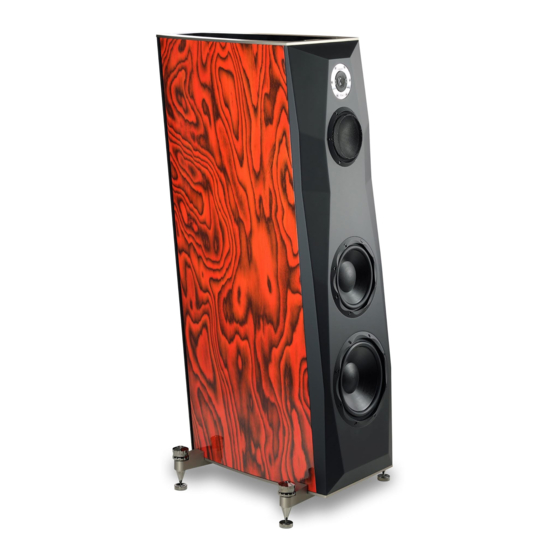

Bi-wiring connection This scheme allows the bipolar power cables, to be connected to the “Low” sections and the “Md- Hi” sections of the loudspeakers, to be duplicated. It consists in driving the loudspeakers with a sin- gle stereo amplifier, or with a pair of monophonic amplifiers, using separate bipolar power cables for each input section of the loudspeaker. - Page 12 Technical data Sistem: three way floor standing speaker. Bass loading: tapered transmission line. Woofers: 1 x 10” (250mm), 1 x 8” (200 mm) carbon sandwich cone. Midrange: 7” (170 mm) pure ceramic membrane. Tweeter: 1.2” (30 mm) pure diamond membrane. Crossover: silver plated solid copper point-to-point wiring.
- Page 13 Notes...
- Page 14 Alare Alare is a trademark of Audia snc Via Alfio Flores, 7 00053 Civitavecchia (RM) - Italy www.alare-labs.com info@alare-labs.com Made in Italy...
- Page 16 alare-labs.com...
