Installation Manual
Model Number: F-TEC3500EK
Model Number: F-TEC4000EK
Part Number: 100.000.069.S
Part Number: 100.000.077.S

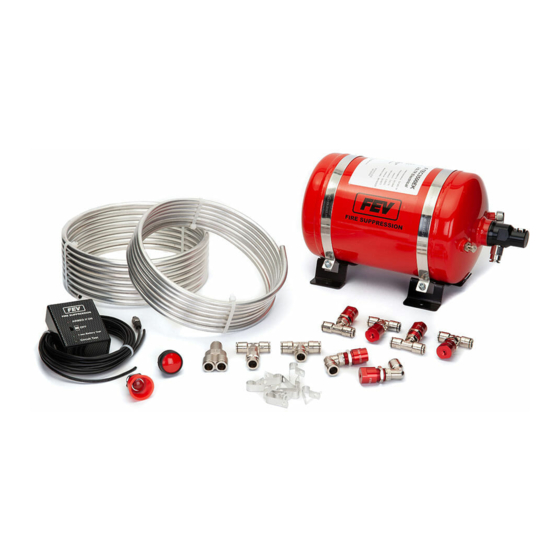

3.5ltr foam system with steel cylinder
4.0ltr foam system with steel cylinder
and electric activation
and electric activation
Updated May 2020
Advertisement
Summary of Contents for Fire Extinguisher Valve Company F-TEC3500EK
- Page 1 Fire suppression for all levels of racing and motorsport Photograph for illustration purposes Installation Manual Model Number: F-TEC3500EK Model Number: F-TEC4000EK Part Number: 100.000.069.S Part Number: 100.000.077.S 3.5ltr foam system with steel cylinder 4.0ltr foam system with steel cylinder and electric activation...
- Page 2 You will have to purchase a 9volt PP3 battery for the control box. If any changes have been made to this product from the original specification, it could in effect stop you racing. Page 2 | F-TEC3500EK / F-TEC4000EK Installation Manual | www.f-e-v.co.uk...
-
Page 3: Kit Contents
10mm to 8mm Swivel T Connector 100.900.041 10mm Metal Y Connector 100.900.035 Aluminium Tube Clips 8mm 100.800.011 Aluminium Tube Clips 10mm 100.800.011B Large ‘E’ Label 200.300.005 Small ‘E’ Label 200.300.005B Instruction www.f-e-v.co.uk | F-TEC3500EK / F-TEC4000EK Installation Manual | Page 3... -
Page 4: Installation Instructions
Apply a small E label adjacent to the internal fire button. Mount the external fire button on an outside panel through a 22mm hole, adjacent to the electrical cut off switch. Apply the large E label adjacent to the external fire button. Page 4 | F-TEC3500EK / F-TEC4000EK Installation Manual | www.f-e-v.co.uk... - Page 5 Cockpit Nozzle Positioning Diagrams www.f-e-v.co.uk | F-TEC3500EK / F-TEC4000EK Installation Manual | Page 5...
- Page 6 RED LED will stay ON. If either the wiring or firing detonator is faulty or the detonator is either not there or has already been fired, then the LED will not light. Page 6 | F-TEC3500EK / F-TEC4000EK Installation Manual | www.f-e-v.co.uk...
- Page 8 Fire Extinguisher Valve Company Ltd Unit B3 Ford Airfield Industrial Estate Ford, West Sussex. BN18 0HY Tel: 01243 555566 Email: sales@f-e-v.co.uk www.f-e-v.co.uk...
