USER TROUBLESHOOTING TIPS:
Notes
•
All acceptable buttons presses are signified by a green light.
•
Incomplete functions "time-out" after 4 seconds.
•
Errors and"time-outs" are signified by flashing red light.
•
Following an error or "time-out" limit reverts to previous settings.
Errors
•
Errors will time-out after 10 seconds.
•
Unfinished instructions will time-out after 10 seconds.
•
Always wait for LED lights to finish before pressing next key.
Battery Test
TO CHECK BATTERY LEVEL:
1.
Press the logo key at the top of the lock
2.
Press the logo key at the top of the lock again
** In PUBLIC Mode, battery test cannot be performed on a
lock that is in use (locked). Unlock before performing test.
1
continued, pg 2
Guide
L o c k
M odel SW3780

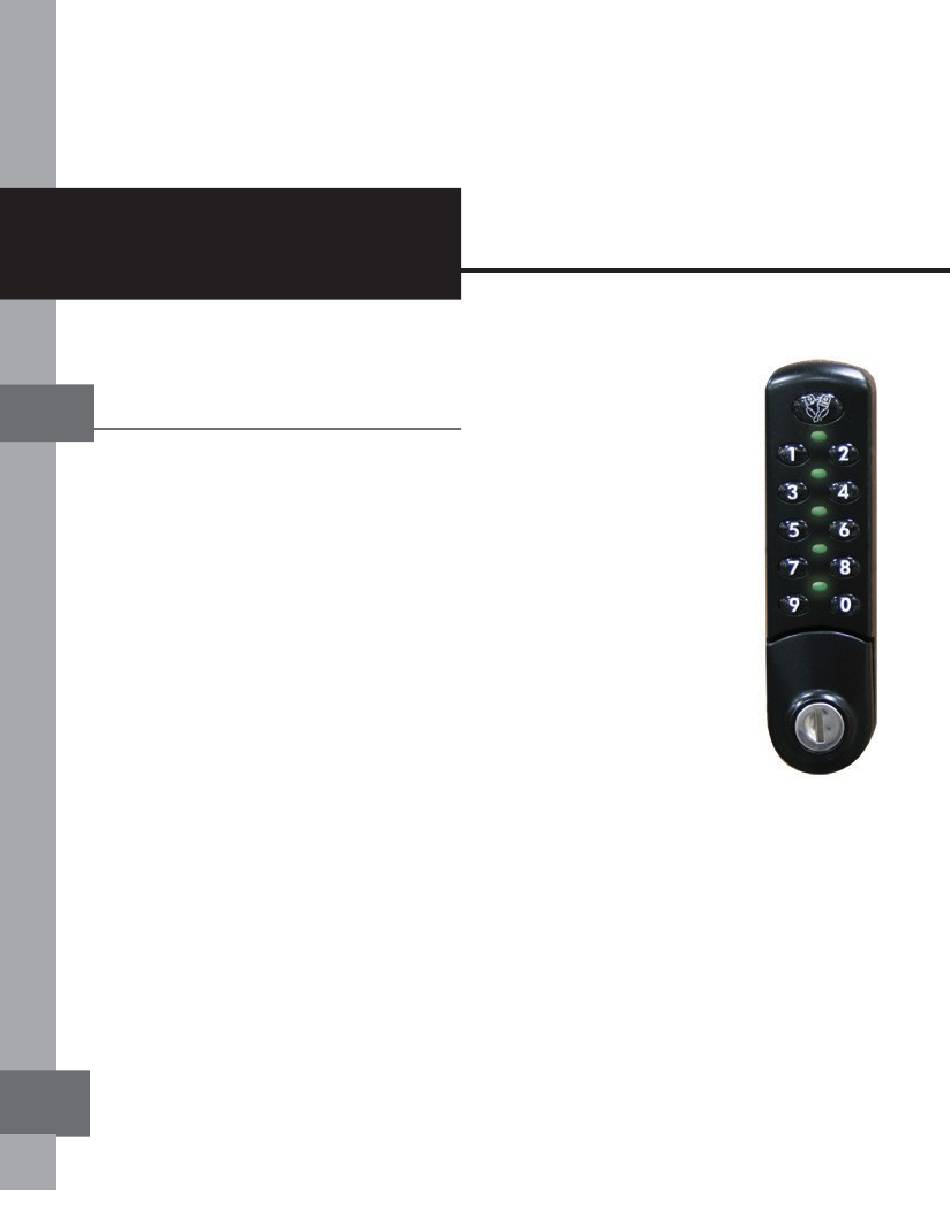

Elec tr onic Cam Lock
Logo Button
Battery Conditions Indicator
Four green lights
Three green lights
Two green lights
One green light
Red light - Change battery as soon as possible 1
Flashing red light prior to lock or unlock indicates low battery
voltage and batteries should be changed as soon as possible
1
A lock in use, when in PUBLIC Mode, will flash "RED" when tested.
Unlock, then test again.
→
=
excellent condition
=
very good condition
=
good condition
=
low
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for Statewide Office Furniture SW3780
- Page 1 Operator’s Guide L o c k M odel SW3780 Elec tr onic Cam Lock → Logo Button USER TROUBLESHOOTING TIPS: Notes • All acceptable buttons presses are signified by a green light. • Incomplete functions “time-out” after 4 seconds. •...
- Page 2 Operator’s Guide Model SW3780 Continued Public Shared Use Lockers ** When in use, the lock with FLASH “Red” once every ten seconds. TO LOCK: Select an open locker With the lock’s finger pull in the open position, close the door...
- Page 3 Troubleshooting Guide Ensure that you keep DEFAULT MASTER CODE (8 digits) DEFAULT USER CODE (4 digits) a safe record of your master code. It is not 1 1 3 3 5 5 7 7 2 2 4 4 possible to program the lock without it.
- Page 4 Troubleshooting Guide Lock Model 3780 Continued Public Shared Use Lockers ** When in use, the lock with FLASH “Red” once every ten seconds. TO LOCK: Select an open locker With the lock’s finger pull in the open position, close the door When the door closes, swing the finger pull to the vertical position to engage the lock Enter any four digit code into the keypad Re-enter the same four digit code to confirm...
- Page 5 Troubleshooting Guide Private Non-Shared Lockers TO LOCK: Select an open locker With the lock’s finger pull in the open position, close the door When the door closes, swing the finger pull to the vertical position to engage the lock Enter any four digit code into the keypad Re-enter the same four digit code to confirm The locker is now locked TO UNLOCK:...
- Page 6 Troubleshooting Guide Master Code Functions FUNCTION MODE KEY SEQUENCE NOTES PUBLIC PRIVATE Change Master Code [LOGO] [NEW MASTER CODE] Master Code is eight digits [OLD MASTER CODE] [NEW MASTER CODE] Change User Code [LOGO] [NEW USER CODE] User Code is four digits ...
- Page 7 Troubleshooting Guide Sub-Master Code Functions FUNCTION MODE KEY SEQUENCE NOTES PUBLIC PRIVATE Change User Code [LOGO] [SUB- [NEW USER CODE] User Code is four digits MASTER CODE] Change Sub-Master [LOGO] [SUB- [NEW SUB-MASTER CODE] Sub-Master Code is six digits Code MASTER CODE] Delete User Code...
