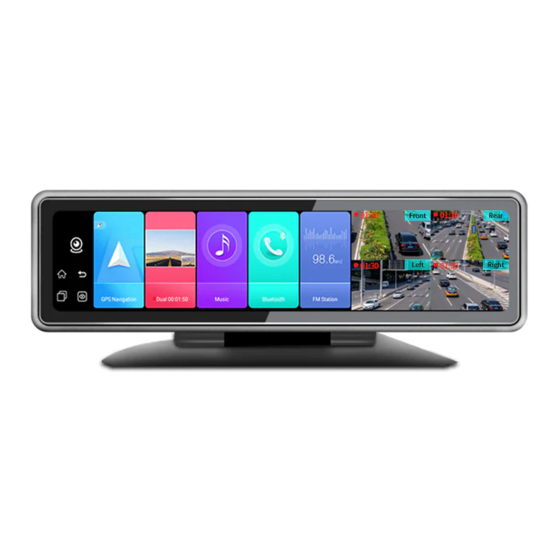

LiveEye 1-4 Cam Live Streaming 4G/WIFI Dash
Cam System - View 1 to 4 Cams from
1
2
DESCRIPTION
1
Screen Power Button
2
Installation Bracket
3
Touch Screen Monitor
4
DVR Menu
Power Button Functions:
Press one time: Monitor will turn off - system is still recording and time will be displayed.
Press twice: Monitor will turn off - system is still recording and time will not be displayed.
Press three times: Screen powers back on to see main menu/cameras.
How to Shut Down Monitor: Must disconnect power wire harness from direct power source.
If device detects low voltage, the device will automatically power down.
Device Icons: Connected to Internal hot spot / 4G Signal / GPS Signal / WIFI Signal / Bluetooth
IP Web Server for remote desktop/laptop viewing: Copy and paste IP Server link to your browser.
76.184.134.40:8080/808gps/login.html?
Enter username / Password that was included in package
Mobile App IOS / Android viewing: Download "CarAssist" App
Anywhere in the World
Quick Start Guide
3
4
5
4-CH Video Camera Showing
6
SIM Card & SD Card Lock
7
USB Port
8
SIM Card Slot
When entering into the Settings Menu, you must enter Password: 999999 (six nines)
5
9
10
6
Micro SD Card Slot
Tale Cable: 4-CH Video Input,Power cable,
Channels trigger cable etc
9
8
7
10
Advertisement
Summary of Contents for FalconEye Electronics LiveEye FELE4GCAM1
- Page 1 LiveEye 1-4 Cam Live Streaming 4G/WIFI Dash Cam System - View 1 to 4 Cams from Anywhere in the World Quick Start Guide DESCRIPTION Screen Power Button 4-CH Video Camera Showing Micro SD Card Slot Tale Cable: 4-CH Video Input,Power cable, Installation Bracket SIM Card &...
- Page 2 Monitor with DC power wire harness, Horizontal Installation Bracket x1PCS Vertical Installation Bracket x 1PCS and 4 camera cable connectors Micro SD card and sim card Sim Card Release Tool door lock x1PCS GPS Antena x1PCS Micro SD card and sim card door lock release Screw Driver x 1PCS Power Wire Connections The only way to fully power off device is to disconnect the power wire harness from the main power...
- Page 3 How to change/enter APN based on the mobile 4G service sim card that is inserted in device. STEP-01:Click Open “Settings”=> Enter Password: 999999 (six nines) => Other=>More STEP-02:Click “Network & Internet”=>Mobile Network STEP-03: Click “Advance”=>Click “Access Point Names”=> Edit APN of your 4G SIM Card=>Done APN GUIDE: T-Mobile: fast.t-mobile.com ATT: broadband...
