Summary of Contents for ELwell Air8
- Page 1 Integrated Air Conditioning Air Conditioning Unit Installation & Instruction Manual...

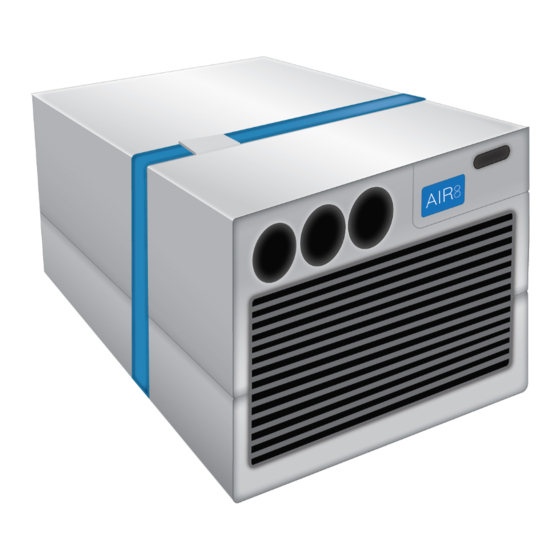

- Page 2 By Elwell Corp The Air8 air conditioning system is designed with maximum comfort and efficiency in mind, providing outstanding perfor- mance and a pleasant environment for the warmest of days. Cold air is circulated evenly throughout the interior of your living space thanks to a ducting system which minimizes hot spots and provides an even temperature through out.
-
Page 3: Table Of Contents
Table of Contents 1. GENERAL WARNING 1.1 Please read before using this manual 1.2 Safety instruction 2. SCOPE OF DELIVERY 3. TECHNICAL DATA 4. INSTALLATION DIMENSIONS 5. INSTALLATION INSTRUCTION 5.1 Installation location 5.2 How to install the AC unit 5.3 How to build the air duct 5.3.1 Cold air distribution 5.3.2 Circulated air return 5.4 How to install the wall pad... -
Page 4: General Warning
1. GENERAL WARNING 1.1 Please read before using this manual · Drilling new openings and inserting screws may damage either the refrigeration circuit or electrical · This manual is part of the product and should be wiring causing possible equipment damage, kept near the unit for easy and quick reference. -
Page 5: Technical Data
3. TECHNICAL DATA Energy Efficiency Rate Nomenclature Air8 Number of unit Air flow Max 220 CFM Power supply 115VAC±10%/60Hz Refrigerant R410A / 18 oz Norminal cooling Compressor oil / 6000 BTU VG68 / 8.5 Cu In capacity * Precharge Power consumption... -
Page 6: Installation Instruction
5. INSTALLATION INSTRUCTION The unit must be installed and serviced by an expert who has the appropriate knowledge and skill 5.1 INSTALLATION LOCATION The unit must always be installed where it is easy to The room air which has been cooled is drawn in again access at all times for service work, and also easy to from the vehicle interior by the unit via openings with a remove and install. -
Page 7: How To Install The Ac Unit
5.2 HOW TO INSTALL THE UNIT Seal connector (4) for condensation drain all round from Put the installation template in stowage box and fix in below using body sealant. right position. NOTE: When installing the unit, please ensure that Mark the mounting holes for the 2 brackets (2) and the 2 the connector (4) of the condensation drain has been side fasten brackets (3) located in the recess in the floor of the vehicle. -
Page 8: How To Build The Air Duct
5.3 HOW TO BUILD AIR DUCT (AIR DISTRIBUTION AND RETURN) 5.3.1 Cold Air Distribution 5.3.2 Circulated Air Return A cold air duct with a diameter of 2.5 inch and at least The circulated air is drawn in again by the unit, either one outlet must be connected to all three cold air via an additional rectangular air grille or via several outlets of the unit (7, 8, 9). -
Page 9: To Control Board Connection
5.5 POWER SUPPLY AND WALL PAD TO CONTROL BOARD CONNECTION NOTE!: The 115 VAC electrical connection must always An insulating device for providing all-pole insulation be made by an expert who has the corresponding from the mains with contact clearance of at least 0.14 license. -
Page 10: Wall Pad
6.1 WALL PAD Wall pad setting 2. If the timer is disable, the symbols zone will display --:-- Switching on / off 3. Press“ ” button to adjust date setting from Sun- Switch on the AC system by pressing the “Switch On day to Saturday, meanwhile “... -
Page 11: Alarm Code
6.2 ALARM CODE Alarm code Cause Return air sensor failure Coil sensor failure Compressor overload High pressure sensor trigger Wall pad and control board communication failure Coil frozen detected Discharge temperature sensor failure High discharge temperature Ducted. Quiet. Efficient. - Page 12 Elwell Corporation Tel: 360-608-0916 Email: info@elwellcorp.com 680-C South 28th St. Washougal, WA 98671...
