Summary of Contents for DDROBO W1

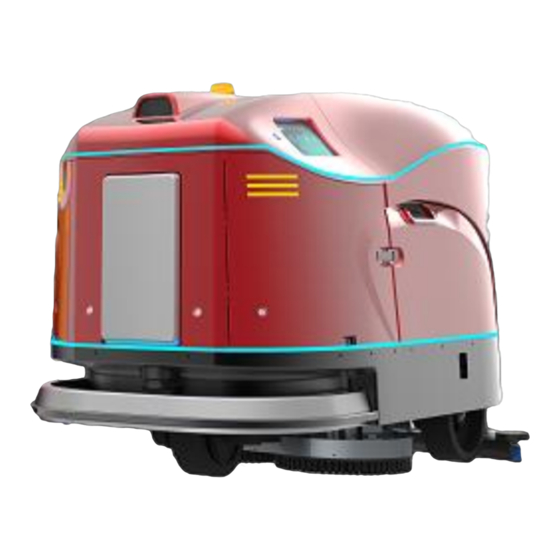

- Page 1 Quick Reference Guide DDROBO W1 Driverless Floor Scrubber...
- Page 2 This quick reference guide contains information on the daily operation and care of the DDROBO W1. Read it carefully and become familiar with its contents. It is distributed with the DDROBO W1 robot. Please keep this guide in a safe place. If...
- Page 3 USER CODE: ------------------------------------------------- Introduction DDROBO W1 is an intelligent robot that is suitable for large sites such as factories, garages, airports, and stations. It can continuously clean the ground for hours without driver. Applicable floor materials include tiles, marble tiles, mosaics, epoxy, terrazzo, and emery.
-
Page 4: User Account Management
User account management Each DDROBO W1 robot can be equipped with multiple administrators and multiple operators, and multiple users cannot log on at the same time on the robot. In order to facilitate statistics collection on the use of robots by operators of different shifts, the operator should log out. -
Page 5: Machine Images
Machine Images Warning Light Vision Sensor Turn Indicator Upper Impact Sensor Sonar Radar Lower Impact Sensor Emergency Stop Button Waste Water Tank Waste Water Tank Locker Sonar Turn Indicator Water Rake... - Page 6 Operation Screen Battery Bin On/Off Switch Water Fill Port Water Rake Drop Prevention Sensor Light Belt Disc Brush Emergency Stop Button Waste Water Tank Cover...
-
Page 7: Start Operation
Start operation Open the button cover, press and hold the button for 5 seconds and turn it on. When the battery is working properly, the power button will glow and self-reset. The start-up and self-test takes about 2 minutes. Shutdown operation Method 1 (soft shutdown): Click the "Shutdown"... -
Page 8: Emergency Stop
damage of electronic components inside the machine. It is not recommended to use it frequently. Emergency stop When the vehicle is running, Press the emergency stop button at the rear of the robot and you can stop it. When the emergency stop button is activated, all the motors of the whole vehicle are powered off and the electromagnetic brake disk is engaged. - Page 9 The maintenance personnel have independent login accounts and passwords. They do not have permission to add/delete users and administrators’ rights. To add or delete users, an administrator is required to log in; refer to the DDROBO W1 Management and Maintenance Manual. Start the cleaning task...
- Page 10 1. After the login is complete, click the "Go main task" button on the interface. The Map names usually use the The route names usually use the names such as “row and ailse” and “parking names such as "waiting hall 1F" and "B2 parking lot".etc.
- Page 11 amount of water, the speed of the cleaning, and the brush pressure. After the setting is completed, press the "Submit Task" button, the robot will automatically start the cleaning task after a few seconds. Start and stop cleaning tasks During the task , the interface will show the amount of electricity, water, waste water, and the completion progress.
- Page 12 greater than 90%, the task will be suspended automatically. When the task is paused, the robot automatically record and saves the progress of the current task; stops in place, stops spraying water, retracts the brushers and Squeegee. Modify the task General users don’t have permission to modify the task path.
- Page 13 not need to shut down; you can see the percentage of water in the clean water tank on the task running interface. Draining clean water After the cleaning task is finished and the fresh water is not used up, you can manually open the drain valve to drain the remaining water in the tank.
- Page 14 Draining waste water Open the rear cover, pull out the waste water pipe, and open the pipe cover. The waste water will automatically flow out. Clean waste water tank...
- Page 15 The waste water tank needs to be cleaned regularly so as to prevent the formation of mold and foul smell. Rotate the waste water tank cover to the right and pull it up to open the tank. The inner wall of the waste water tank can be flushed with tap water or scrubbed with a brush.
-
Page 16: Replacing The Brush
There are two plastic bolts to fix the water rake, you can loosen the two plastic bolts by hand. The water rake will fall off automatically. The squeegee should be checked regularly at least once a month. When the rubber of the water squeegee is seriously worn, it is necessary to replace the squeegee. -
Page 17: Charging And Replacing The Battery
Hold the brush on the brush plate with both hands, turn half a counterclockwise, the brush plate buckle will automatically loosen and the brush plate will fall off. When installing a new brush plate, hold the brush plate with both hands, align the buckle, and rotate 1~2 times clockwise. - Page 18 Open the battery compartment door and insert the charger plug into the charge receptacle on the right side of the battery. The charger will automatically start charging. It takes about 8 hours to fully charge. When the robot is not used for a long time, it must be ensured that it is charged once a month to prevent the battery from being damaged.
