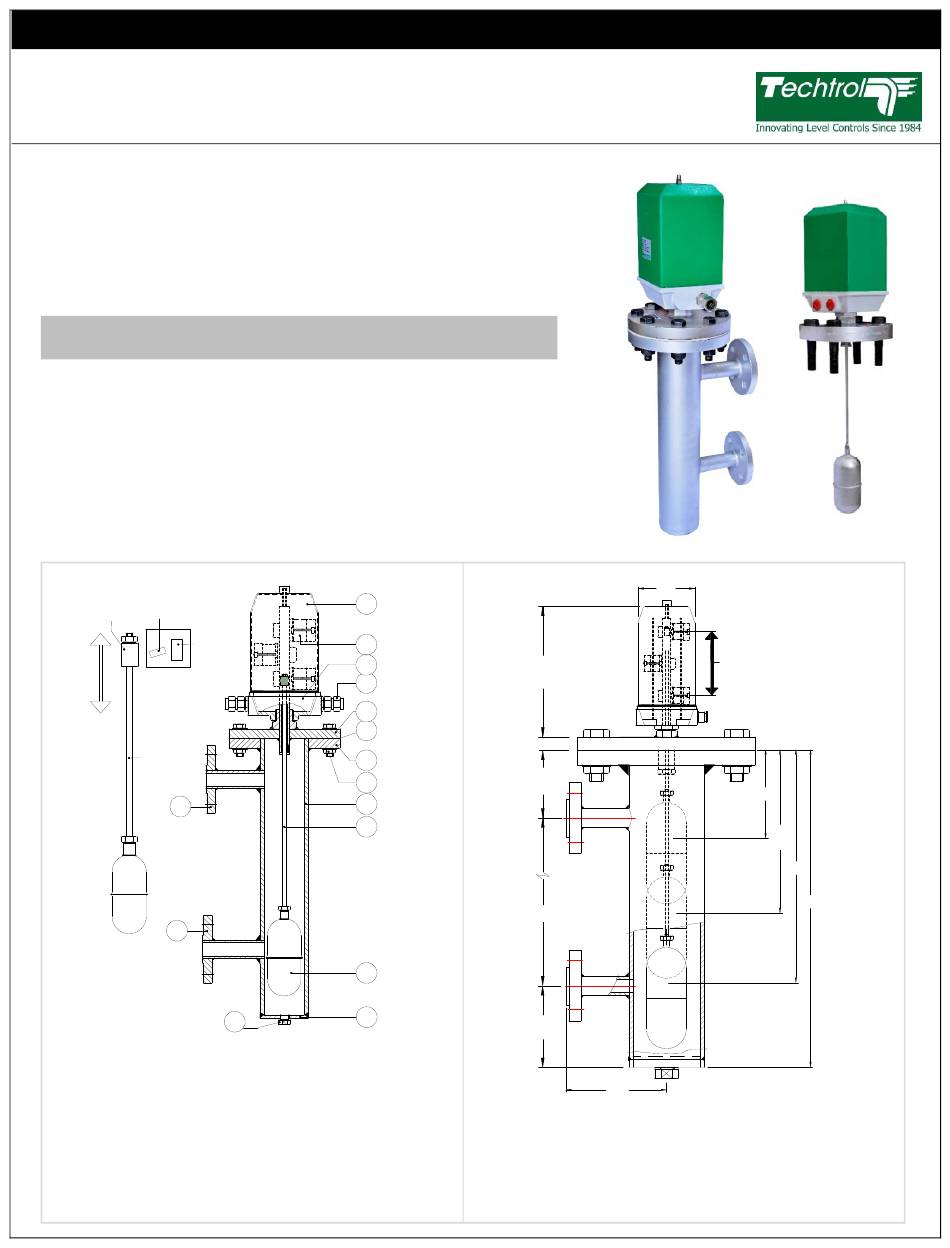

Techtrol VLC Installation & Operational Manual

Vertical level control for boiler

Advertisement

Vertical Level Control for Boiler
To get best intrinsic value of every Techtrol product it
should be installed, maintained properly and used within
its specified limits. It will help to extend the working life
of your instrument.
Unpacking:
1. Examine the switch and ensure that it is in accordance
with required specification.
2. Visually examine the instrument for any damages or
breakage.
3.
Check and record the model number and serial
number for future reference
Secondary
Primary
magnet
magnet
Airbreak
switch
Float
Stem
07
08
01) Switch enclosure
02) Base
03) Conduit conn
04) Gasket
05)
Switch flange
06)
Chamber flange
07) Steam side conn
Fig 1
INSTALLATION & OPERATIONAL MANUAL
.
01
13
02
03
05
04
06
14
09
11
12
10
15
08) Water side conn
09) Chamber
10)
Chamber end cap
Float stem
11)
12)
Float
13)
Airbreak switch assy
Bolts & nuts
14)
15) Plug
'VLC'
135
250
(Approx)
100
(Approx)
CCD±1
125
(Approx)
142
(Approx)
Fig 2 Dimensions
CO NTRO L
RAN G E =
150±2 (AP P RO X )
L1
L2
L3
L
1
