Ikan V9000 User Manual

9” color lcd tv & monitor
Hide thumbs Also See for V9000:
Table of Contents

Advertisement

Quick Links

Download this manual
Userʼs Manual
V9000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V9000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ikan V9000

Summary of Contents for Ikan V9000

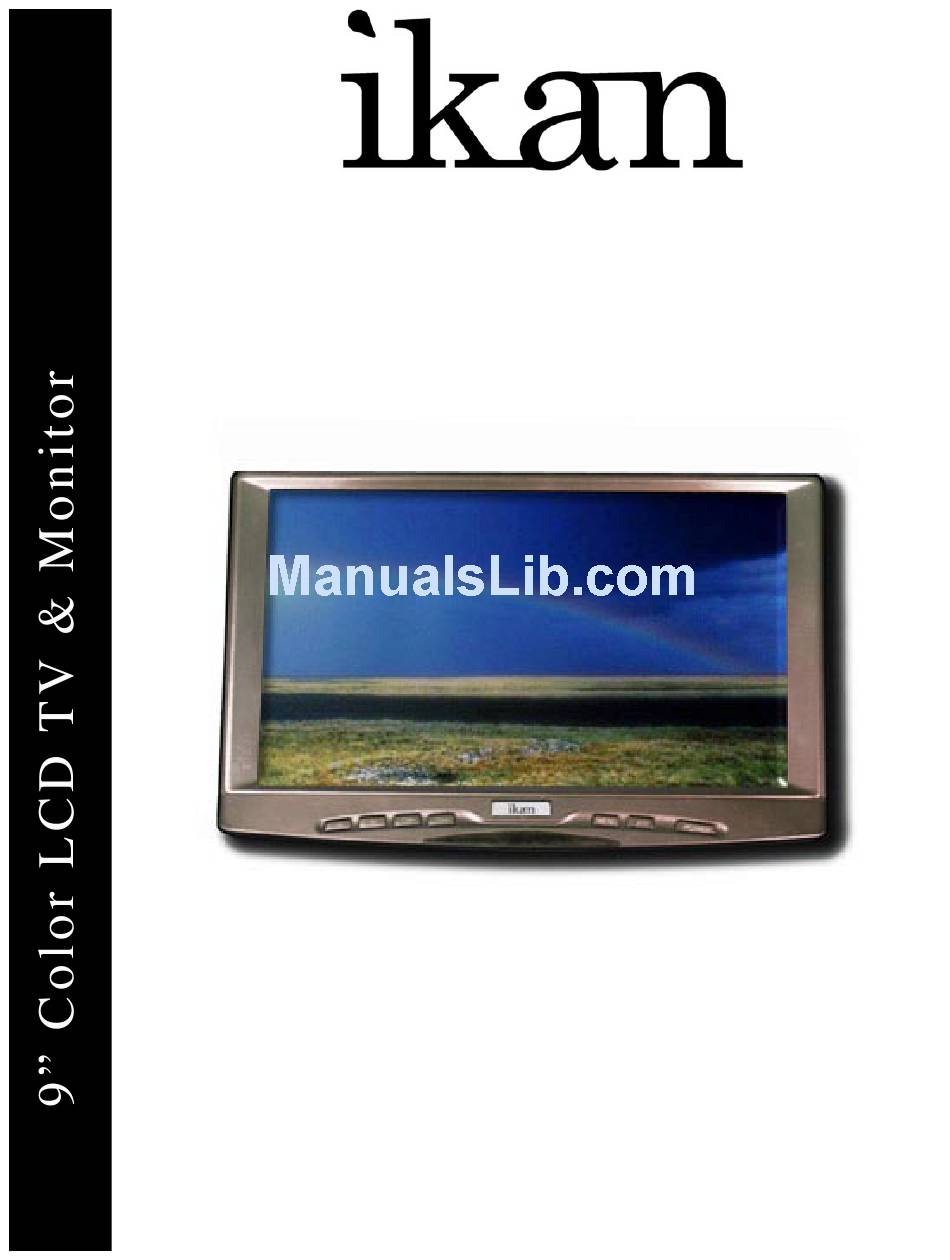

  • Page 1 Userʼs Manual V9000...
  • Page 2 Thank you for purchasing the ikan V9000 9” LCD TFT Monitor. This product employs new integrate circuitry, and a high quality TFT LCD panel. It has low power consumption, high quality, and no radiation. The V9000 is compact and portable. ikan displays are suitable for all video applications including professional video, desktop computing, mobile entertainment and security.

  • Page 3: Table Of Contents

    Appearance ... Operation ... Setting of the Display ... Calendar ... Timing Function ... Game ... Main Characteristics ... Accessories ... Troubleshooting ... Contact Information ... Contents...

  • Page 4: Appearance

    Figure 1. (V9000) 1. ANT: external antenna input jack 2. EAR: earphone jack 3. POW: DC 12V Power input 4. A/V: Audio Video input jack 5. -: Press this key to turn down the volume and adjust the setting object in the menu 6.
  • Page 5 Figure 2. (controller) 1. Power: on/off/standby 2. Mute: Press this key to mute the audio, press it again to unmute the audio 3. AV/TV : to switch between the TV signal and the AV signal 4. MENU: activate OSD menu, press this key and select the settings that you want to be adjusted by using the CH+ or CH- button 5.

  • Page 6: Operation

    Power On/Off/Standby (Attention: Make sure the terminal electric poles of the power plug are as follows: the inner pole”+” and the outer”-“ The input voltage of the unit is DC 12V, you must use the AC Adapter enclosed. You can also use the DC 12V car adapter.. After connecting to power, the display will be in standby mode.
  • Page 7 3. TV/AV CONVERSION Use the A/V button on the monitor to switch between inputs. Use the breakout cable enclosed to connect your A/V device to your monitor. Connect the USB connector of the breakout cable into the monitor and the composite connectors to your source.

  • Page 8: Setting Of The Display

    Press “WIDE” key on the remote to switch between 16:9 and 4:3 directly. 3. The V9000 has the ability to flip the image Horizontally or Vertically. You can use the CH-/CH+ buttons to choose “UV REV” or “RL REV”...

  • Page 9: Timing Function

    This display has the function of TIMER ON and TIMER OFF, at the TIMER ON position, you can prearrange the certain channel that you want to switch on, operate as below: 1. First press the MENU button to enter the main menu and then press -/+ on the display or V-/V+ on the remote until TIMER is selected from the list(when selected the item will be highlighted red) 2.

  • Page 10: Main Characteristics

    -A/V Cable -Home AC Adapter -DC 12V Car Power cord 1 piece -Shoe Mount -Mounting Bracket -Operational Manual V9000 TFT 228mm (9.0”) 336960 pixels PAL, NTSC, SECAM B/G; D/K; I;M (non functional) VHF1-12; UHF13-56; CATV (non functional) 100mV DC 11-13 Power Consumption: <13W 9.13”(L) X 5.82”(H) X 1.25”(W) inches...

  • Page 11: Troubleshooting

    2. Wrong power adapter Black and white picture Color saturation, contrast and , strong contrast brightness not properly tuned Contact Information Our Street Address is: ikan corporation 3903 Stoney Brook Dr. Houston, Tx 77063 By Telephone: 1-713-272-8822 Trouble Shooting POSSIBLE CAUSES ACTION TO TAKE 1.Check power input...
  • Page 12 CORPORATION © 2004...
