Solid wood top
Solid wood back
Right & left sides
Birch plywood bottom with cap
(14) Maple drawer slides
Birch plywood small partition with cap
(4) 1 5/8'' high short drawer fronts (oak)
(1) 1 5/8'' high long drawer front (oak)
(2) 2'' high long drawer fronts
(5 Pair) 1 9/16'' high right & left sides (poplar)
(2 Pair) 1 15/16'' high right and left sides (poplar)
#2 Philips screw driver
Wood glue
Rubber Mallet/Hammer
100 and 150 grit sandpaper
Please Note: If you are not going to start building the chest right away, you will need to weight down
the parts. The parts are unfinished and can warp if left in the box for extended periods of time.
Gerstner is not responsible for replacing warped parts 15 days after receipt.
H. Gerstner & Sons 20 Gerstner Way Dayton, Ohio 45402 www.GerstnerUSA.com 937 228 1662
H. Gerstner & Sons

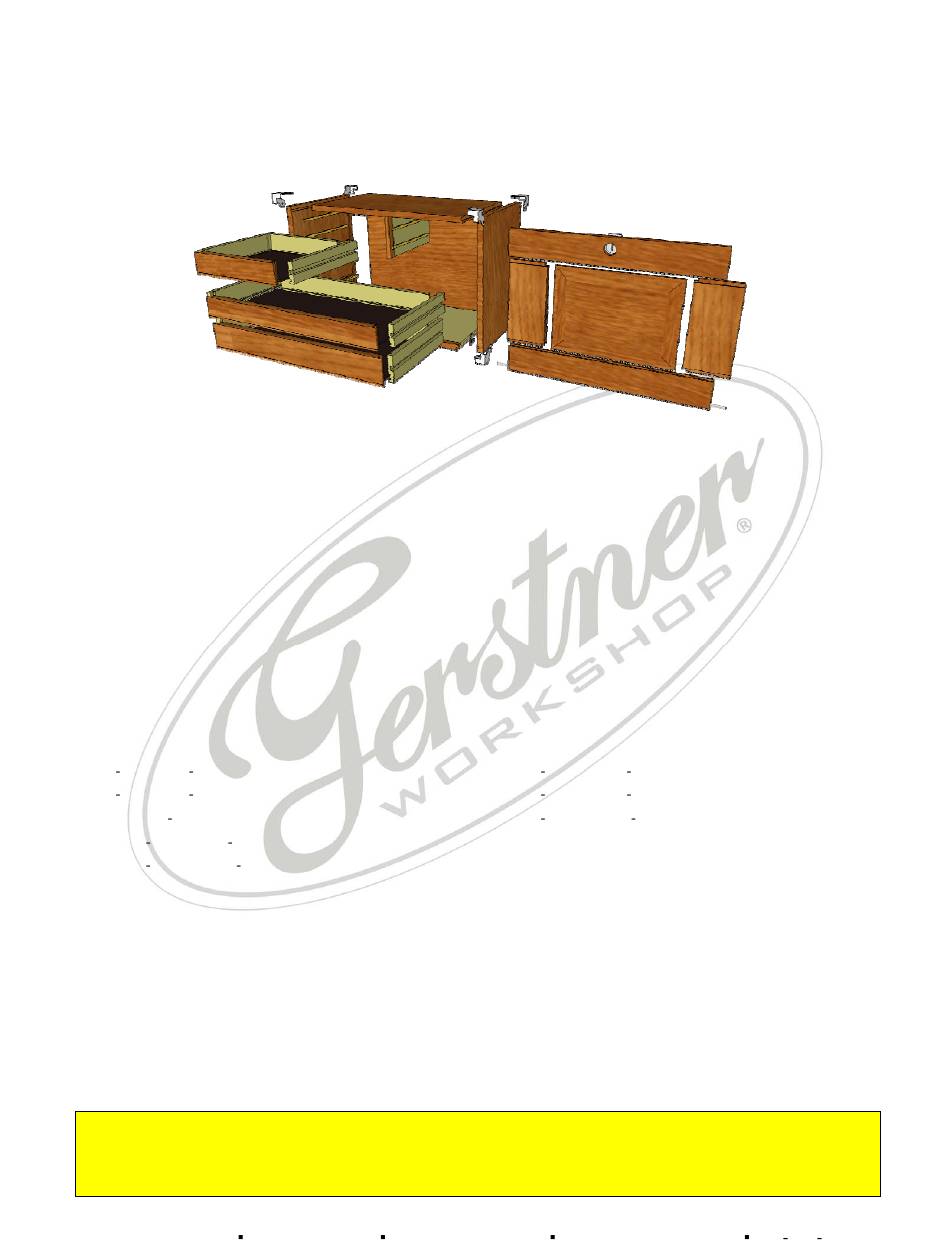

Style 35B Kit Chests
35B Chest Parts and Hardware
35B Drawer Parts: (7 Drawers)
Recommended tools
Router with flush cut bearing bit
3/16'' round over bearing bit
(4) 24'' clamps
Electric drill
(8) Box corners w/screws
(4) Rubber bumpers w/screws
(1) Lock w/key and mounting screws
(2) Lid slide plates w/ nails
(2) Steel rod lid pins
(1) Nameplate with brads
(3) Finish Nails
(2) Felt Dots
(4) 1 9/16'' high short backs (poplar)
(1) 1 9/16'' high long back (poplar)
(2) 1 15/16'' high long backs (poplar)
(4) Small hardwood drawer bottoms
(3) Large drawer bottoms (masonite)
Drawer bead bit if desired
Paraffin wax
90 degree square
Your Choice of Stain/Finish
Page 1 of 8
Advertisement
Table of Contents
Summary of Contents for H.Gerstner & Sons 35B
- Page 1 Page 1 of 8 H. Gerstner & Sons Style 35B Kit Chests 35B Chest Parts and Hardware Solid wood top (8) Box corners w/screws Solid wood back (4) Rubber bumpers w/screws Right & left sides (1) Lock w/key and mounting screws...
- Page 2 Page 2 of 8 35B DIY Assembly Instructions Parts prep before starting the job Make sure you are working on a sturdy flat work surface that will not scratch or dent your parts while handling them. Lightly sand the part edges so that they are free from burs and splinters. Always clean excess glue off of your parts with a damp rag as this will make final sanding and finishing after assembly easier.
- Page 3 Page 3 of 8 Drawer Partition Glue (2) Maple Drawer Slides in the grooves of the Birch Plywood Small Partition with Cap. Align the maple drawer slide so the painted black edge of the slide is facing toward the bottom edge of the Partition. The maple drawer slides should be aligned 1/2"...
- Page 4 Page 4 of 8 Box Assembly It is recommended that you pre assemble the box WITHOUT glue to familiarize yourself with the process. 1. Lay the side of the chest on your work surface and align the front edge of the top with the side of the chest (the front edge has the lock slot groove).
- Page 5 Page 5 of 8 Drawer Assembly 1. Align the top edge of the drawer front with the top edge of the drawer side. Glue the drawer front to the drawer side. 2. Align the top edge of the drawer back with the top edge of the drawer side. 3.
- Page 6 Page 6 of 8 Front Lid Assembly 1. Align the outside edge of the end rail with the outside edge of the bottom rail of the front lid. 2. Put the center panel of the front lid in the groove of the end rail and the bottom rail. The center panel floats in the grooves of the front lid, do not glue the panel into place.
- Page 7 Page 7 of 8 Recommended Steps to Sand and Finish your Gerstner® Kit Chest. 1. Flush up all joinery. This may be done with a flush cut router bit or by hand sanding. 2. Round over all edges of the chest as desired. The corner protectors have a 3/16” radius. 3.
- Page 8 Page 8 of 8 Front Lid Pins Once the front lid has been fit to the chest, you will need to drill for the Front Lid Pins with a 5/32" diameter drill bit. The locations for the holes are shown below. Front Lid Stop Strip 1.
