ASSEMBLY
←
9. Carefully align the minifix studs in
the small side panel (H) to the outer
edge holes in the top shelf panel (B)
and the small back panel (E), gently
tap together and turn the minifix
cams clockwise to lock in place.
↓
↓
11. Carefully slide the shelves (J)
into the unit onto the horseshoe
studs, gently tap down and turn the
pre-fitted horseshoe cams clockwise
to lock in place.
↑
10. Carefully align the minifix studs
in the base panel (I) to the outer
edge holes in the large side panel
(A), large divider panel (F), small
divider panel (G) and the small side
panel (H),
gently tap together and
turn the minifix cams clockwise to
lock in place.
12. Carefully lift the unit up onto its
castors and slide the trays of choice
onto the shelves. For heavy loaded
trays please use felt pads
(not supplied) on the underside of
the trays to prevent the shelves
being scratched.
KK/SS/MAY15
SSS (SAFE STURDY STORAGE)
630049
(138149.2 & 138167.2)

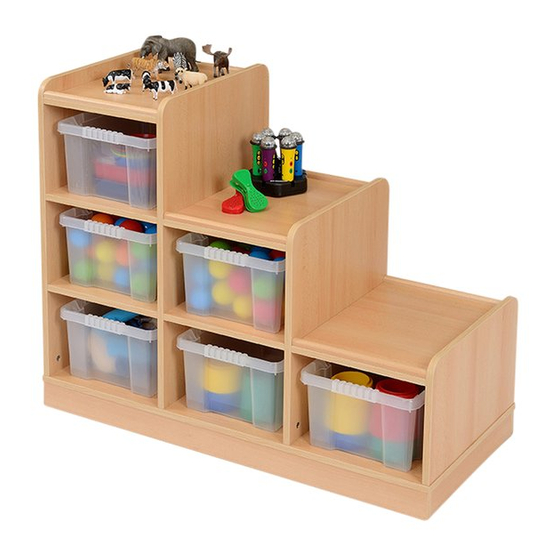

TIERED SSS ACCESS (RH)
ASSEMBLY INSTRUCTIONS
STEP 2
PLEASE READ BEFORE ASSEMBLY
Advertisement
Related Manuals for kebrico 630049
Summary of Contents for kebrico 630049
- Page 1 ASSEMBLY SSS (SAFE STURDY STORAGE) 630049 ← (138149.2 & 138167.2) ↑ TIERED SSS ACCESS (RH) ASSEMBLY INSTRUCTIONS 9. Carefully align the minifix studs in 10. Carefully align the minifix studs the small side panel (H) to the outer in the base panel (I) to the outer...
- Page 2 ASSEMBLY ASSEMBLY Please ensure you have completed STEP 1 the Pre-Assembly before proceeding to STEP 2 the Assembly. ← ← ← ← 1. Carefully align the minifix studs in 2. Carefully align the minifix studs in 5. Carefully align the minifix studs in 6.
