Product Features 1.Wide dynamic binocular live anti-counterfeiting, completely solve the deception of various photos on various carriers; 2.Support LED intelligent fill light; 3.Support serial port, Wiegand 26, 34 output, output content support configuration; 4.Real-time temperature monitoring, Body temperature tolerance range is accurate to 0.3, Body temperature detection distance is 0.5-1 meters;...

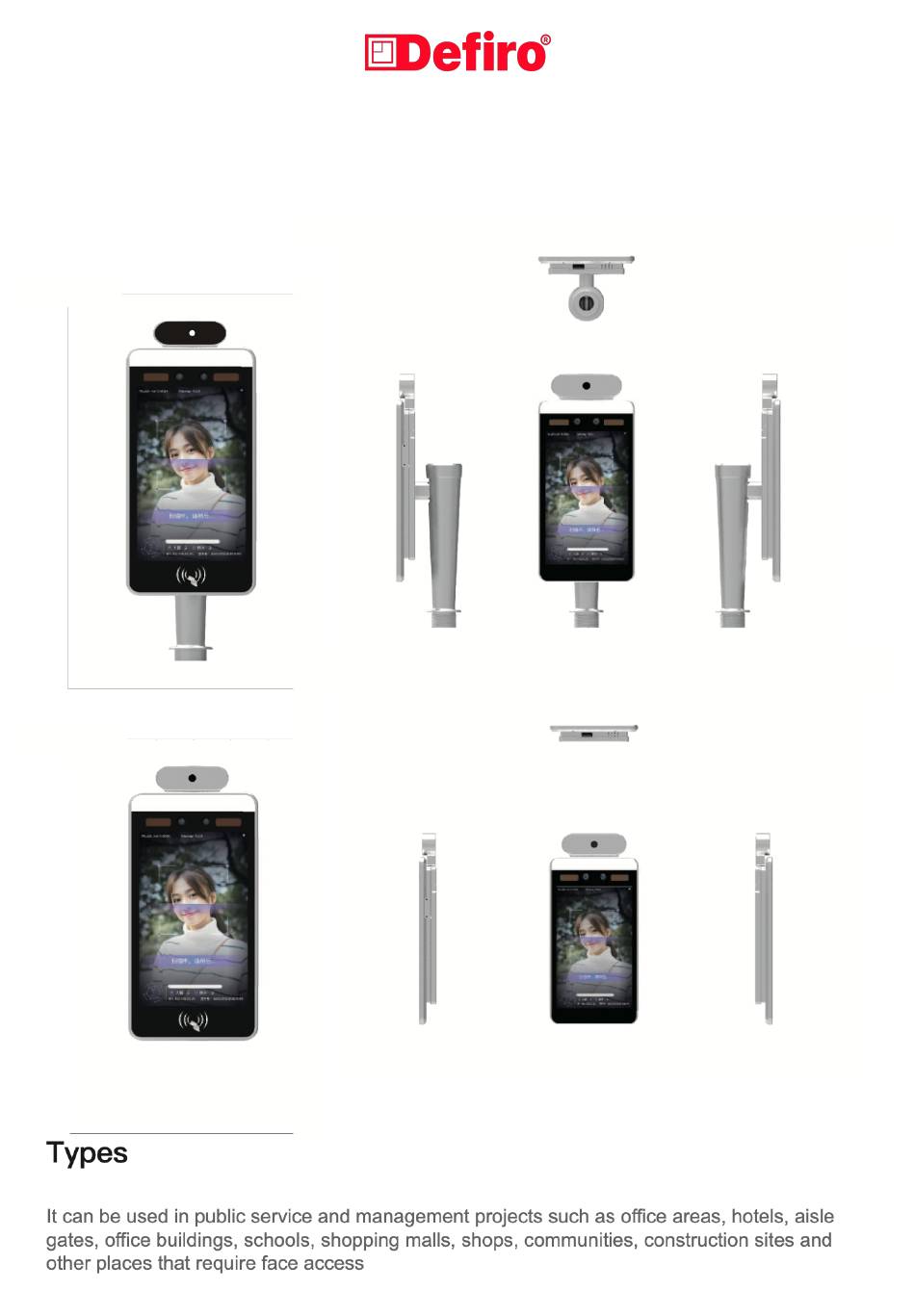

Installation Notes Instructions for appearance The schematic diagram of the gate head is shown in the figure below. Note: If the cable interface is different from the illustration, please refer to the next page for cable supplement (subject to the actual product and wiring diagram) Instructions for appearance 1.
Page 8
Note: Do not connect the network cable, power cable, etc. at this time to avoid installation trouble 3. Under the gate, pass the cable and cable interface through the washer and nut in sequence, align the nut to the thread and tighten, as shown in the figure 4.
Page 9
Desktop 1. The nut needs to be removed, the tail wire is passed through the stainless steel bracket and the nut in sequence, and the angle is tightly tightened; it is suitable for program debugging. 2. Place the desktop machine on the desktop, and place the face device on the two "L" card positions above the bracket, and adjust the angle;...
Wall-mounted 1. spiral: Place the white 86 switch bottom box on the wall at 1400mm, the specific height depends on the actual use, use a pen to mark the four corners of the bottom box, Drill four holes with a hammer drill and place the rubber plug in the hole, Fix the bottom box with screws, and then make the cable, this method is exposed;...
Page 11
2. Wall mounted: Remove the stainless steel wall hanging from the face device, place the stainless steel plate on the wall at an appropriate height, and mark it with a pen, Four holes are drilled in the impact drill, the rubber plug is placed in the hole, Use self-tapping screws to fix the stainless steel plate to the wall first (if the tail wire comes out of the back of the bottom box, you need to make a proper hole in the wall to facilitate wiring;...
Page 12
Wall-mounted diagram Bottom outlet Switch signal Wiegand output WG-D0 WG-D1 WG-D0 232 signal 232-TX Wiegand input WG-D1 232-RX 8-inch face recognition tailline description...
Page 13
Gate head and tail line(7) USB 2.0 interface 12V power input Switch signal Wiegand input Wiegand output 232 signal USB 2.0 interface 12V power input Switch signal Wiegand output...
