H D P E L O C K E R I N S T A L L A T I O N M A N U A L

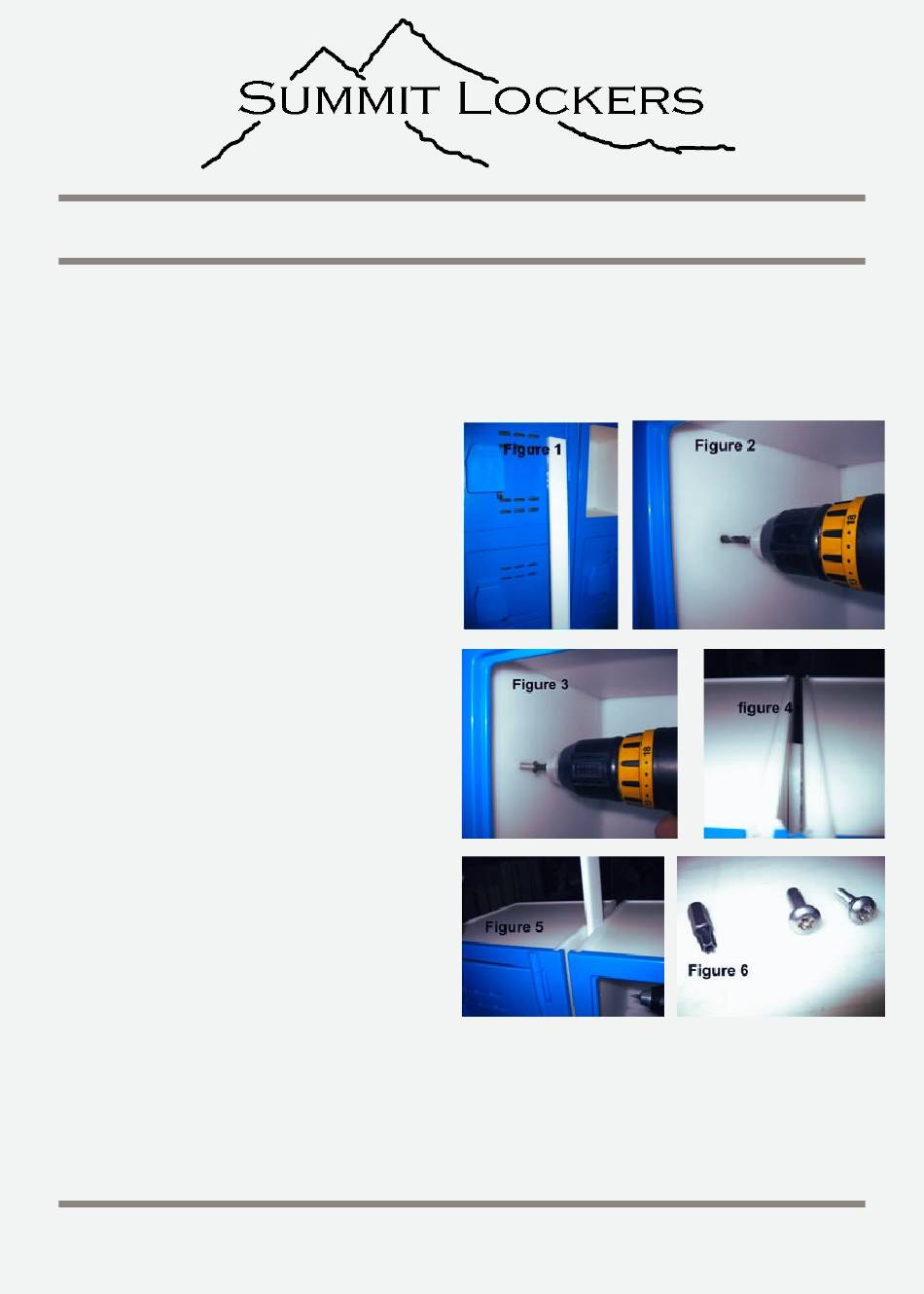

Installation Instruction
Make sure all walls and/or floors are plumb
and level.
Place lockers in desired installation space.
Finish drilling the pilot holes already in the
lockers (Fig. 2).
Loosely secure the sex bolts (P/N: 8900,
8901 as shown in Figure 6.).
Insert the divider strip (P/N:8902) between
the lockers and between the front and rear
sex bolts. (Figures 1 & 5) Cut to size if
needed.
Tighten the sex bolts with driver. (Figure 3).
Secure the lockers to the wall and/or floor.
