TRAMFABRIEK SPC100 Quick Start Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

tramfabriek
1. For N/HO/OO gauge
2. Power by Mini USB 5V
3. Large LCD display
4. Freely switch N/HO/OO gauge
5. Two detection modes, reflective and blocking.
6. Size 100mm x 50mm x 14mm
SENSOR2
KEY1
KEY2
MINI
USB
SERSOR1
SERSOR2
Key1
Key2
MINI USB
LED
VR1
VR2
SPC100

Features

Panel description

VR2
Sensor 1
Sensor 2
Select key 1
Select key 2
Power 5V input
Power display
Sensor 1 sensitivity adjustment
Sensor 2 sensitivity adjustment
2020/7
drM
VR1
SENSOR1
LED
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPC100 and is the answer not in the manual?

Questions and answers

Summary of Contents for TRAMFABRIEK SPC100

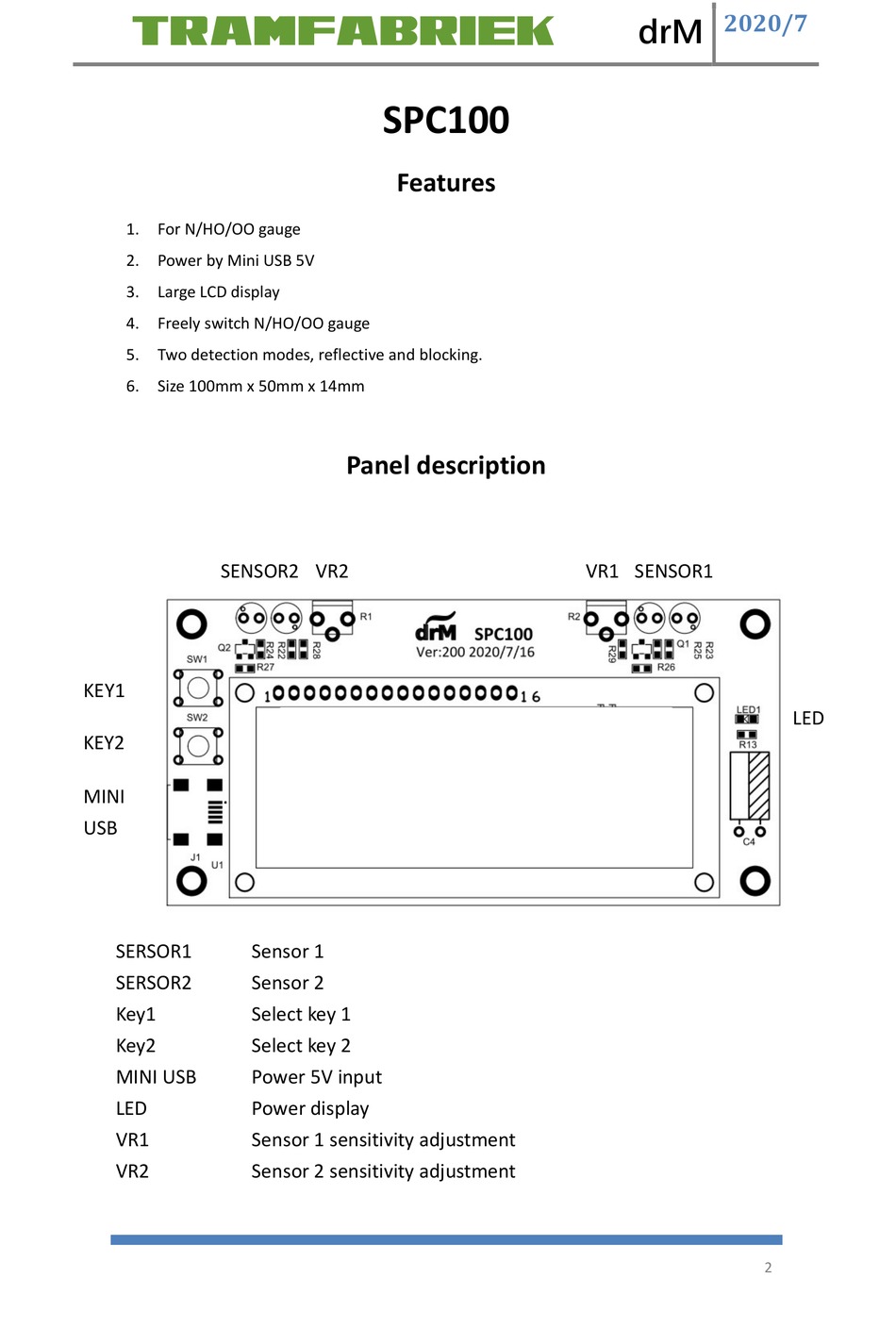

  • Page 1 2020/7 tramfabriek SPC100 Features 1. For N/HO/OO gauge 2. Power by Mini USB 5V 3. Large LCD display 4. Freely switch N/HO/OO gauge 5. Two detection modes, reflective and blocking. 6. Size 100mm x 50mm x 14mm Panel description SENSOR2...
  • Page 2 2. The power 5V is plugged in by mini USB. 3. After turning on the power, the LED lights up and the LCD display “drM SPC100”. 4. After displaying for 3 seconds, the LCD will display the gauge menu N and HO/OO.
  • Page 3 1. The LCD displaying detect speed to press the Key1 button enter select gauge. Switch mode 1. The SPC100 has two detection modes (Reflection and Block). 2. The train body color is a bright color system using reflection mode. 3. The train body color is a dark color system using block mode.
  • Page 4 2020/7 Precautions Do not place any conductive materials (liquid, metal...) on the SPC100. Do not remove or replace any components under the speedometer. Keep out of the reach of children under 14 years of age. The occurrence of the above situation will cause the speedometer to be damaged.
