Summary of Contents for Foshan Panda hardware CBY.AC

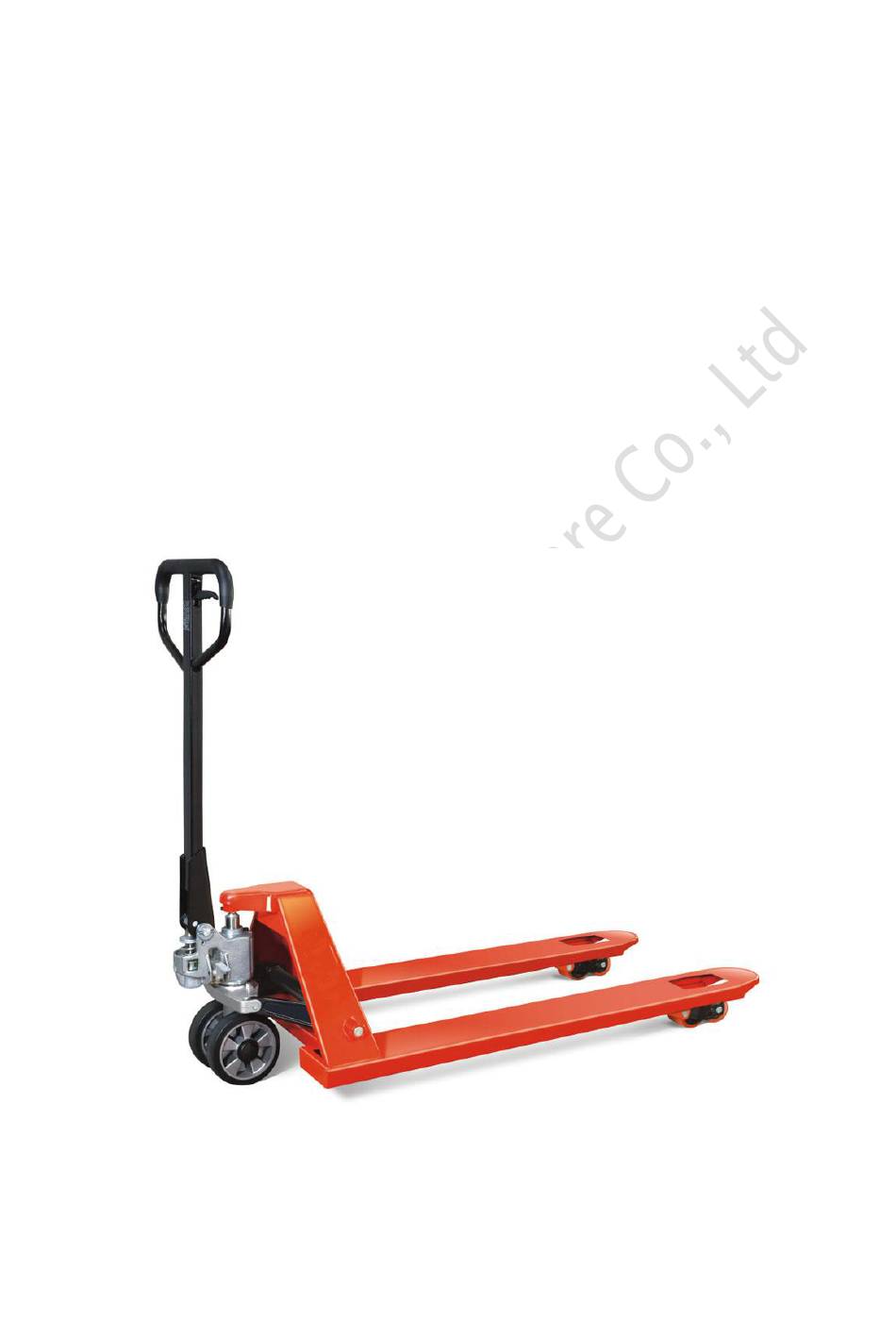

- Page 1 CBY.AC &BF Hand Pallet Truck Operation Manual and Spares Foshan Panda hardware Co.,Ltd...
- Page 2 Thanks for choosing and using forklift. The product is of excellent workmanship with reasonable design and simple operation. For the purpose of safety and right use of the product, please read this instruction manual carefully. Note: All the information is based on the data obtained when this instruction manual is issued. The company will have right to improve the product at any time without any prior notice.
- Page 3 After finish operation, the control handle shall be pull back to middle position. The three positions have been set prior to shipment. For any reason the positions have been changed, following steps shall be followed for operation: 3.1 At middle position if control handle(119) pressurized and force forklift up, so hexagonal nut (103) and the metalloid nut(105) on drop bolt(103) shall be adjusted clockwise until no more raising even forklift pressurized and everything become normal.
- Page 4 5.4 Check forklift prior to operation and pay special attention to wheels (222, 225, 228,315), handle welding prat assembly, carrier and pedal control arm (327) 5.5 Don't use forklift on slope. 5.6 Don't use forklift to carry personnel. 5.7 0perator shall wear gloves for the purpose of protection. 5.8 During transporting, personnel shall be 600mm away from carrier.
-
Page 5: Troubleshooting
6.Troubleshooting Trouble Reason Troubleshooting Fork cannot be raised to max. --Not enough hydraulic oil. --Add oil. heigh --No hydraulic oil; --Add oil; --Not pure oil; --Change oil; Fork cannot be raised. --Position of hexagonal nut(104) is --Adjust nut(104) too high and make relief valve open. (Refer to Item 3 and 4);... - Page 6 Parts of Handle welding prat Description Description Pulling rod Roller cover Chain Handle welding Drop bolt Elastic pin Hexagonal nut Return shrapnel Metalloid nut Return spring Positioning bearing Elastic pin Elastic pin Elastic pin Cover Control handle Elastic pin Handle wheel Roller bearing Elastic pin Roller...
- Page 7 Parts of Body Frame Description Qty. Description Qty. Body frame Gasket Inner hexagonal screw Bearing Front wheel Connecting bearing Lever frame Front wheel bearing Hexagonal screw Lever bearing Elastic pin Climbing wheel Fork ear Metalloid nut Washer for bearing Fork ear connector Single wheel part Pushing rod welding Front wheel frame...
- Page 8 Parts of oil Pump Description Qty. Description Qty. Spring gland Steel ball Pump core spring Pedal control Pump core Elastic pin Anti-dust ring Fasten screw Sealing ring Small pump Value body assembly Copper sheet "O"sealing ring Anti-dust cover Copper nut "O"sealing ring Rand "O"sealing ring...
- Page 9 BF Pump Explosive View Item Name Spec Item Name Spec Item Name Spec Anti-dust ring Pressure Adjusting Pump Out body 外 Φ18*26*4.5 Iron Caste Φ18 Screw M10*1*8,5 体 泵芯防尘圈 调压螺钉 Bonded washer Sealing ring Bonded washer Φ10*1*9.5 Φ18*26*5 Φ10*2 组合垫片 泵芯密封圈...
