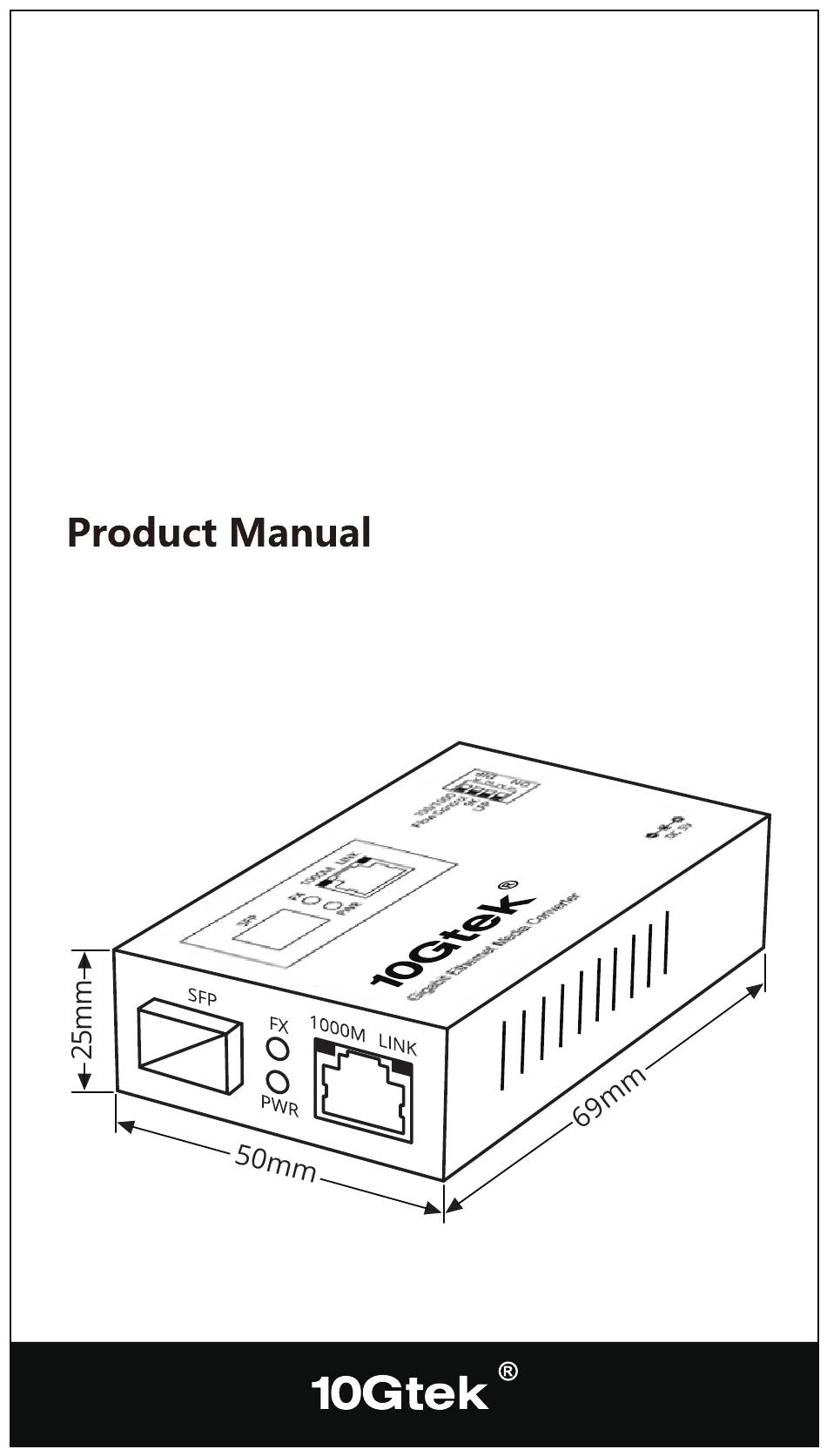

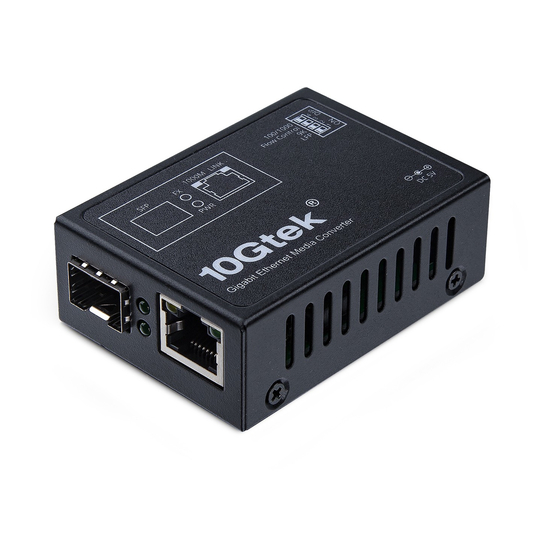

- Page 1 1000Base-T to 1000Base-X Mini Gigabit Ethernet Media Converter PB2S-02(v1.0)
- Page 2 Thank you for purchasing this product. Please read this manual before operation and retain it. Overview 10Gtek’ s G0101-MSFP series is a small size design Media converter, about 50% smaller than the traditional converter. It is used to expand existing Gigabit Ethernet networks.
- Page 3 LED Indicators Lit when FX connection is good Lit when power is coming up RJ45 Left Orange Lit when LINK speed is 1000M Blink when LINK speed is 100Mbps RJ45 Right Lit when LINK connection is good Blinks when LINK data is transmitting Dip Switch Setting On enable link fault pass-through On converter mode(9k)
- Page 4 Installation Insert a SFP transceiver, if the Media Converter ’s optical interface is a SFP slot; Maintain fiber optic patch cords to the SFP transceiver; Insert RJ-45 patch cords to the RJ-45 port of Media Converter; Connect the power cord to the Media Converter and check if the Power LED lights up.
- Page 5 Limited Warranty This product is warranted for one year from the date of purchase. Within this period, 10Gtek at its option, will repair or replace products that have failed under normal use. Such repairs or replacements will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.
