- Page 1 Flare 3.0 / Flare 3.0 CA ™ ™ Cellular signal booster kit with combined booster and indoor antenna User Guide...
- Page 2 Introduction Thank you for purchasing SureCall’s Flare 3.0 cellular signal booster kit. SureCall’s Flare 3.0 was specifically designed to eliminate frustrations over dropped calls and limited range by amplifying incoming and outgoing cellular signals in homes and offices. If you have any questions during setup, please reach out to our US-based experienced support technicians: Call: 1-855-846-2654 Email: order@signalbooster.com...
-
Page 3: Table Of Contents
PACKAGE CONTENTS ........................5 BEFORE INSTALLATION ........................6 Installation Overview ........................6 FLARE 3.0 INSTALLATION ........................6 Step 1. Find the Area With the Strongest Signal ................6 Step 2. Install the Outside Antenna ....................8 Step 3. Place the Booster ......................10 Step 4: Connect to Power ...................... -
Page 4: How It Works
The booster amplifies the cell signal and rebroadcasts the signal indoors to all mobile devices within range. The booster amplifies outgoing cell signal back to the tower. Outside Yagi Antenna (b) Outside Omni Antenna (a) Booster Power Supply Cable How the SureCall Flare 3.0 Booster Works https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com... -
Page 5: Package Contents

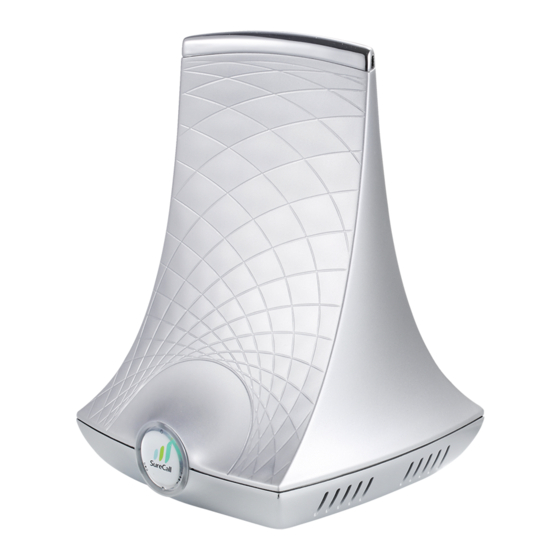

Turn over the signal booster and record the model and serial number for reference: Serial #: ________________________________________________________________ Purchase Date: __________________________________________________________ Keep the carton and packing material to store the product in case you need to return. Your Flare 3.0 signal booster package includes the following items: SureCall Flare 3.0 signal booster... -
Page 6: Before Installation
Step 1. Find the outside area with the strongest signal. Step 2. Install the outside antenna Step 3. Place the Flare 3.0 on a table or desktop, center of the area where signal is needed. Step 4. Connect the booster to an AC power source. - Page 7 Once the outside antenna is secured, connect one end of the provided cable to the outside antenna and tighten the connection. Do not collocate antennas or operate the outdoor antenna with any other antenna or signal booster. https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com...
-
Page 8: Step 2. Install The Outside Antenna
Connect antenna to one end of the provided RG6 cable and tighten the connection. Run the cable along route to planned location of your booster. Note: Alternate screws may be required for differing surfaces such as wood or concrete. Omni antenna with surface mount hardware Pole-mount hardware https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com... - Page 9 (not provided) as shown in the illustration. Keep the connections loose enough to allow the antenna to rotate until U-bolt Washer Bracket Outside Antenna Planned Booster Location Cable Drip Hole RG6 Cable Outside Antenna Assembly Omni Yagi Antenna Install Illustration https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com...
-
Page 10: Step 3. Place The Booster
1695-1710 MHz and 1755-1780 MHz bands are limited to 1 watt EIRP. Fixed stations operating in the 1710-1755 MHz band are limited to a maximum antenna height of 10 meters above ground. https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com... -
Page 11: Enjoy Boosted Signal
Right Red / Yellow Alternately Booster function has shut off to prevent oscillation. Flashing If this happens: Increased separation between the outside antenna and Flare 3.0 booster is needed to continue proper operation. Power LED Booster LED Diagram Left LED Right LED https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com... -
Page 12: Troubleshooting
Remember: Bars are not always a reliable measure of signal. The best way to confirm signal coverage is the ability to place and hold a call. SPECIFICATIONS Flare 3.0 (U.S.) ; Flare 3.0 CA (Canada) Uplink Frequency Range (MHz): 698–716 / 776–787 / 824–849 / 1850–1915 / 1710–1755 Downlink Frequency Range (MHz): 728–746 / 746–757 / 869–894 / 1930–1995 / 2110–2155... -
Page 13: Kitting Information
2.5 dBi 3 dBi 5 dBi 4 dBi / 5 dBi *Note: The Flare 3.0 booster is suitable for use with all equivalent and lower gain antennas, as well as, equivalent or greater lengths of cable. PreAGC PreAGC Pulse GSM 4.1 MHz AWGN... -
Page 14: Consumer Guidelines
Une telle réduction doit porter sur la puissance d’entrée ou sur le gain, et ne doit pa s se faire au moyen d’un atténuateur raccordé à la sortie du dispositif. https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com... -
Page 15: Warranty
© 2018. All Rights Reserved. All trademarks and registered trademarks are the property of their respective owners. 7800 Harwin Dr. Ste A2 Houston, TX 77036, USA 855.846.2654 www.signalbooster.com https://www.signalbooster.com | 855.846.2654 | order@signalbooster.com... - Page 16 7800 Harwin Dr. Ste A2 Houston, T X 77036, United States 855.846.2654 https: .com //www.signalbooster...
