Summary of Contents for EGSW THE BUBBLER

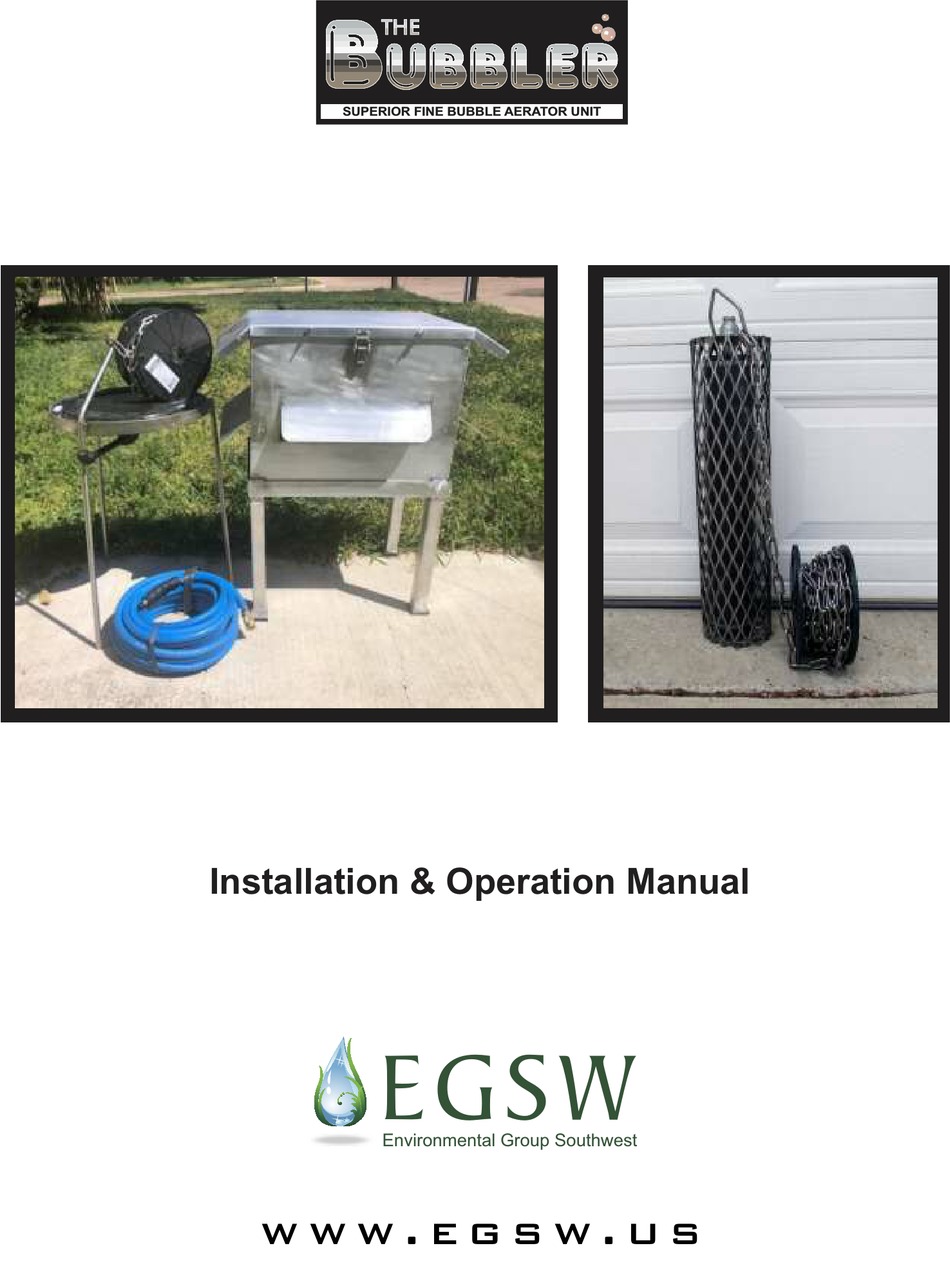

- Page 1 U U B B B B L L E E R R SUPERIOR FINE BUBBLE AERATOR UNIT Installation & Operation Manual EGSW Environmental Group Southwest w w w . e g s w . u s...
- Page 2 EGSW Environmental Group Southwest Water is Life www.egsw.us...
-
Page 3: Table Of Contents
Prior to Installation…………………………………..……..……... 8 Install the Compressor and Stand……..….……….………..……. 8 Install the Diffuser.………………………..…..………..…...…… 9 Connect Compressor to Diffuser…………...…..……..……..9 Operation…….………………………………………..………..…10 Troubleshooting……………………………………………..……………..11 Obstructions to Air Flow……………………………..……...…...11 Compressor and/or Power Source…………………..……..….11 Maintenance………………………………………………..……………..….12 Changing the Filter……………………………………..…...……12 Cleaning………………………………………………..……..…..13 Options…………………………………………………..……..…13 Warranty……………………………………………………….…………..…13 The Bubbler Installation and Operation Manual... -
Page 4: Product Description
The oxygen also aids in mixing Micro-Solve® Bioremediation Solution with the wastewater, which gives the ability to use less chemical. The Bubbler should be used with Micro-Solve® for optimal results. -
Page 5: Safety
DO NOT touch air compressor or cords if hands or feet are wet. Ensure that all cords are free of damage before connecting to the power supply. Ensure that you have a sufficient electrical supply for supporting the requirements of the motor. The Bubbler Installation and Operation Manual... - Page 6 DO NOT place a storage cover on the unit during Never leave the air compressor unattended with operation. Only place a cover on the air compressor power supply in use and the air hose connected. after it has thoroughly cooled down. The Bubbler Installation and Operation Manual...
- Page 7 25 feet long and at least 14 gauge. Using an excessively long or thin-wired extension cord will cause severe damage to the motor. Use only a 3-wire extension cord that has a 3- blade grounding plug. The Bubbler Installation and Operation Manual...
-
Page 8: Components
• 8ft Extension cord • PRIME mechanical timer Oil-Free Air Compressor Pump/Motor: • KM - 120C 115V The Bubbler Invader and Slim - Aeration and Mixing Units: • Diffuser plate and stand • #2/0 Chain (30' - 75') • 50' 3/8" Air hose •... -
Page 9: Installation
Install the Compressor and Stand: • The stand and compressor box should be mounted rst using the Tapcon cement anchors. * Compressor box and stand needs to be mounted near 115-volt single phase power source. The Bubbler Installation and Operation Manual... -
Page 10: Install The Diffuser
• Remove the quick connect, cut the hose to the correct length, and secure with worm-gear clamp. Re-install the quick connect. • Connect the air hose to the compressor using the quick connect. The Bubbler Installation and Operation Manual... -
Page 11: Troubleshooting
If continuously without rest. the compressor runs, then the timer should be replaced and re-programmed. Contact EGSW for a replacement timer Switch is in the "Outlet on" The motor does not start and Switch timer switch to "Timer on"... -
Page 12: Changing The Filter
EGSW TROUBLESHOOTING Environmental Group Southwest troubleshooting continued Compressor head gasket broken or Stop the compressor and contact EGSW.. valve plate faulty. Stoppage or decrease in air Stop the compressor and contact EGSW. Compressor worn or broken piston ring flow Stop the compressor and contact EGSW. -
Page 13: Cleaning
Do not use ammable liquids such as gasoline or alcohol. Always keep parts clean from dirt and dust for better performance. Limited Warranty: Warranty is for 12 months against manufacturer defects. EGSW 5804 Babcock Rd. #169 San Antonio, TX 78240 512-775-5358 www.egsw.us The Bubbler Installation and Opertion Manual...
