Summary of Contents for ASEPT nemco 06 10973

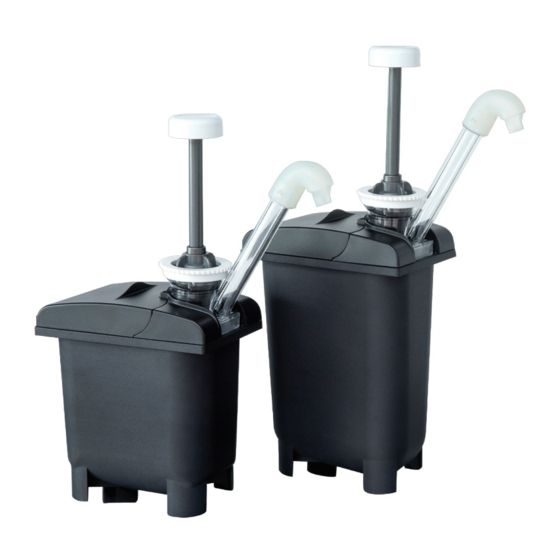

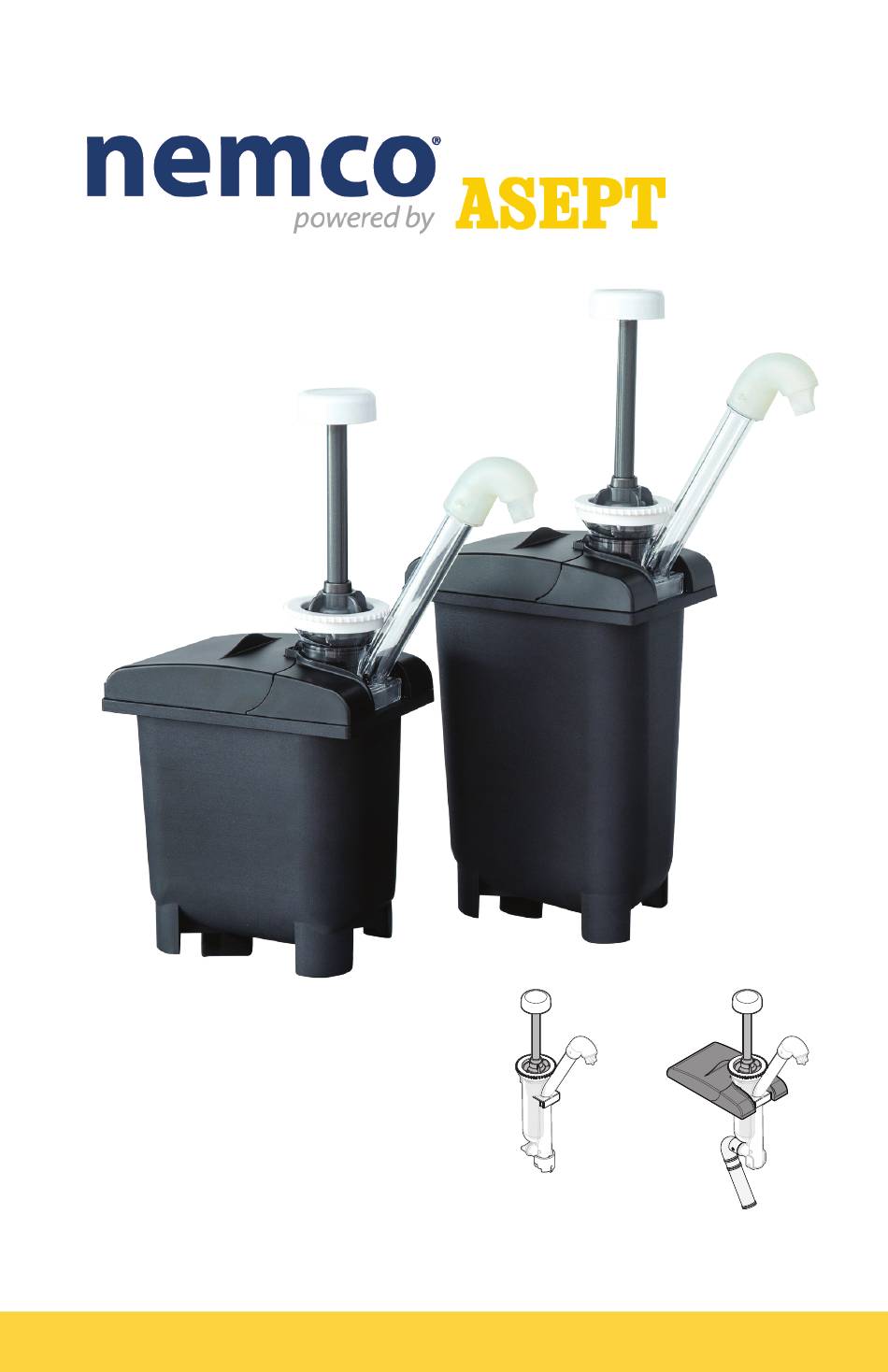

- Page 1 Topping pump Model 06 Model 06 User Manual 10973, 10974, 16mm fountain jar...
- Page 2 Topping Pump Pump 10973 For use with 16mm fitment pouches Pump 10974 For use with 7–10" fountain jars Discharge Gaging Collar Kit Valve 10910 10904 (1 portion ring & 2 portion clips) Internal Removal Tool Valve 10907 10905 Brush 10909 Plunger Assembly 10902 for Pump...
- Page 3 Safety All components must be cleaned before first use. According to food and safety IMPORTANT Clean, rinse, sanitize, regulations, most foods must be and dry parts at a minimum stored and/or served at certain of every 24 hours. Always temperatures or they could comply with local sanitization become hazardous.
- Page 4 Assembly Internal Valve OPTIONAL: If dispensing a product with particulates such as seeds, use internal valve to deliver more consistent portions. The internal valve is not needed when dispensing smooth products. Insert internal valve between the neck of pump and discharge valve. Mount the discharge valve onto the end of the pump housing.
- Page 5 Insert the pump plunger into the body of the pump housing. TIP: Removal tool ring can remain on plunger throughout use. Align tabs on plunger with slots in pump housing. Twist to secure pump Turn pump plunger clockwise. for pouch Pump 10973 Put new pouch on countertop with fitment facing up.
- Page 6 for pouch Pump 10973 Insert pump into the container. Hook front of pump housing onto edge of container. for jar Pump 10974 Pour product into jar Add pump Hook front of pump housing onto edge of container. Add back of lid Snap tabs into back of fountain jar.
- Page 7 Setting the Portion Desired Portion Use Gaging Collars: Portions are set by adding portion 0.8 fl oz None ring and portion clip(s) to the stem of the plunger. ¾ fl oz Ring Only ½ fl oz 1 Ring, 1 Clip ¼...
- Page 8 10915 Fountain Jar, 7½" high 10914 Fountain Jar, 10" high Available In the USA through: Asept International Inc. 900 oakmont Ln, Suite 207, Westmont iL 60559, uSA +1 (630) 441-5656 Nemco Food Equipment info.us@asept.com p.o. Box 305 Asept International AB 301 meuse Argonne Traktorvägen 17, SE-226 60...
