Summary of Contents for Fuelsis 6 Series

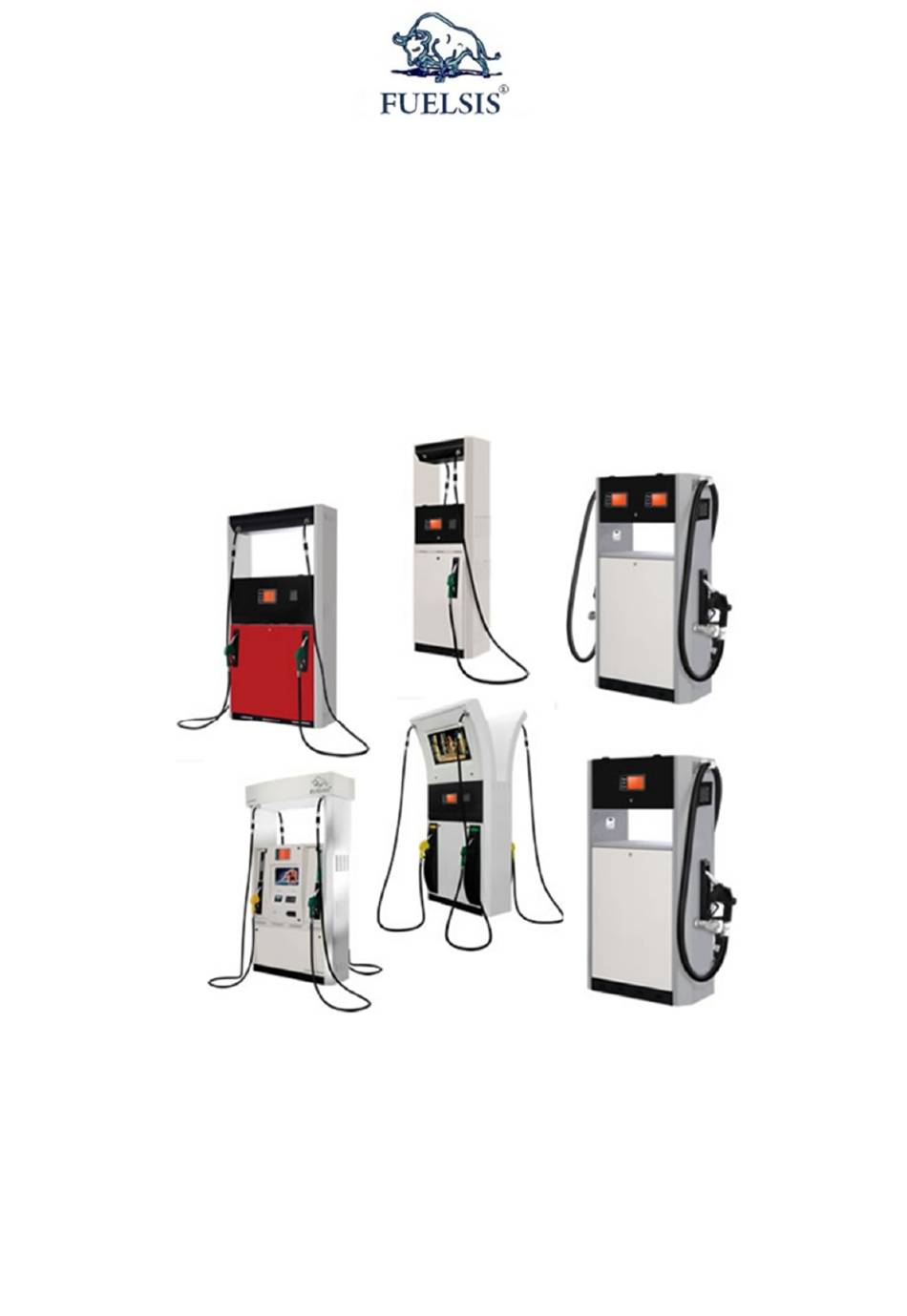

- Page 1 6,5, 3, 1-Series Fuel Pump User's Guide...
-
Page 2: Table Of Contents
6,5, 3, 1-Series Fuel Pump User's Guide TABLE OF CONTENTS Title Page No 1. Introduction 2. Fuelsis Feul Pumps 2.1 General Features 2.2 Technical Features 2.2.1 Data Processing Unit 2.2.2 Display 2.2.3 Keyboard 2.2.4 Motor 2.2.5 Pump Unit 2.2.6 Meter 2.2.7 Selenoid Valve... - Page 3 6,5, 3, 1-Series Fuel Pump User's Guide 10.9 Emergency Stop 10.10 Display Usage 10.11 Menu Codes 11. Error Codes 12. Technical Drawings 13. Brain (Computing Unit) Connections Important Note No part of this manual is written partially or totally, can not be changed or reproduced without the permisson the manufacturer in any way.
-
Page 4: Introduction
6,5 3, 1-Series Fuel Pump User's Guide 1.Introduction This guide will explain all details of Fuelsis 6 series fuel pumps. 2. Fuelsis Fuel Pumps 2.1 General Features 3 Series fuel pumps is designed, for the fuel stations and vehicles to filling fuel types of 4.5 l / min to 45 l / min for different flow rates. -
Page 5: Keyboard
6,5, 3, 1-Series Fuel Pump User's Guide 2.2.3 Keyboard Easy adjustment with 2x16 display and 4x4 keypad. Entering unit prices, seeing all the totals, monitoring the last sales and briefly You could do all other menu transactions from here. 2.2.4 Motor 380 V / 50 Hz three-phase (single-phase 220 V optional), 0.75 kW 1400 rpm, flame proof (explosion proof) electric motor with high reliability. -
Page 6: Meter
6,5, 3, 1-Series Fuel Pump User's Guide This is a centrifugal unit with pallet system which is rotary typed, V-Belt driven, with integrated air separator and has a positive displacement, It has a by-pass safety valve and is a suction line filter typed. It has 50-90 l / min flow capacity. 2.2.6 Meter All fuel pumps capable of being calibrated, positive displacement piston-type, four-piston, up to a value of ±... -
Page 7: Fuel Nozzle And Hose
6,5,,3, 1-Series Fuel Pump User's Guide 2.2.8 Fuel Nozzle and Hose According to the flow rate of ¾ "or an 1" automatic trigger device with aluminum bodied fuel Nozzles are used. The hose is determined according to the flow rate of ¾ "or 1" respectively. -
Page 8: Installation
6,5, 3, 1-Series Fuel Pump User's Guide 4. Installation Be carefull about the fuel pumps and equipment to be provided substantiality and completed. Please contact your service provider, in the case any technical deficiency or distortion. 4.1 Mechanical Installation The pumps' installation places should be determined in accordance by the Savel technical service teams' recommendations.. -
Page 9: Special Conditions
6,5,3, 1-Series Fuel Pump User's Guide if all electrical and mechanical connections are made correctly or not, to make sure that the necessary checks had been made with your hands and eyes. 6.2 Special conditions The moving parts of pumps should be checked against snow and ice. 6.3 Record Please note for electronic and mechanical total before the first use, after you run your pump. - Page 10 6,5, 3, 1-Series Fuel Pump User's Guide Current flow could be edited through the trigger. Trigger could be fixed 1, 2, 3 positions. Fuel nozzle has a full auto trigger and it will cut itself when the storage is full.
-
Page 11: Protective Treatments
6,5 , 3, 1-Series Fuel Pump User's Guide 9. Protective Treatments Operator's maintenance and cleaning work to be done is as follows. All other works and interventions to be performed by qualified service personnel only Savel. 9.1 Daily operation of the pump Nozzle open the locks of the funnel of the nozzle (if exists) ... -
Page 12: User Menu
6,5, 3, 1-Series Fuel Pump User's Guide 9.6 Fuel leakage control All the hydraulic pump through the fuel elements and connections should be checked carefully, should be remedied immediately in case of any leakage, the pump should not be used if necessary. 9.7 Control of the fuel hose The availability hose damage, fracture points, or bubble formation, should be checked regularly. -
Page 13: Seeing The Last Sales
6,5, 3, 1-Series Fuel Pump User's Guide Menu 511 Total B Menu 523 Total B LT T1 0000002356 PR T3 0000235670 10.5 Seeing the last sales Each nozzle's 8 sales are backwards. In total, the sales can be seen 40 of them backwards. Call the shortcut menu. -
Page 14: Error Codes
6,5, 3, 1-Series Fuel Pump User's Guide Price preset values: 351-5 Pass from slow valve to rapid valve: 361-5 Pass from rapid valve to slow valve: 371-5 the numbers of the hidden pulses: 381-5 Make ATC active/passive : 41 < It has to be written 2000 to the record section> Determine butane/propane ratios: Time setting: Date setting:... -
Page 15: Technical Drawings
E 72 : pre-set sales over, Pulser free movement E 73 : Full E 74 : ATC sensor failure E 75 : Calibration error E 76 : Pulse calibration error E 77 : Voltage Problem 12. Technical Drawings 6 Series... - Page 16 6,5, 3, 1-Series Fuel Pump User's Guide 5 Series 3 Series...
-
Page 17: Brain (Computing Unit) Connections
6,5, 3, 1-Series Fuel Pump User's Guide 1.Series CAN 2.0 KEYBOARD DISPLAY NOZZLE POWER (5 VDC) KEYPAD UYARI / WARNING SADECE YETKİLİ KİŞİLER TARAFINDAN MÜDAHALE EDİLEBİLİR! AUTHORIZED PERSON ACCESS ONLY! 1-WİRE 2-WİRE 2-WİRE 5 (+) 5 (-) savel.com. 4 (+) 4 (-) 3 (+) 3 (-) - Page 18 6,5, 3, 1-Series Fuel Pump User's Guide 13. Central processor unit (CPU) connections X5-CPU CAN 2.0 KEYBOARD DISPLAY NOZZLE POWER (5 VDC) KEYPAD UYARI / WARNING SADECE YETKİLİ KİŞİLER TARAFINDAN MÜDAHALE EDİLEBİLİR! AUTHORIZED PERSON ACCESS ONLY! 1-WİRE 2-WİRE 2-WİRE Sav5-CPU 5 (+) 5 (-) savel.com.
