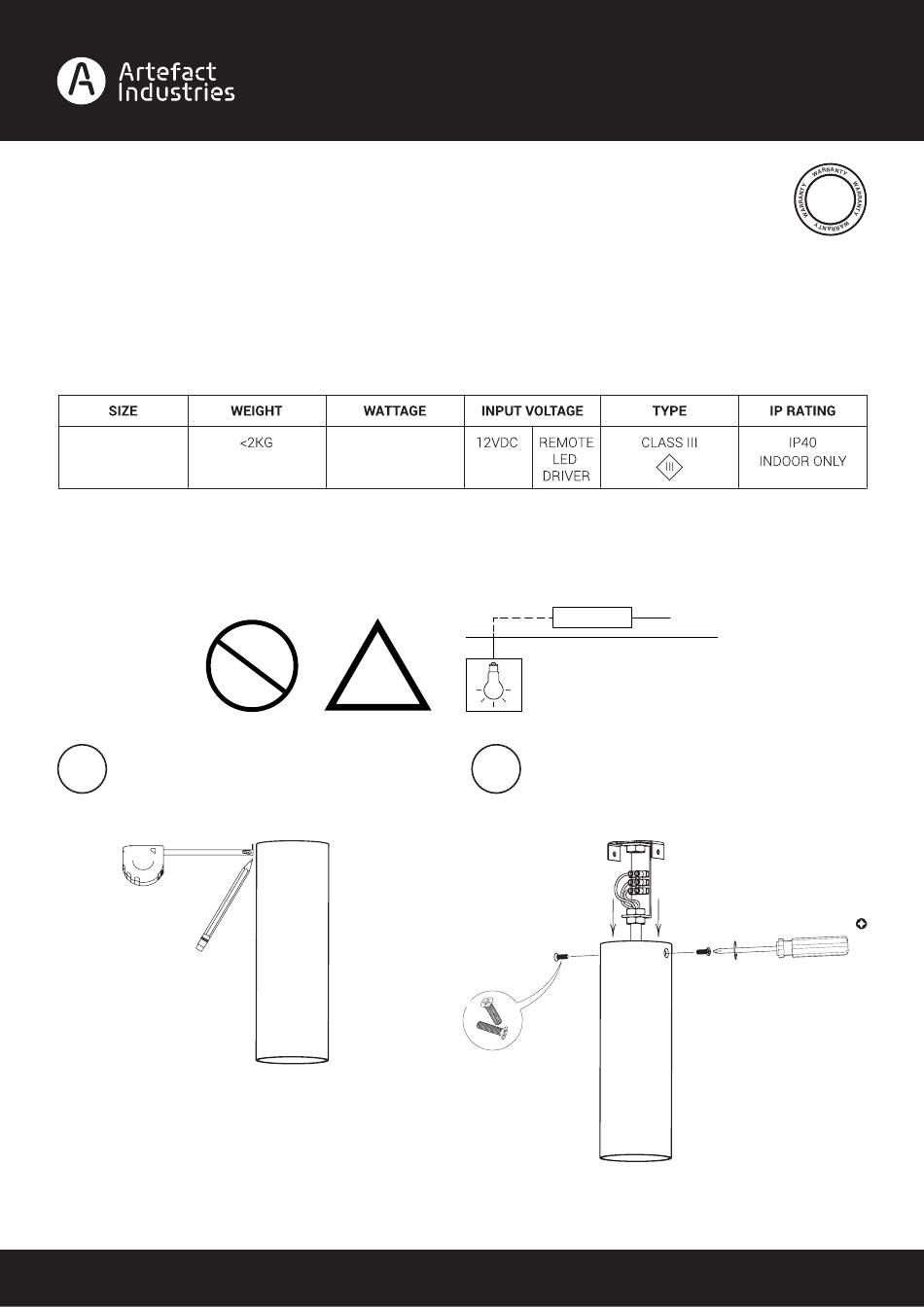

T-MINI SURFACE (DALI) INSTALLATION GUIDE
Please read this manual carefully before proceeding with any installation or maintenance works. Failure to comply with the
instructions listed in this manual may void warranty and, in the case of improper installation, cause serious injury. Please contact
Artefact Industries with any questions relating to installation or maintenance.
INSTALLATION BY A LICENSED ELECTRICIAN ONLY!
Ø80 X 200mm
IMPORTANT! Remotely housed driver needed to power light fitting. DO NOT CONNECT DIRECTLY TO 240VAC. Maximum lead length
between light fitting and driver is 4 metres. NOTE: If light fitting is supplied with a dimmer, follow wiring instructions supplied with
the dimmer.
240 VAC
1
Measure and mark the mounting position of the fitting
on the ceiling.
DETAILS LISTED IN THIS DOCUMENT ARE SUBJECT TO CHANGE WITHOUT NOTICE . PLEASE GO TO WEBSITE FOR UPDATED INFORMATION
artefactindustries.com
MAX. 10W
1x GU5.3 lamp
base
!
2
2x
Product of Australia
DRIVER
240VAC
Remove the ceiling bracket assembly from the light
housing, via screws located at the base of the fitting.
Place all items in a safe location for later steps.
WHERE AESTHETICS
MEETS PERFORMANCE
5
YEAR
Est. Melbourne 2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the T-MINI SURFACE DALI and is the answer not in the manual?

Questions and answers

Summary of Contents for Artefact Industries T-MINI SURFACE DALI

  • Page 1 Please read this manual carefully before proceeding with any installation or maintenance works. Failure to comply with the instructions listed in this manual may void warranty and, in the case of improper installation, cause serious injury. Please contact Artefact Industries with any questions relating to installation or maintenance. INSTALLATION BY A LICENSED ELECTRICIAN ONLY! Ø80 X 200mm...
  • Page 2 WHERE AESTHETICS MEETS PERFORMANCE Cut access hole in ceiling substrate, ensuring cut- To corresponding terminals marked on driver: Connect out is just large enough to fit both driver and wiring. DALI control wires; BLUE (+), WHITE (-). Connect low- Connect 230/240VAC wiring to corresponding voltage wiring;...
  • Page 3 WHERE AESTHETICS MEETS PERFORMANCE Once installation is complete, remove any remaining Re-fit light housing to the ceiling bracket assembly packaging from the light fitting. It is now ready to be using hardware set aside in earlier steps. switched on* T-MINI SURFACE CLEANING T-Mini looks best when dusted regularly.
