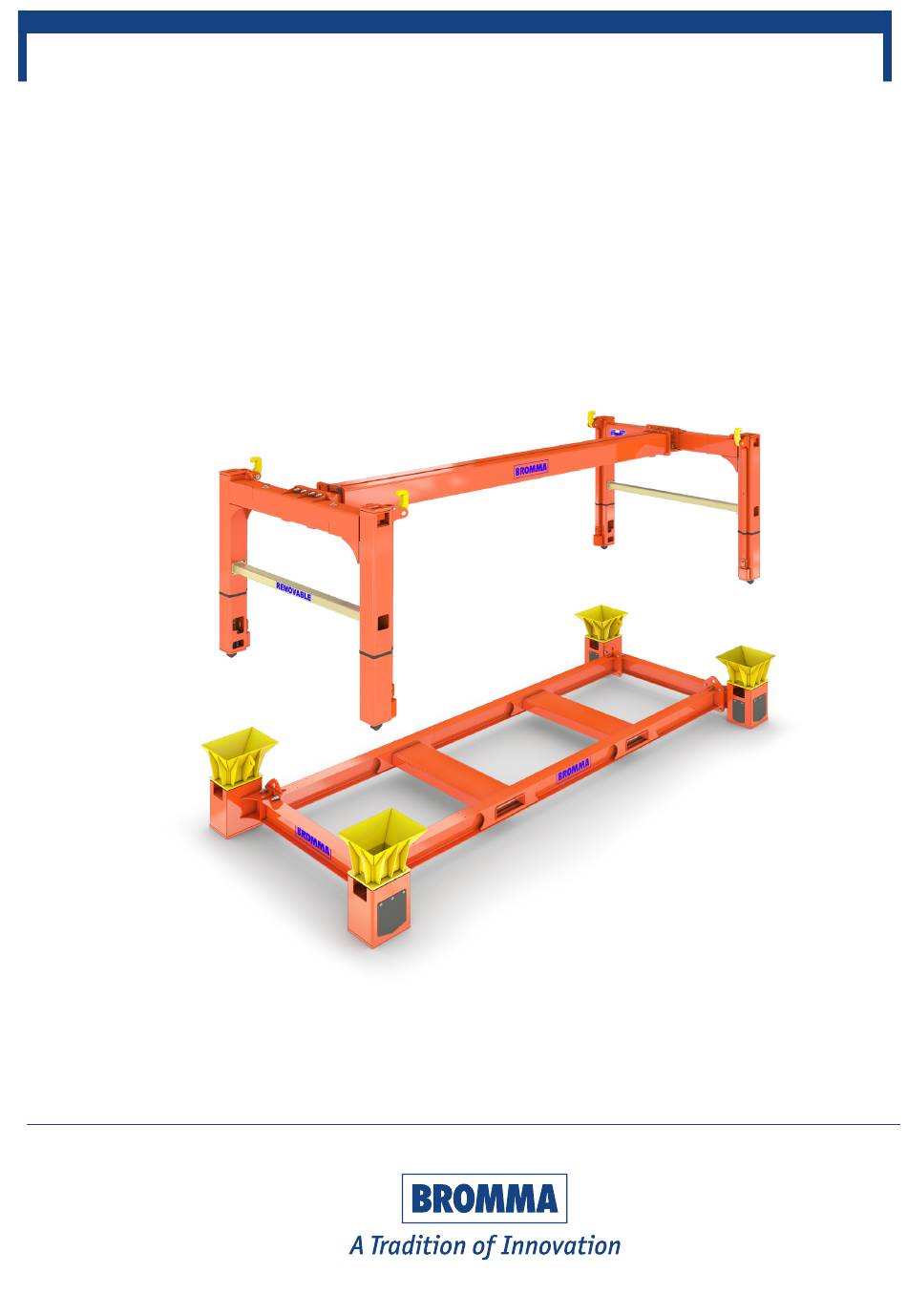

- Page 1 SPREADER AT TACHMENT OSR45 OVERHEIGHT FRAME Revision date: 2016-06-03...
-
Page 2: Product Information
The OSR45 can be attached under any parent spreader The OSR45 is as standard delivered in a demounted form with ISO standard base measure which is equipped with in a 20 foot container for easy on-site mounting, thus Bromma overheight frame lifting lugs (can be ordered reducing transportation costs. -
Page 3: Technical Features
The OSR45 is available in different colours but will be delivered in RAL2004 (orange) as standard, unless specified otherwise. The OSR45 has two short side profiles and one tele- scopic 20 to 45 foot beam that are bolted together. The telescoping runs on glide plates and follows the parent spreader telescoping. - Page 4 OSR45 - CONNECTING THE OSR45 TO A SPREADER CONNECTING THE OSR45 TO A SPREADER To pick up the overheight frame from the storage fixture the spreader needs to land on the overheight frame and then do the twistlock ‘lock’ plus ‘unlock’...
- Page 5 OSR45 - DISCONNECTING THE OSR45 FROM A SPREADER DISCONNECTING THE OSR45 FROM A SPREADER When the operation with the OSR45 is completed, the overheight frame needs to be put back on the storage fixture in order to be disconnected from the spreader.
- Page 6 Each twistlock incorporates a landing pin with a mechanical interlock to prohibit unlock operations when under load, similar to the Bromma spreaders. The twistlock pins are proof load tested to 40 metric tons. An index unit makes the overheight frame twistlock move fully 90°...
- Page 7 OSR45 - STORAGE FIXTURE TRANSPORTATION STORAGE FIXTURE TRANSPORTATION The storage fixture can be lifted by the spreader to- gether with the overheight frame with the twistlocks in locked position. It can also be transported by a fork lift truck or locked to a trailer.
- Page 8 OSR45 - CARGO SPACE LIMITATION CARGO SPACE LIMITATION NOTE! The legs of the OSR45 may intrude into the cargo space according to the figure below (measurements are in mm). 40' = 12192 11630 Leg footprint...
- Page 9 TECHNICAL DATA – OSR45 Lifting capacity 51 metric tons evenly loaded (According to EN13001 HC2, HD1, U6, Q3 51 metric tons ± 10% eccentric loaded (600,000 cycles) Tare weight Overheight frame 1.80 m: About 2.30 metric tons Overheight frame 2.25 m: About 2.42 metric tons Overheight frame 2.50 m: About 2.50 metric tons...
- Page 10 DIMENSIONAL DRAWINGS – OSR45 Dimensional drawings of OSR45. We reserve the right to change the design and technical data without prior notice. © 2016 Bromma – All rights reserved.
- Page 11 POSSIBLE ACCESSORIES OSR45 OSR45 can be equipped with one or several possible accessories. LEG LENGTHS INRS LATCH The OSR45 has the following available leg lengths: For spreaders with INRS, a special designed latch is ● 1.80 m (standard) required on the OSR45, in order to reach higher up.
- Page 12 We reserve the right to change the design and technical data without prior notice. © 2016 Bromma – All rights reserved. sales@bromma.com www.bromma.com...
