Modern Classic KROSSWOOD Assembly Instructions

C A B I N
B y M o d e r n C l a s s i c
Assembly Instructions

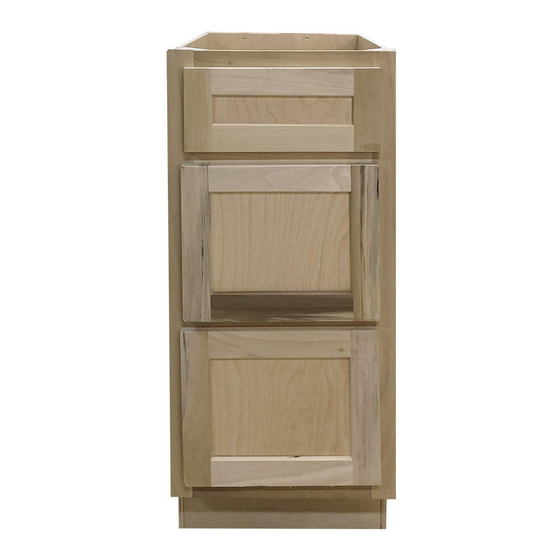

Base/Vanity with 3 Drawers
Wood Glue
:

Tools needed but not provided

Wood Cam-Lock
Cam-Lock
¾" Screw ½" Screw
Dowel Screw Nut
Front Cross
4 ½" Toe Kick
Brace X 3
Drawer Bottom
Left Panel
X 3
Cabinet Bottom
Right Panel
E T S
*Push all the way in
until less than 3/8" of
dowel is exposed
Rubber Mallet
Phillips
Screwdriver
Bumpers
Drawer Slides
Back Cross
X 6
Brace
Drawer Front
X 3
Drawer Back
X 3
Drawer Side
Back Panel
X 6
Cabinet
Bottom
Insert dowels
after glue drops
*Place 2-3 drops of glue in side
panel holes before attaching Cross
Braces, Toe Kick, Cabinet Bottom
and Back Panel
Left Panel
Right Panel
*Screw in Cam-Lock Screw until
Do not put glue directly
*
threads are no longer visible for
on the dowel *Place 2-3
both Right and Left Panels
drops of glue in the hole
X 16
before inserting each
dowel
Right
Panel
1 2
*Set and screw in 6 Drawer Slides
for both Right and Left Panels
3 4
Left
Panel
X 12
Backset 1/8"
Back Panel
Cabinet
Bottom
