Horizon Home Furniture H8245-45-BT Assembly Instructions

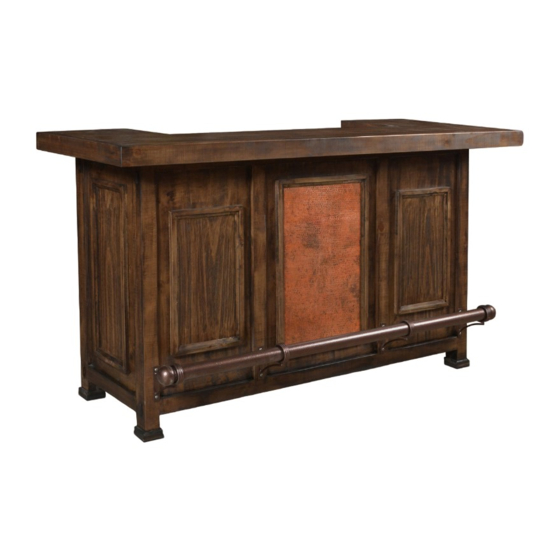

Copper Canyon Bar
ASSEMBLY INSTRUCTIONS

TECHNICAL SPECIFICATION

SKU: H8245-100-BT
DESCRIPTION: Copper Canyon Bar

Important safety instructions:

* Please carefully read all instructions before assembling.
* For your safety, assembly by two or more adults is
recommended.
* keep instructions for future use.
Pre-assembly:
* Do not discard any contents until after assembly is complete to
avoid accidentally discarding small parts of hardware.
*Remove parts and hardware from box along with any plastic
protective packaging.
parts
1. Bar Top
2. Bar Base
hardware
1. 6 Bolts
2. 6 Nuts
For customer support call (480) 998 1028

Bar Assembly

1.
ALING BAR TOP TO BAR BASE.
2.
ATTACH THE BAR BASE TO THE BAR TOP WITH THE HARDWARE.
3. ALING BOLTS AND NUTS TO BASE AND TOP.(AS SHOWN IN DETAIL).
4. TIGHTEN BOLTS . ( DO NOT OVER TIGHTEN )
1. 2.
www.horizonhomefurniture.com
3. 4.
DETAIL
