1. Setting up

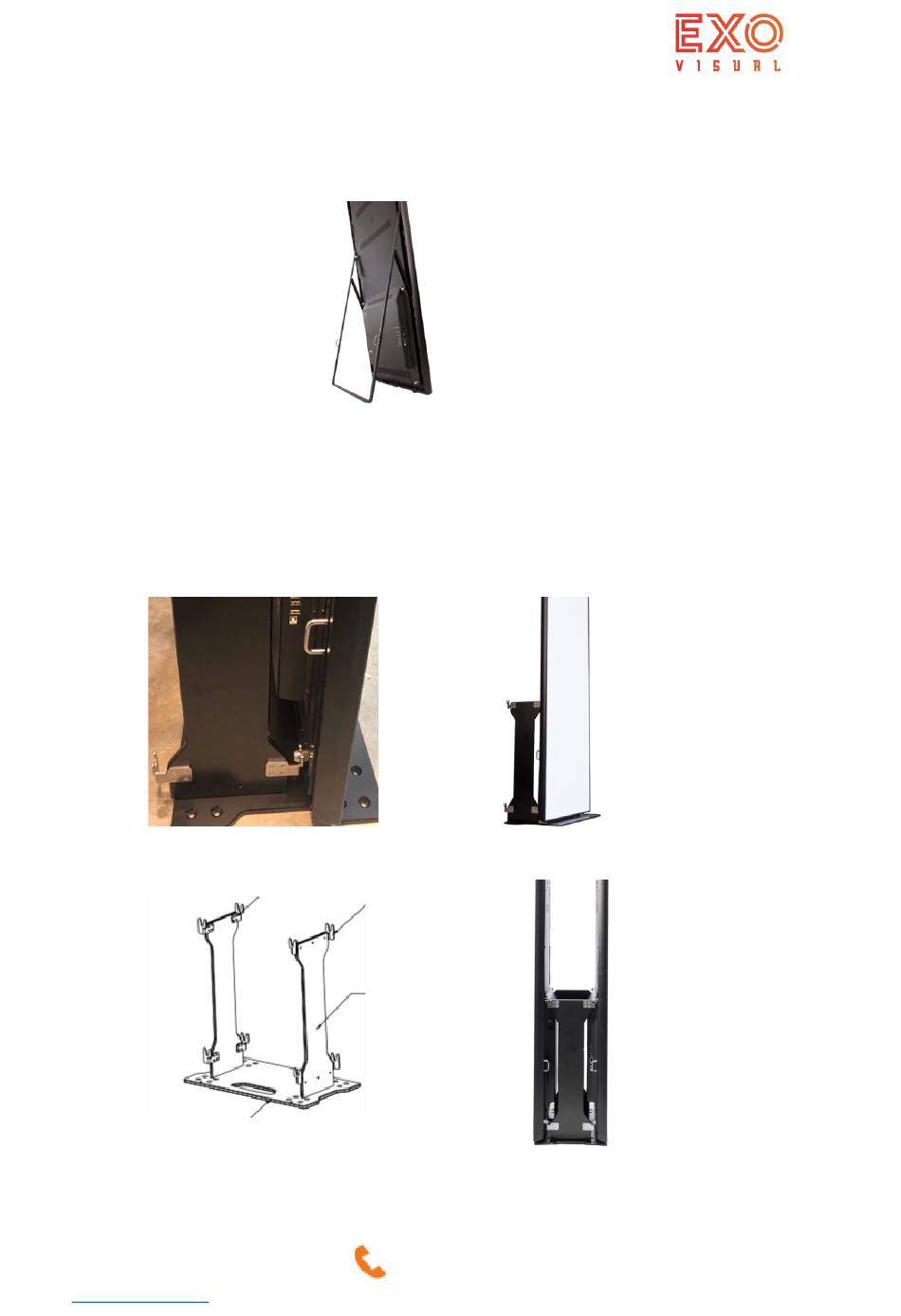

1.1. Free Standing: Place the device on a flat floor, fully Pull out the kick stand
1.2. Set up with upright base stand
1.2.1, Set up the upright standing base. Bolt 3 screws on each side of the base plate from the
bottom. Be aware of different position of screws for single or double-sided installations. Screws
(and/or screwdriver) provided.
1.2.2, Assemble the toolless billets onto the ezPoster if the billets are not pre-installed.
1.2.3, Set the LED display(monitor) on the stand so it sits in top and bottom billets. (Better to
have 2 people handle it even though one person is doable).
EXO Visual Inc
www.exovisual.com
ezPoster Quick Start Guide
Single-side installation position
Double-side installation position
+1 833 733 7427
V3.1
Advertisement
Summary of Contents for EXO Visual ezPoster
- Page 1 Be aware of different position of screws for single or double-sided installations. Screws (and/or screwdriver) provided. 1.2.2, Assemble the toolless billets onto the ezPoster if the billets are not pre-installed. 1.2.3, Set the LED display(monitor) on the stand so it sits in top and bottom billets. (Better to have 2 people handle it even though one person is doable).
- Page 2 Connection plate: use connection plate horizontally between the ezPosters to form a larger screen when needed. Power on the ezPoster: After setting up the device, plug the power cable, switch on the power button, power indicator light will turn on once power is on.
- Page 3 2.2 Connect through the Built-in WiFi Access Point The EXO ezPoster has built-in WiFi and it’s turned on by default. In this mode, the ezPoster works as a Wireless router, computers or smart phones can be connected to it through this WiFi.
- Page 4 3.1. Control ezPoster from the windows laptop. 3.1.1, Download the software from https://www.exovisual.com/support/ and open the software. Connect the ezPoster with USB Type A - Type B cable or through other connection method. The connected EXO ezPosters will show up in the Devices list.
- Page 5 Select the program and right click, a context menu will popup. You can edit, delete and export programs from there. EXO Visual Inc +1 833 733 7427 V3.1 www.exovisual.com...
- Page 6 Export, the program can be exported to a file and then be imported to an ezPoster through the software import function under program. Export to USB Drive, the program can be exported to a USB Drive then be displayed by plugging in the USB Drive directly onto an ezPoster.
- Page 7 USB drive” function under Tool menu. Input the network settings and export to the USB drive, then plug the USB drive to each ezPoster directly, the network of ezPosters will be set up with the data stored in the USB drive.
- Page 8 By click test mode and select the target color, the ezPoster will display the color selected. Color temperature default setting is 6500. It can be changed on the slider.
- Page 9 When a smart phone is connected to the ezPoster through the ezPoster built in WIFI Access Point or through an external router, the devices will be listed on the front page of the EXO ezPoster app. Click on the device, the device control page will show up.
- Page 10 3.2.3, Program name： the name of the program uploaded into the ezPoster from the internal storage. 3.2.3.1, Click to enter Program name. All programs uploaded will be shown in the list. 3.2.3.2, Click “+” to add more program. 3.2.3.3, Width. Select how many ezPosters on the width the content is to be displayed with. Select OK to go to the content upload page.
- Page 11 3.2.5.3, Test mode. By clicking test mode, patterns of White, Red, Green, Blue and rotating of White, Red Green and blue will be available for selection. 3.2.5.4, Restore to factory default. Data input or edit on the ezPoster will be erased when restore to factory default.
