Summary of Contents for hitin RTT8

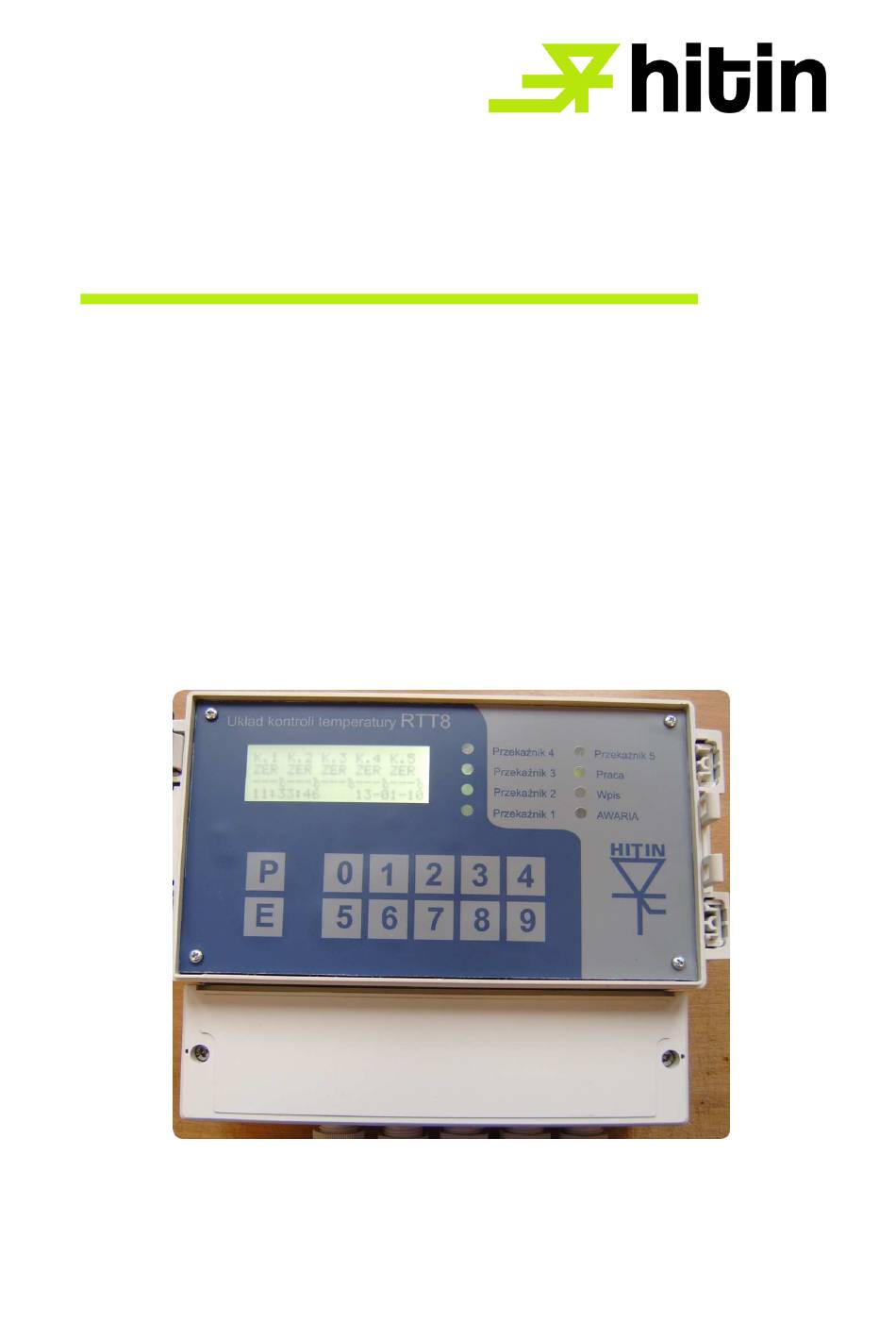

- Page 1 HiTiN Sp. z o. o. 40 – 432 Katowice, ul. Szopienicka 62 C Tel/fax.: +48 (32) 353 41 31, +48 (32) 601 20 60 www.hitin.pl Temperature control relay RTT8 Katowice, 2003r. V27.04.2012...
- Page 2 Fasten the device with three M5 screws through the holes in the bottom part of the housing. RTT8 ought to be used and kept away from water, conducting or not conducting dusts, explosive, inflammable and chemically active gases, dusts and vapours. Connect protective earth, power supply, and the sensors.
-
Page 3: Operation
If sensor temperature exceeds TxH, relay will be automatically switched off. After the temperature has dropped below TxL, relay will be switched on again. If the input sensor is short connected or has been torn out, RTT8 reacts as if the temperature has been exceeded and switches the relay off. Relay 4. - Page 4 If fields X.7 and X.3 have been filled out with digit 1, both relays (4 and 5) are inactive. Original configuration of code K45 is set as 0010 0010. 7. Short operation manual. After power supply has been switched on info about the company is displayed, followed by the test of the system (after 2 sec.).
- Page 5 W ł ł ł ł ł °c °c °c °c °c c) after pressing (E) the field appears there you should set a new time from keyboard. After setup a new time press (E) to setup a new date. d) after setup a new date press (E) to save data to memory. Device will inform about saving a date and it will return to main menu.
- Page 6 green lamp – normal operation yellow lamp – indicates data transfer to an outside computer red lamp - error Dwg. 1. Arrangement of basic elements on the pcb...
- Page 7 2 1 6 1 8 4 Dwg.2. Housing dimensions.
- Page 8 Dwg.3. Typical RTT8 connection by Pt100 sensors...
- Page 9 Dwg.4. Position of the mounting holes...
