Summary of Contents for EVH MFG HARDEE Typhoon 8800S

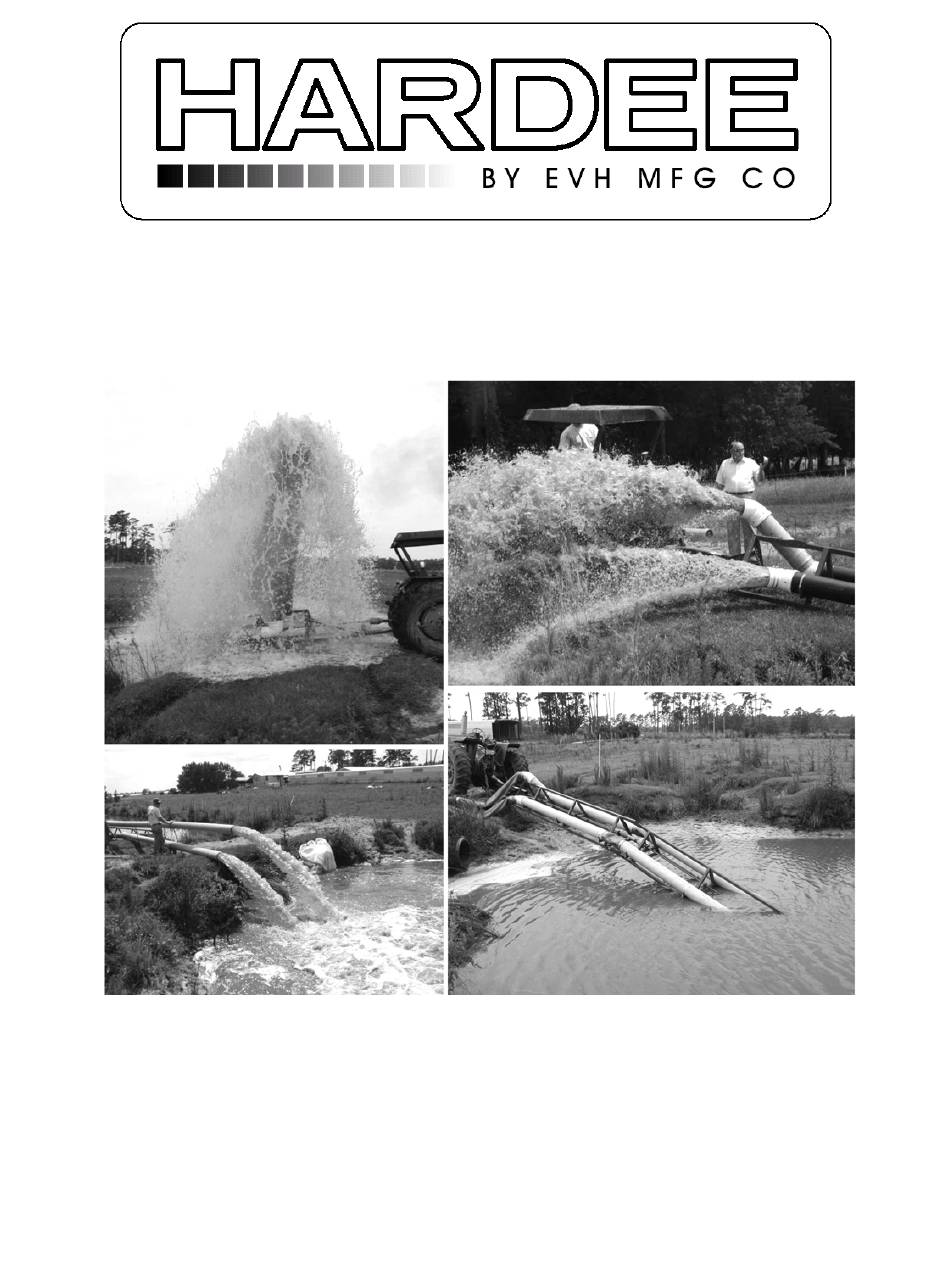

- Page 1 4895 RED BLUFF RD LORIS, SC 29569 (843) 756-4051 WWW.EVHMFG.COM EVHMFG@SCCOAST.NET OPERATOR’S AND MAINTENANCE MANUAL WITH PARTS LISTING TYPHOON 8800 HIGH VOLUME WATER PUMP...
- Page 2 MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Page 4 Assembly Instructions Page 5 Safety Precautions Page 6 Operating Instructions Page 7 Maintenance and Storage Page 8 Optional Equipment Page 9 Parts Listing Page 10 Appendix 1 Page 17 Limited Warranty Page 18... -
Page 4: Introduction
TO THE PURCHASER: The care you give your new HARDEE High Volume Water Pump will greatly determine the satisfaction and service life you will obtain from your new pump. By observing the instructions and suggestions in this manual, your pump will serve you for many years. As an authorized HARDEE Dealer, we stock genuine HARDEE parts, which are manufactured with the same precision and skill as the original equipment. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Shipping Position · Install 1/2 x 3 3/4-inch grade 5 connecting bolt (2) 10076 and lock nut (9) 10176. Due to freight shipping requirements your Hardee pump Note: Grade 5 bolts can be identified by three will arrive to you in our “shipping position”. This will slashes on the bolt head. -
Page 6: Safety Precautions
Driveshaft Installation on PTO · NEVER direct the discharge water of the pump at ! WARNING ! bystanders or at the tractor. · NEVER allow horseplay in the vicinity of the tractor Never attempt any checks, repairs or adjustments with and pump, while the pump is operating. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Operating Configuration Optional Setup – With Blue “Lay-Flat” Hose Before continuing with the assembly of the water · Insert hose adapter (38) 70140 into male end of diversion parts for your Hardee pump. You will need to elbow (27) 11825 using a good quality PVC primer consider the final operating position of your pump and and PVC cement. -
Page 8: Maintenance And Storage
MAINTENANCE Moving Into Pump Site Like any mechanical device, the pump requires basic With the pipe sections correctly installed on the pump, maintenance and upkeep. With regular lubrication and carefully back your pump into the water. The Hardee proper maintenance, the Hardee pump will provide long water pump is designed to be a rugged piece of farm service and trouble free performance. -
Page 9: Optional Equipment
STORAGE Proper storage will add to the life of your water pump, and assure its being in good condition for the next season. The following procedure is recommended: · Clean off all foreign matter and thoroughly lubricate all bearings. · Repaint the pump where the original paint has worn off. -
Page 10: Parts Listing
Parts Listing For Typhoon High Volume Water Pump 8800 Item Description Part Number 10017 Hex Bolt (5/16" X 1" Gr. 5 Plated) 10076 Hex Bolt (1/2" X 3-1/2" Gr. 5 Plated) 10094 Hex Bolt (5/8" X 3" Gr. 5 Plated) 10096 Hex Bolt (5/8"... -
Page 17: Appendix 1
APPENDIX 1 Bolt Torque Checking Bolt Torque The tables shown below gives correct torque values for various bolts and capscrews. Tighten all bolts to the torque specified in the chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with the same strength bolt. -
Page 18: Limited Warranty
Warranty Hardee by EVH HARDEE LIMITED WARRANTY Hardee warrants its Equipment (* Except Hydraulic Mowers) for one year to the original non- commercial, non-governmental, or non-municipal purchaser. And warrants for 90 days to the original commercial, industrial or municipal purchaser, that the goods are free from defects in material or workmanship. - Page 19 NOTES:...
- Page 20 EVH MANUFACTURING COMPANY 4895 RED BLUFF ROAD LORIS, SC 29569 PHONE: 843-756-2555 WWW.EVHMFG.COM EVHMFG@SCCOAST.NET...
