Army Aviation
TCS/TSS series
platform scale
manual
1


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Army Aviation TCS Series

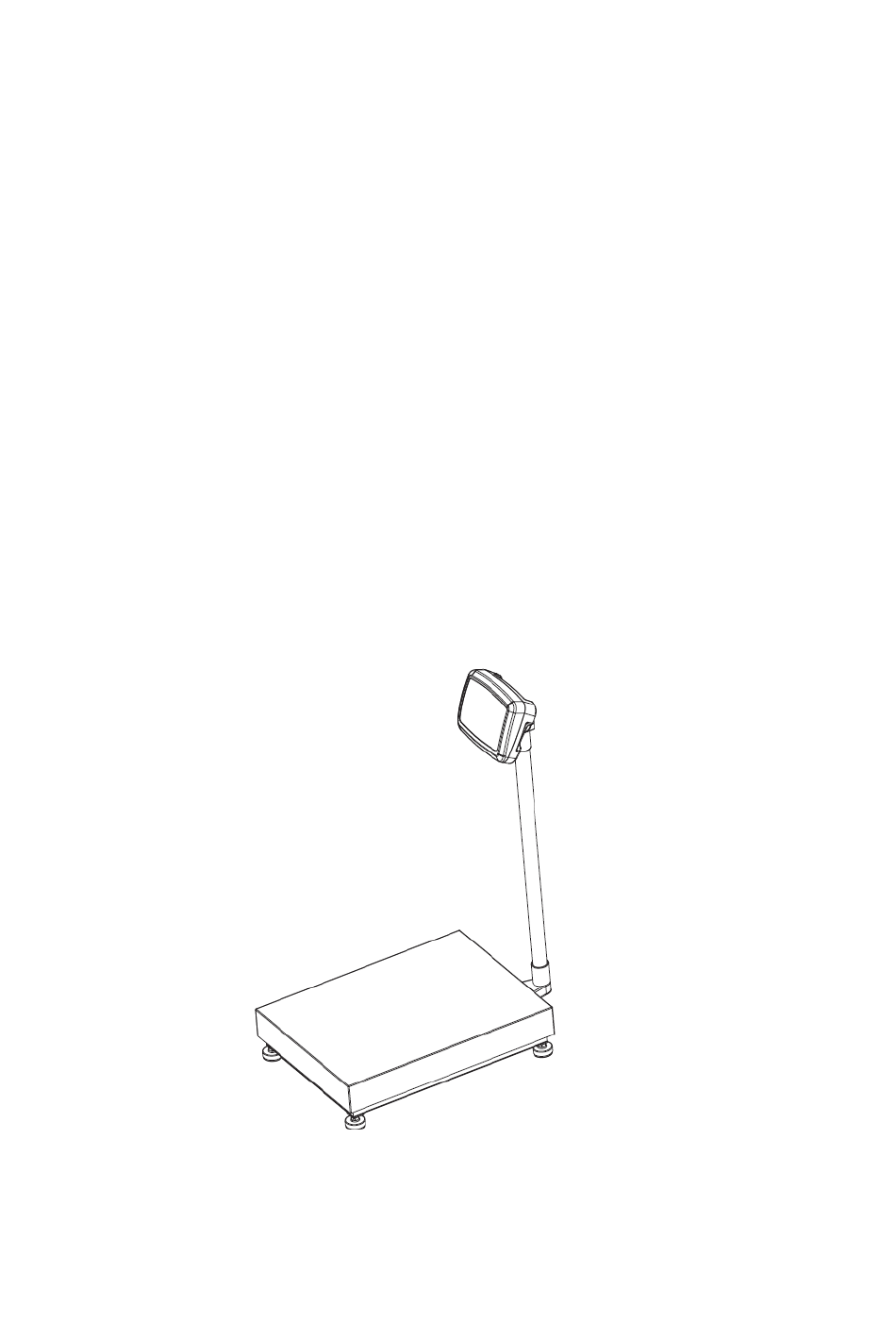

  • Page 1 Army Aviation TCS/TSS series platform scale manual  ...

  • Page 2: Table Of Contents

    CONTENTS 【1】ATTENTION…………………………………………3 1.1 CONVENTIONAL ATTENTION 1.2 ATTENTION BEFORE USING 【2】INSTALLATION……………………………………..4 BODY INSTALLATION BATTERY REPLACEMENT 【3】INSTRUCTION………………………………………6 PARAMETERS POWER SUPPLY CONNECTION BETWEEN LOAD CELL AND INDICATOR 【4】DISPLAY…………………………………………….7 PANEL DESCRIPTION KEY DESCRIPTION DISPLAY DESCRIPTION 【5】INDICATOR OPERATION………………………….9 【6】RS232 SETTING … ……………………………….16 【7】ERROR MESSAGES ……………………………..17 【8】WARRANTY………………………………………..19  ...

  • Page 3: 1】Attention

    First of all, thank you for purchasing the Army Aviation SCT series electronic counting scale of our company. The high quality and reliability of the product will make you satisfied. By means of the product, you will be able to fully realize the high quality and reliability of our scale, and believe that our product can fully meet your requirements.

  • Page 4: Attention Before Using

    1.2 ATTENTION BEFORE USING 1. Locate the scale on a clean, firm working table with flat surface to keep away from vibration, heat sources, or rapidly changed temperature. Adjust the 4 leveling feet so that the bubble is centered in the circle and be sure the scale is level each time after its location is changed.

  • Page 5: Battery Replacement

    T and U fixture Indicator and Adapter 2. Locate the scale’s body on firm and horizontal ground with the flat surface , adjust the feet to keep the scale stable and level as when the bubble is centered in the circle. 3.

  • Page 6: 3】Instruction

    【3】INSTRUCTION 3.1 PARAMETERS Accuracy：III Precision：(3000-300000）d Sample Rate: 20 times/Sec. Resolution：1 million 3.2 POWER SUPPLY AC Adapter：Input 100V~240V，Output 12V/1A Battery Specification: 6V/2.8AH 3.3 Connection between load cell and indicator Load cell connection by 5 pin plug as shown as the following description: PIN 1:Excitation power supply+（E+）...

  • Page 7: 4】Display

    supply-（E-） PIN 3:Output signal+（S+） PIN 4:Output signal- （S-） PIN 5：Ground connection(GND) 【4】DISPLAY 4.1 PANEL DESCRIPTION TCS/TSS Panel Description：AC-charge lamp is connected with adapter to light up. When it is red, battery is charging; it is green, battery has been charged. In general, battery charge takes 12 hours.  ...

  • Page 8: Key Description

    4.2 KEY DESCRIPTION 【 M+/SMPL 】 ： perform weighing cumulative function or perform sample function when the unit is PCS or %. Press it for 3 seconds to enter function setting mode. 【MR/CAL】：display again the cumulated messages and long press it for 3 seconds to enter external calibration mode. 【TARE】：perform tare function, tare full capacity and display when it is stable.

  • Page 9: Display Description

    4.3 DISPLAY DESCRIPTION          Description Description Stable symbol Battery Symbol Zero symbol Simulation strip symbol -Symbol Unit symbol NET Symbol 【5】INDICATOR OPERATION 5.1 TURN ON/OFF INDICATOR ： press 【 】 key to display software version number and specification on screen, then enter weigh mode.
  • Page 10 The accumulative function can be performed by pressing 【M+/SMPL】key ，the most accumulated times is 99. Note ： Only when the stable symbol is displayed, the accumulative function can be performed. The accumulative function must be performed after zeroing the previous accumulated value.
  • Page 11 2. Press【MR/CAL】key to display“M-XX”for 1 second and then display “the accumulated weight value” for 1 second 。 3. Return by itself in weigh mode. 5.3 CLEAR ACCUMULATION FUNCTION Clear Accumulation Function can be used to clear the accumulated results and the accumulated value each time. 1.
  • Page 12 5. Corresponding sample quantity, press【M+/SMPL】key to finish the sample. 5.5 % MODE TCS scale has % sample function. 1. In weighing mode, press【MC/UNIT】key to change in % mode. 2. Put some samples on pan. 3. Press【M+/SMPL】key to display“S- 5” 4. Press 【 ZERO 】 key to select 5,10,20,50,100,200,500,1000 circularly.
  • Page 13 1. In the condition of power on, hold on 【redisplay/calibration】 key for 3 second and enter in calibration mode to display“CAL”. 2. Confirm no load on the pan and press【M+/SMPL】key to perform zero point calibration ,display “zero” on screen, then display “value of weight to load”. 3.
  • Page 14 1. In the condition of power on, hold on【MC/UNIT】key for 3 seconds to enter in unit setting, display “UNITSET” and “on g” again on screen. 2. In the condition of power on, hold on【MC/UNIT】key for 3 seconds to enter in unit setting, display“UNITSET” and “on g”...
  • Page 15 2. Press 【TARE】 key to move and press 【ZERO】 key to change digit. (a) BAUD RANGE 0 ~9 the higher the value, the better the filter effect (b) SMOOTHING ANTI-VIBRATION 0 ~9 the higher the value, the better the filter effect (c) 0 (d) ZERO TRACKING RANGE 0 ~9...

  • Page 16: 6】Rs232 Setting

    【7】RS232 SETTING 7.1 RS232 CONNECTION DB9 plug is used to connect with other device for communication. The pins are distributed as follows: PIN2=TXD，PIN3=RXD，PIN5=GND Set mode: 8 data bits, no parity, 1 stop bit, baud rate adjustable. 7.2 RS232 SETTING (a) 0=9600 1=19200 (b) 0=continuous output 1=stable output...

  • Page 17: 7】Error Messages

    7.3 RS232 FORMAT Continuous, press key and stable print format: 5.00kg G Gross weight 0.00kg T Tare weight 5.00kg N Net weight Accumulative print format: 01 : 5.00 kg The first accumulated output 02 : 5.00 kg The second accumulated output 5.00 kg The third accumulated output TOTAL : 15.00 kg...
  • Page 18 Battery Battery is low Charge battery symbol ZEROErr Exceed 20% max. capacity Take down the load M-Err Zero load can’t objects, accumulate before zeroing zeroing, clear the accumulate times accumulated time exceeded -ERR-1 The zero point is less than Put the pan on and -20d turn on again Not zeroing Hostile working condition...

  • Page 19: 8】Warranty

    【10】WARRANTY Thank you for using our products. We shall supply good service after sales and solve your problem in time in the future. During one year warranty period, repair or at it option, replace any component(s) that proves to be defective at no charge exclude the artificial damage, in the meantime you must show the invoice and valid warranty card of product to our service center.

This manual is also suitable for:

Tss series
