Summary of Contents for SYNTECHTRON TC6B

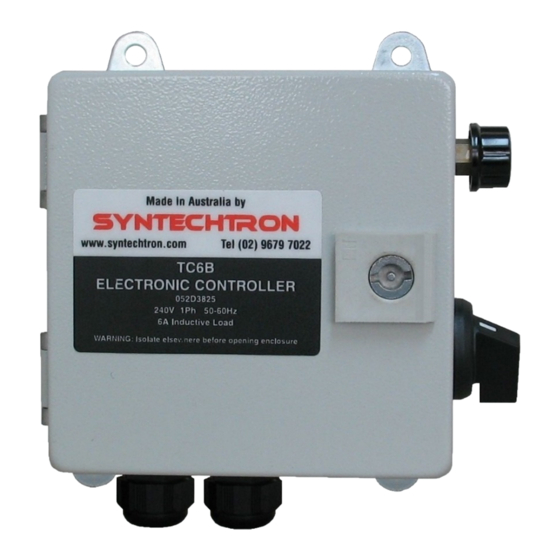

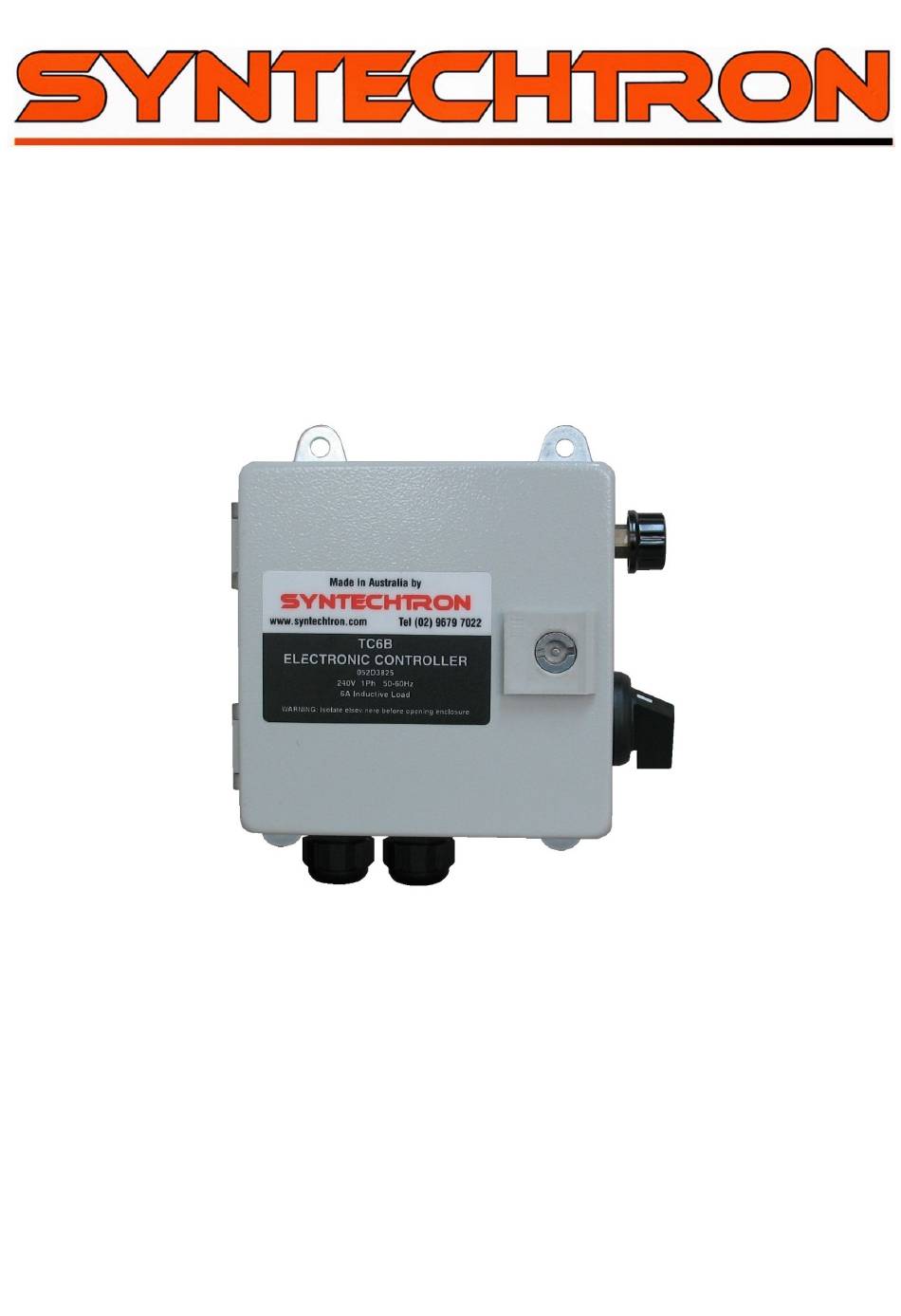

- Page 1 TC6B Variable Rate Electronic Controller Assembly Installation, Operation & Maintenance Manual Page 1 of 12 TC6B IO&M Manual...
-
Page 2: Table Of Contents
Controller Operation* Controller Operation Controller Maintenance* Setting Up Procedure Field Testing the Silicon Controlled Rectifier (SCR) Figure 2.1 – 2.2 Trouble Shooting Recommended Spare Parts List TC6B Controller Assembly Drawing 052D3825 Commissioning Record Sheets Page 2 of 12 TC6B IO&M Manual... -
Page 3: Product Support After Sales
We provide full overhaul services for all sizes of Syntron, ICAL and Transfield feeding, screening and vibratory conveying equipment. Commissioning & Auditing. Commissioning & Auditing are available for all equipment and systems supplied by Syntechtron. Training. Structured equipment training courses On / or Off / Site. -
Page 4: Safety Instructions
General Caution covering a broad spectrum of hazards. Specific Danger restricting access to a hazard. Specific Warning covering Live Circuitry hazards General Warning covering a broad spectrum of hazards. Specific Warning covering hazards in Explosive Environment. Specific Warning covering Electromagnetism Page 4 of 12 TC6B IO&M Manual... -
Page 5: Controller Instructions
2.0 TC6B Controller Instructions – General Instructions SAFETY FEATURES Numerous safety precautions are mentioned through this Instruction Manual, failure to follow these instructions or to heed these precautions may result in serious personal injury or property damage. Although components within the Controller enclosure are IP2X rated “finger safe”, the operator must be aware of the potential hazards associated with... -
Page 6: Earthing
Each SYNTRON Vibrator or Feeder requires a SYNTRON Controller for its operation. The Model TC6B is the standard controller for a rectified current equipment rated up to 6 amperes at 240 Volts. This controller has a double pole single throw switch “OFF” and “ON”, which control the starting and stopping of the vibrator or feeder. - Page 7 Any partial breakdown of an SCR under load conditions can be determined and remedied only by replacement of the defective SCR. NOTE: A portable SCR tester, Part No. 047C0001, is available to perform the above functions. Figure 2.1 Page 7 of 12 TC6B IO&M Manual...
-
Page 8: Trouble Shooting
Clear all build up between the trough and Blown SCR. Build Up or Binding surrounding structure Shorted Turn in the Coil Consult Syntechtron and order replacement coil. Measure Supply Line Voltage. If there is no External Circuitry Feeder Will supply Ensure all external interlocks are removed... -
Page 9: Recommended Spare Parts List
Equipment: TC6B Controller Assembly Part No Description 048E0710 Pot & Switch Label 048E0711 Connection Diagram Sticker 052D3830 TC6B 240 Volts Control Module 102E0257 Terminal Block 103E0058 Cable Gland 116E0189 500 Ω Control knob 118E0310 2 pole 20 Amps Isolator Switch Page 9 of 12 TC6B IO&M Manual... -
Page 11: Commissioning Record Sheets
Drive Cable size mm² Approx run length Flexible Cable clearance from structure Feeder: Suspension Slings Safety Slings Transducer: Fitting Wiring Controller: Supply Connections Interlocks Wiring: Magnet Cable Page 11 of 12 TC6B IO&M Manual... - Page 12 Running loaded at maximum current with Volts maximum gate opening Tonnes per Hour: Minimum Maximum Commissioning Remarks: Commissioned by: Date: NOTE: All voltage and current measurements must be measured with a true R.M.S. meter Page 12 of 12 TC6B IO&M Manual...
