ASSEMBLEY
INSTRUCTION

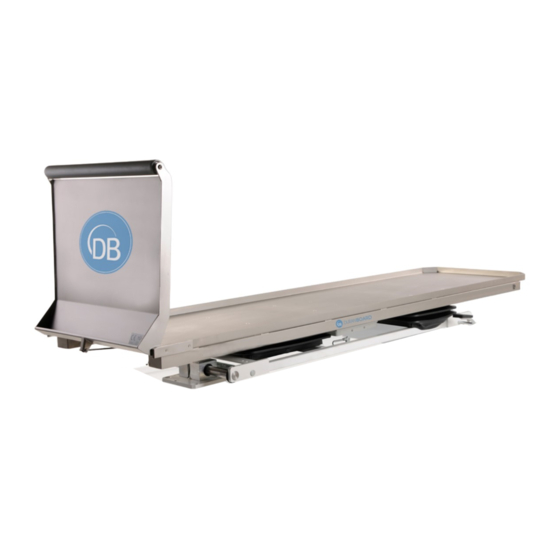

1) General Remarks

• Assembly only by professional staff, e.g. automotive mechanics.
• The DURANBOARD is certified according to EN 1789 (European safety standards).
• The assembler is responsible for sufficient crashworthiness of the attachment in the vehicle and the
assembled stretcher-fixation.
• Please pay close attention to country-related laws and regulations.
• Please pay also close attention to the assembly instruction of the stretcher.
• Complaints caused by improper installation or incorrect operations will be refused.
• Subject to technical changes.
To avoid damages in transit, the loading ramp is packed separately.
• Please assemble in compliance with the following instructions:

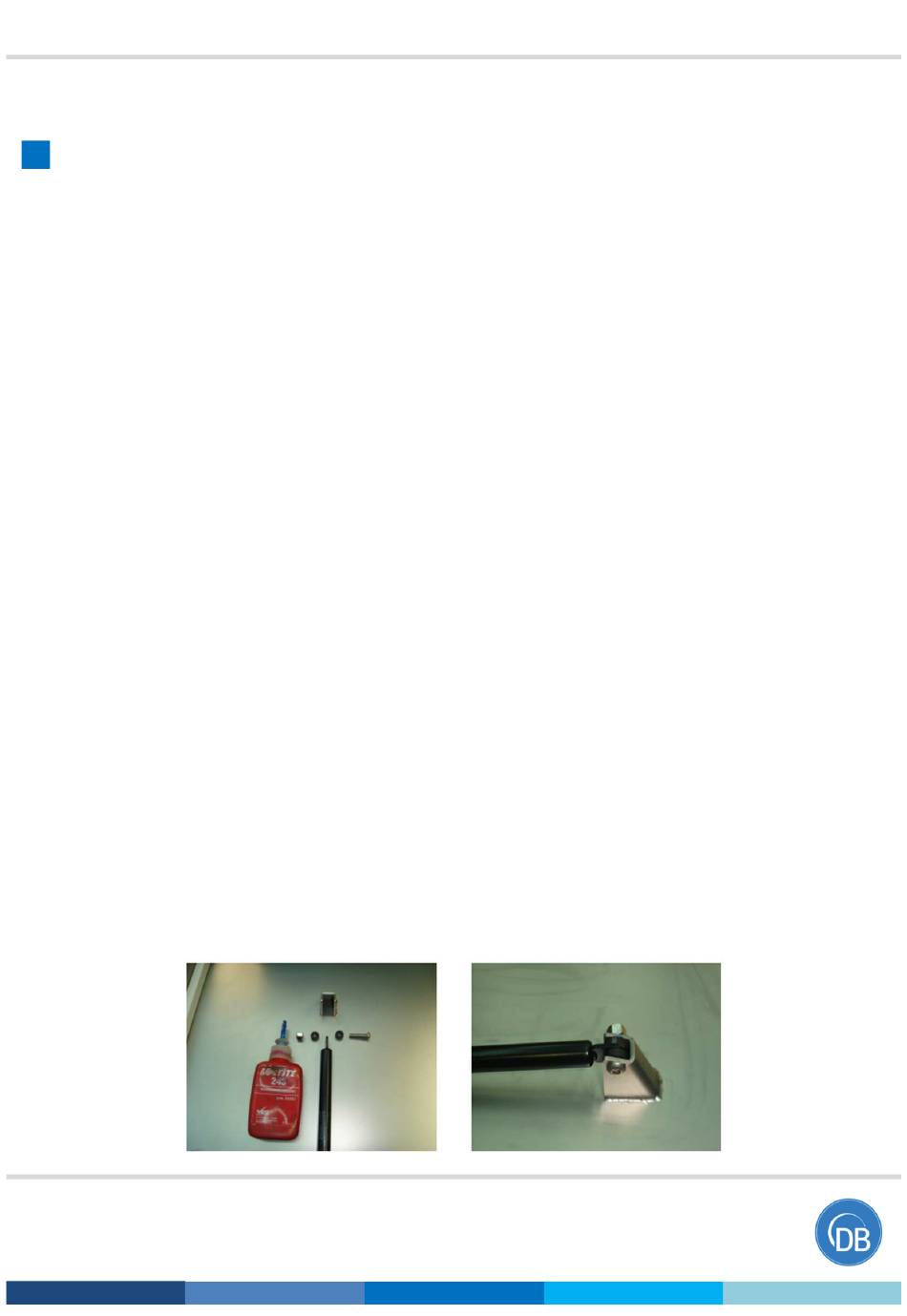

a)
Fit the gas spring to the plate, lock the screw with Loctite 243.
Adress: A-6130, Schwaz, Münchner Strasse 30
Hotline:
+43 676 928 71 07
Email:
info@duranboard.com
www.duranboard.com
