- Page 1 - BLUE SERIES - GENERATOR MANUAL GOAT-DESIGN.JP 2020...
-
Page 2: How To Operate
How to operate - BLUE SERIES - Thank you very much for purchasing GENERATOR. To use this 4. Turn on the power to the connected power amplifier or product for a long time, please read the instruction manual other sound system. Turn up the volume of the amplifier to carefully and use it in the correct way. set the volume, and adjust the EQ and TREBLE BOOST of the GENERATOR. Adjust the EQ and TREBLE BOOST on If you wish to use the GENERATOR immediately, please follow the GENERATOR, and use the CLEAN and PHASE switches the instructions in this chapter. However, we strongly according to the sound you want. recommend that you read the rest of the manual immediately in order to fully understand and use the capabilities of this sophisticated signal processor. 1. Make sure that the power of the amplifier or other device to be connected is turned off before connecting the GENERATOR. Note: Be sure to use the recommended AC adapter. 2. Connect the OUTPUT of the GENERATOR to a power amplifier, mixer line input, or guitar amplifier. If you are using a guitar amplifier, it is recommended to use the low gain input. When using a guitar amplifier, use the low gain input. The tone control on the amplifier or mixer should be set to the center position. 3. Set all EQs in the GENERATOR to the ■ position, and set CLEAN and PHASE to OFF. GOAT BLUE SERIES / GENERATOR... -
Page 3: Controller Description

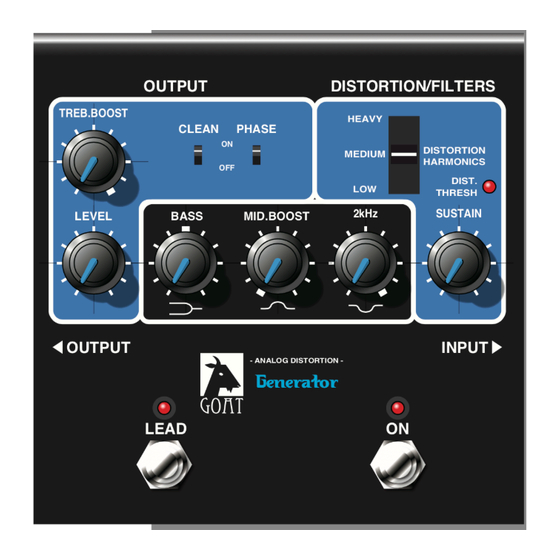

⑦CLEAN: Automatically together. compensates for the loss ③DISTORTION HARMONICS: By of high frequency controlling the signal level input to components when the the distortion circuit and the gain of volume control on the the distortion, a distortion sound guitar side is turned down with rich overtones can be obtained. to obtain a clean sound. ⑤TREBLE BOOST: The ②SUSTAIN: This controls the purpose is to control the sustain and feed pack of the overall treble content and to compressor. roughly compensate for the Note: To suppress feedback at characteristics of the high volumes on stage, turn down amplifier or sound system. the setting. ⑥VOLUME: Adjusts the output level of the master ①INPUT: This is where you volume.。 connect the output from your guitar and keypod. It can be passive or active. ⑩ON/OFF SWITCH: This SW the ⑨LEAD BOOST: During a solo part, use effect on and off. When bypassed, the LEAD switch to boost the volume the TRUE BYPASS setting is further to increase the overtones. unaffected by the internal circuitry. GOAT BLUE SERIES / GENERATOR... -
Page 4: Function Description
LED is constantly lit, turn down the output level of the connected instrument. Lead Switch (LEAD) DISTORTION HARMONICS Used to boost the overtone and high frequency components of the signal by This circuit boosts the gain of the signal input to the distortion circuit in three turning up the volume, such as during a guitar solo. The LED lights up when this steps. This changes the harmonic content of the signal. circuit is active. Pre-Distortion EQ (PRE DIST EQ) Treble Boost (TREB. BOOST) This controls the bass and midrange of the signal before it enters the distortion This effect is similar to the presence control on an amplifier, and is used to circuit. adjust the overall frequency response. It is not intended as a tone control for The BASS controller cuts and boosts the low frequencies by up to 5 dB. the high frequencies only, but as a correction for the final total sound. Normally The MID. BOOST slider boosts the midrange by +10 dB, centered at 600 Hz. set to the 12 o'clock position, this will give you the right response for guitar The 2KHz notch controller adjusts the clarity of the sound and improves the amplifiers and speakers with high frequency enhancement. For sound systems separation of the sound. The effect is subtle, but can be effective when using with flat characteristics (audio, recorders, etc.), the maximum setting may be pickups that have a high midrange component, especially on chords. With appropriate. normal pickups, this feature is not particularly necessary. Note: For best results, set the TREB. BOOST controller to a low setting when Note: If you want to apply post-distortion EQ, use a graphic equalizer or connecting other effects devices in front of the GENERATOR. parametric equalizer after the output of the GENERATOR. Level (LEVEL) CLEAN Adjusts the output level from the GENERATOR. The adjustable range is 15 dB, When turned on, you can change the distortion sound to a clean sound by and at the "maximum" position, the output is about 0.3 Vrms, which is the ideal simply turning down the volume knob on the guitar. It compensates for the high level for driving most effects pedals and power amplifiers. frequencies that are lost when the guitar volume is turned down, and also maintains the volume. GOAT BLUE SERIES / GENERATOR... -
Page 5: Safety Notes
If you are not going to use the product for a long time, remove the batteries to This product should be installed near an electrical outlet and the plug of the AC prevent them from leaking. adapter should be easily accessible. Unplug the AC adapter from the power outlet when not using it for a long time. Do not use an AC adapter other than the specified one. When the AC adaptor is damaged, or when foreign matter enters the product, Do not connect the power cord of the product to the power cord of other or when a problem or failure occurs in the product. electrical equipment. Do not connect to a power outlet that matches the rated Do not do anything other than what is described in the instruction manual for power consumption of the product. repair or replacement of parts. Do not expose the battery to excessive heat sources (sunlight, fire, etc.). Do not bend the AC adapter cord forcibly or place it near a device that Do not apply excessive force to switches and knobs. generates heat. Do not place heavy objects on the AC adapter cord. Do not apply excessive force to switches and knobs, as this may cause Do not place heavy objects on top of the AC adapter cord, as this may damage malfunction. the cord and cause electric shock or fire. Do not use benzine, thinner liquid, compounds, or flame-retardant polishers to clean the exterior. Do not use the product for a long time at a loud or uncomfortable volume. Do not place the product on an unstable surface. Do not place the product on Do not use the product for a long period of time at a loud or uncomfortable an unstable surface, as it may fall and cause injury to the user or damage the volume. If you experience hearing loss or tinnitus, consult a physician. product. Do not insert any foreign objects (flammable objects, coins, wires, etc.) into the Do not climb on top of the product or place heavy objects on it. This product product. may fall or be damaged, resulting in injury to the user or damage to the Do not use or store the product in a place where the temperature is extremely product. high (e.g., in direct sunlight, near a heater, or on a device that generates heat). Do not use or store in a dusty place. Do not use or store in bathrooms or shower rooms. GOAT BLUE SERIES / GENERATOR... - Page 6 Specs - BLUE SERIES - INPUT Impedance ・・・・・・ 2MQ min. Maximum level・・・・・・・・ 4Vrms(+12dBv) Compressor adjustment range ・・・・ 30 dB(30,40,50,60) PREDISTEQ BASS ・・・・・・・ -5dB to +5dB MIDBOOST・・・・・ 0dB to +lOdB 2KHz notch ・・・・ -10dB to OdB PHASENOTCHER Low frequency notch ・・・・・ 250Hz High frequency notch・・・・・ 2.5KHz OUTPUT Impedance ・・・・・・ 470Ω Maximum level・・・・・・・・ 4.5Vrms(+13dBv) TREB. BOOST Range... 20dB continuous Size W126, D126, H50 (mm) Battery 9V alkaline dry cell x1 AC adapter 9V DC center minus 200mA or more This specification is subject to change without notice. GOAT BLUE SERIES / GENERATOR...
