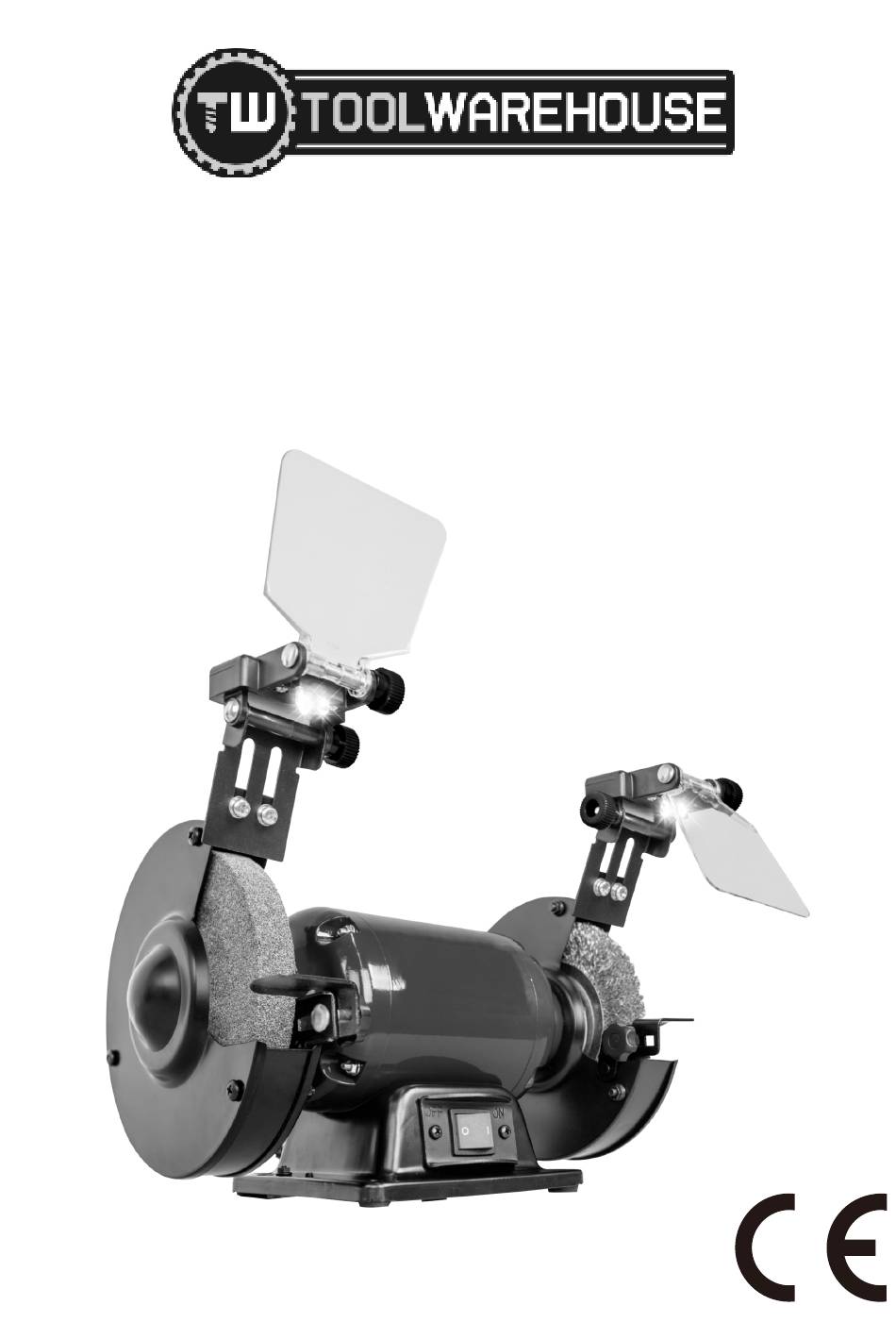

- Page 1 BENCH GRINDER TDS150EBL3...
- Page 4 Explanation of the symbols on the equipment Warning! In case of non-compliance, risk of injury to life, risk of injury or damage to the tool! Warning - Read the operating instructions to reduce the risk of inquiry Wear ear-muffs. The impact of noise can cause damage to hearing. Wear a breathing mask.
-
Page 5: Table Of Contents
Table of contents: Page: Introduction ................6 Layout ..................6 Scope of delivery ............... 6 Proper use ................. 6 Safety instructions ..............7 Technical Data ................9 Assembly ................... 10 Operation ................... 11 Cleaning and maintenance ............11 Electrical connection ..............11 Storage .................. -
Page 6: Introduction
1. Introduction In addition to the safety notices contained in this operating manual and the particular instructions for Manufacturer: your country, the generally recognised technical reg- scheppach ulations for the operation of identical devices must Fabrikation von Holzbearbeitungsmaschinen GmbH be complied with. Günzburger Straße 69 We accept no liability for damage or accidents which arise due to non-observance of these instructions... -
Page 7: Safety Instructions
5. Safety instructions • The machine may only be used, maintained or re- paired by trained persons who are familiar with the machine and have been informed about the dan- Caution! In order to protect yourself from the danger gers. Unauthorized modifications of the machine of electric shock, injury or fire when using electri- exclude a liability of the manufacturer for damages cal power tools, please observe the following basic... - Page 8 11. Do not use the mains lead for purposes for which • Damaged safety equipment and components it was not intended. must be properly repaired or replaced at a • Do not use the mains lead to pull the plug out of competent electrical equipment repair centre the mains socket.
-
Page 9: Technical Data
Delivery plug out of the mains socket. Bench Grinder • Handle the device carefully and treat it with re- TDS150EBL3 spect. Always keep the device clean, dry and free User’s Manual of oil or grease. Technical Data •... -
Page 10: Assembly
7. Assembly Motor Motor V/Hz 230~/50 Input power S2 10 min 400 W Before you connect the equipment to the mains sup- Motor speed 2850 /min ply make sure that the data on the rating plate are Subject to technical changes! identical to the mains data. -
Page 11: Operation
The guard is individually adjustable, as to protect the • Examine the new grinding wheels on cracks or users eyes during grinding process. other visible damages and dispose if necessary. • Mount flange and nut again. 8. Operation • Do not tighten the screw by force. This can cause the grinding wheel to break. -
Page 12: Storage
• Kinks where the connection cable has been im- Old devices must not be disposed of with house- properly fastened or routed. hold waste! • Places where the connection cables have been cut This symbol indicates that this product must due to being driven over.
