Summary of Contents for Fastorq SpinTORQ

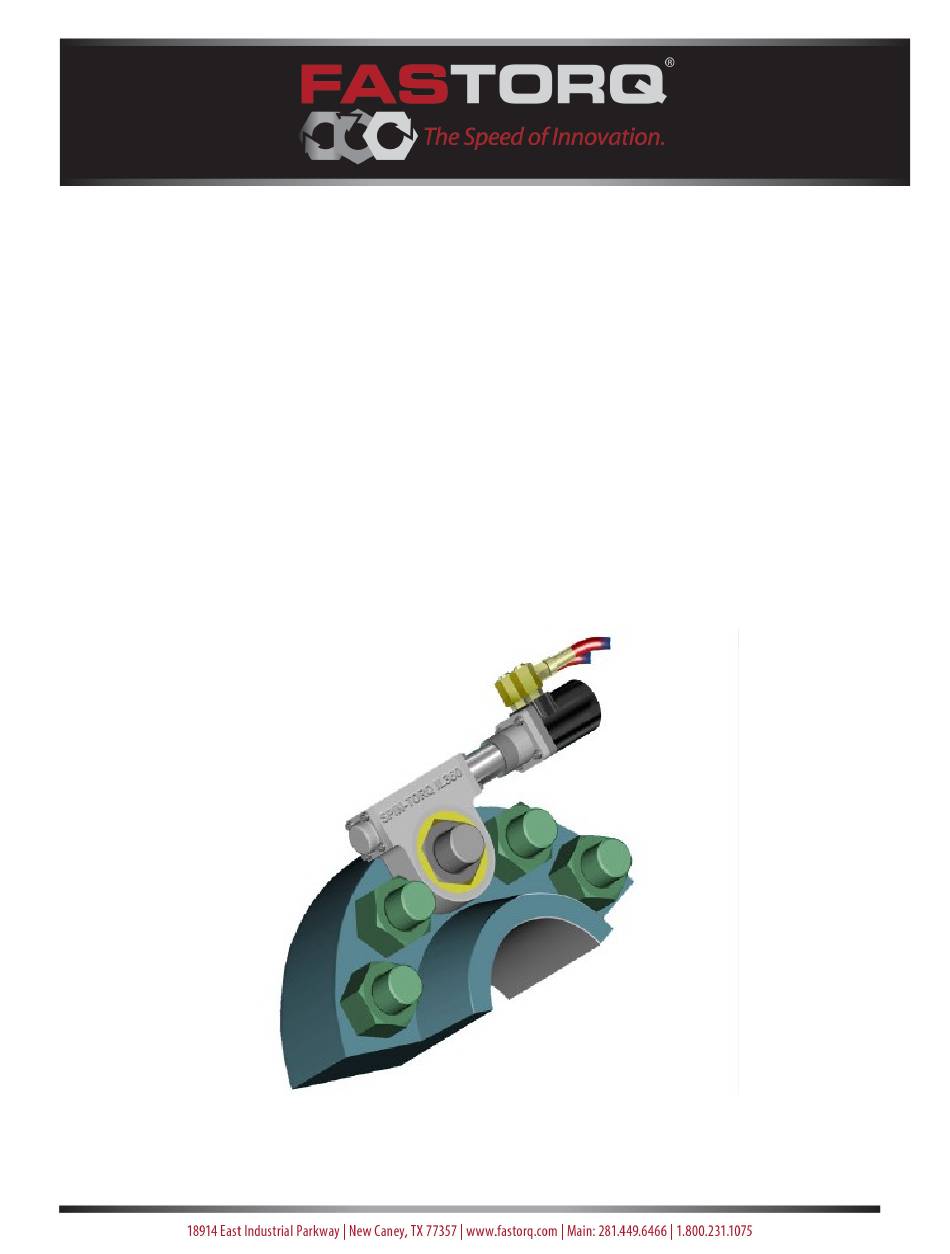

- Page 1 SpinTORQ HYDRAULIC TORQUE WRENCH Operation & Maintenance Guide KEEP FOR YOUR RECORDS...

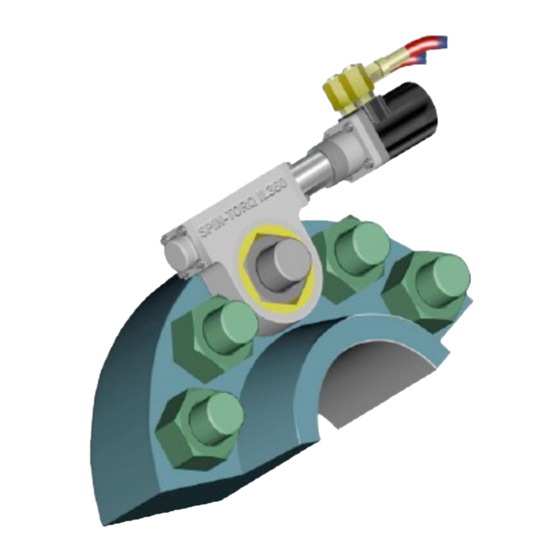

- Page 2 INTRODUCTION The SpinTORQ is a 360 degree, continuously rotating hydraulic torque wrench. It is powered by using external hydraulics such as the tong ® circuit on a drilling rig or the FASTORQ Model 603A SpinTORQ Power Unit. Unit Specifications Air Input Required...
- Page 3 Preset the SpinTORQ Control Unit or 603A Power Unit to the desired torque, and follow the instructions of the control unit. Place the SpinTORQ on the nut and press one of the buttons on the control pendant to start rotation. To reverse direction of rotation, press the other button.
- Page 4 Figure 1 Figure 2...
- Page 5 SpinTORQ DIMENSIONS DIMENSIONS (Refer to Figure 3) TORQUE HEX SIZES RANGE WEIGHT Inches Ft-Lb Inches Inches Inches Inches Inches Inches Inches Inches Lbs. MODEL (MM) (N-M) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (MM) (Kilograms) 1-13/16 200-700 15.50 9.75 3.625 3.281...
- Page 6 FASTORQ 18914 East Industrial Parkway, New Caney, TX 77357 Global 281.449.6466 • US & Canada 800.231.1075 • Fax 281.572.1329 Email: sales@fastorq.com • Website: www.fastorq.com 2013...
