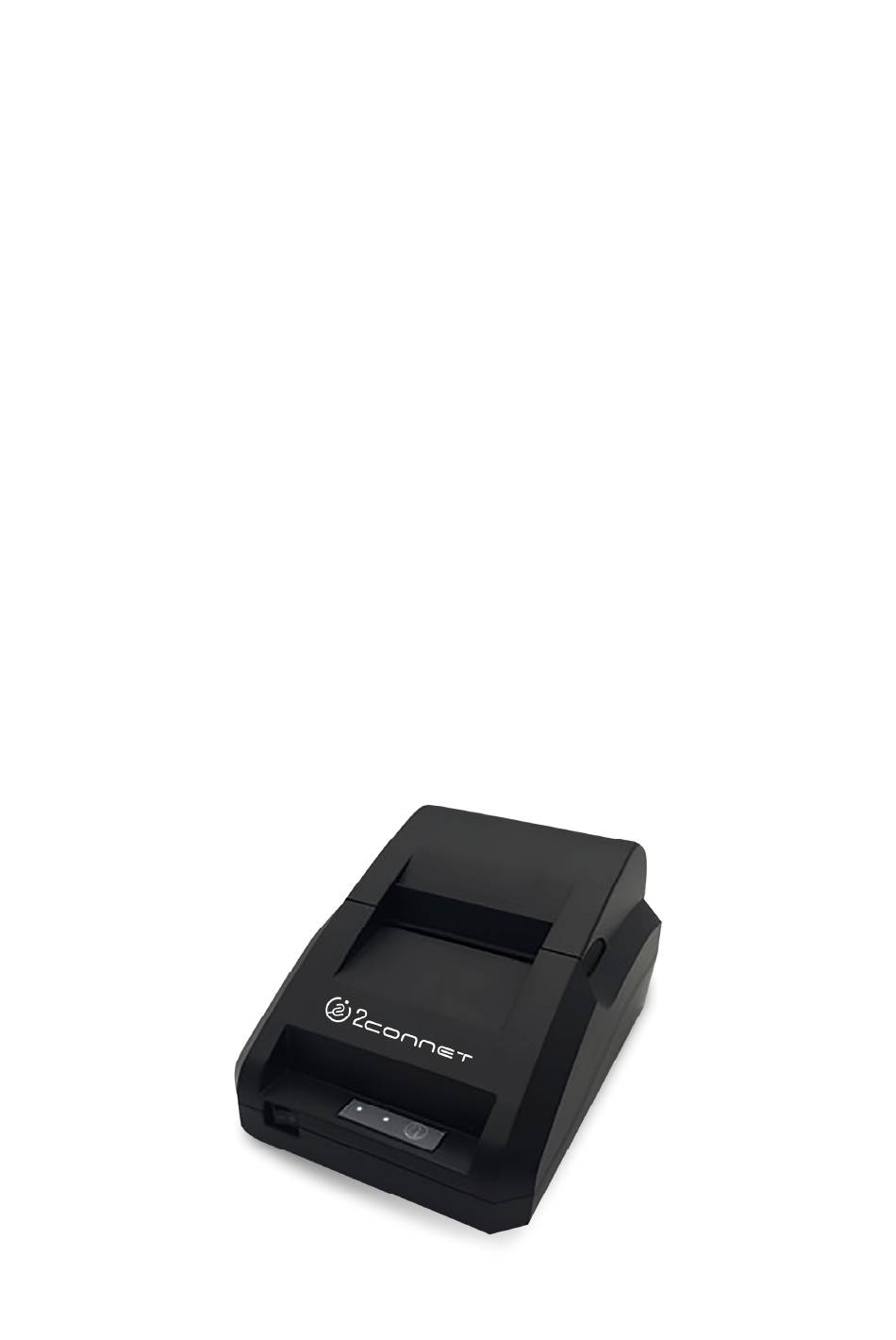

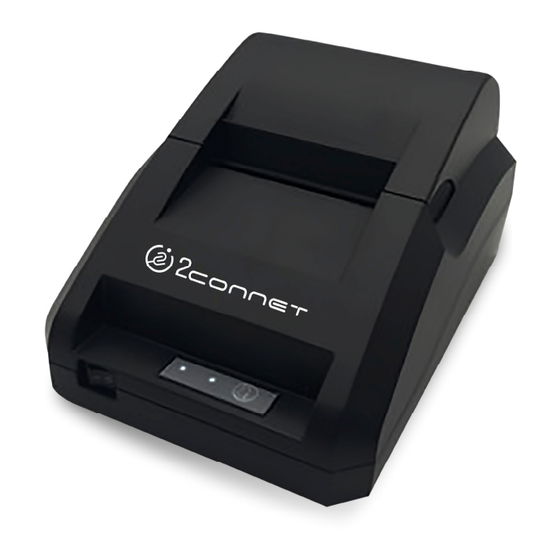

  • Page 1 2C-POS58-BU Thermal Printer User’s Manual...

  • Page 2: Table Of Contents

    Catalogue 1 Introduction ................................1 1.1 Brief introduction............................1 1.2 Main features ..............................1 2 Specification ................................2 2.1 Specification ..............................2 2.2 Printing material requirements ........................4 2.2.1 Paper parameters ..........................4 2.2.3 Printing paper using attention ......................4 2.3 Printing and paper cutting position .......................5 2.3.1 Printing position ..........................5 3 Appearance and components ...........................6 3.1 Appearance and components ........................6 3.2 Indicator instruction ............................8...

  • Page 3: Introduction

    2C-POS58-BU Thermal POS printer User’s manual 1 Introduction 1.1 Brief introduction KP206B is a thermal POS printer. It has good printing quality and high stability, which is widely used in POS system, food service industry and many other fields. KP206B connects other devices via USB port, optional Bluetooth. It offers drivers for WINDOWS, ANDROID and LINUX operating systems.

  • Page 4: Specification

    2C-POS58-BU Thermal POS printer User’s manual 2 Specification 2.1 Specification Item Parameter Printing method Thermal printing Resolution 203DPI,8 dots/mm Printing width 48mm(384 dots) Printing parameter Printing speed 90mm/s Bluetooth ： K P206B-UB Interfaces and USB: KP206B-U printer types Parallel ： K P206B-P...
  • Page 5 2C-POS58-BU Thermal POS printer User’s manual CP775 WCP1254[Turkish] WCP1255[Hebrew] WCP1256[Arabic] WCP1258[Vietnam] ISO-8859-2[Latin 2] ISO-8859-3[Latin 3] ISO-8859-4[Baltic] ISO-8859-5[Cyrillic] ISO-8859-6[Arabic] ISO-8859-7[Greek] ISO-8859-8[Hebrew] ISO-8859-9[Turkish] ISO-8859-15 [Latin 3] Thai2 CP856 Supports different density dots and images printings Supports grating bitmap printing Chart Supports download bitmap printing, every bitmap size should less than 256K, and the total capacity of download bitmap is 256K.

  • Page 6: Printing Material Requirements

    2C-POS58-BU Thermal POS printer User’s manual 2.2 Printing material requirements 2.2.1 Paper parameters 1) Paper type: thermal receipt paper/thermal black mark paper 2) Paper width:58±0.5 mm 3) Paper roll diameter: 50 mm (Max.) 4) Paper thickness:0.065 ~ 0.10mm 2.2.3 Printing paper using attention Note: Please use good quality paper, otherwise, it will effect printing quality and even reduce printer head life.

  • Page 7: Printing And Paper Cutting Position

    2C-POS58-BU Thermal POS printer User’s manual 2.3 Printing and paper cutting position 2.3.1 Printing position L1-Paper storehouse’s width:58±0.5mm L2-Effective printing width: 57mm L3-Distance between print head to paper storehouse’s left edge (fixed width): 3±0.3mm L4-Distance between print head to paper storehouse’s right edge (fixed width): 3±0.3mm L5-Left margin: Default is 4mm L6-Printing area width: it is set by commands (refer to programming manual).

  • Page 8: Appearance And Components

    2C-POS58-BU Thermal POS printer User’s manual 3 Appearance and components 3.1 Appearance and components...
  • Page 9 2C-POS58-BU Thermal POS printer User’s manual (1)Power indicator (6)Power port (2)Bluetooth indicator (7)Open lid notch (3) FEED button (8)Paper tearing port (4)Under cover of printer (9)ON-OFF button (5)Cover of paper warehouse...

  • Page 10: Indicator Instruction

    2C-POS58-BU Thermal POS printer User’s manual Function instruction of components ） P ower switch Press “O” side to power off, press “I” side to power on. ） s tatue indicator(blue) The indicator is on when power on, and statue of printer.

  • Page 11: Connect To Power Adapter

    2C-POS58-BU Thermal POS printer User’s manual 4.3 Connect to power adapter Make sure the printer is power off. Connect power adapter’s DC output plug to the printer. Connect power adapter’s AC input plug to a power outlet. Please be careful to operate correctly when plug out the plug of power cord to avoid damage.
  • Page 12 2C-POS58-BU Thermal POS printer User’s manual 3) Draw out paper roll tap, and load paper roll as below. 4) Draw out a printing paper, and leave some on the paper out month, then close the storehouse cover.

  • Page 13: Printing Self-Test Page

    2C-POS58-BU Thermal POS printer User’s manual Warning: Please make sure the paper roll in tense status, if not, it maybe cause paper jam or other problems. 5) The status after paper loading 4.7 Printing self-test page 1) Make sure the printer loaded paper roll correctly.

  • Page 14: Usb/Parallel Port Driver Installation

    2C-POS58-BU Thermal POS printer User’s manual 4.8.1 USB/parallel port driver installation ） Right click “InstallMFC.exe”,and run as administrator.(Double click to run in XP system,and it needs administrator to run in WIN7/WIN8) ） C hoose language as “Simplified Chinese”,and choose printer to connect PC port.

  • Page 15: Linux Driver Installation

    2C-POS58-BU Thermal POS printer User’s manual 4.9 LINUX driver installation USB port driver installation 1.Copy commandtokc，rastertokc，texttokc in the catalogue to the filter catalogue of cups.This catalogue normally is /usr/lib/cups/filter/.The installation procedure has been written in shell for installing expediently.Pls run shell script in terminal,the run command is :sudo ./install.sh.
  • Page 16 2C-POS58-BU Thermal POS printer User’s manual 2.Click system setting after installing filter. 3.Click printer...
  • Page 17 2C-POS58-BU Thermal POS printer User’s manual 4. Add printer Serial port printer chooses serial port #1,or serial port #n.It is permission denied if it does not show serial port.Please modify serial port device file access right as all people can read and write,or input command in the terminal:sudo chmod a+rw /dev/ttyS0;com1 in...
  • Page 18 2C-POS58-BU Thermal POS printer User’s manual...
  • Page 19 2C-POS58-BU Thermal POS printer User’s manual 5. You will realize a searching driver hint when click forward after selecting the port.Choose PPD file in the page of choosing driver procedure.
  • Page 20 2C-POS58-BU Thermal POS printer User’s manual 6. Choose Printer58.ppd in the catalogue...
  • Page 21 2C-POS58-BU Thermal POS printer User’s manual 7. Click “Forward” button 8. Click “apply” button.
  • Page 22 2C-POS58-BU Thermal POS printer User’s manual 9. Print self-test page The driver installs correctly if it can print self-test page.

  • Page 23: Interface Pin Definitions

    2C-POS58-BU Thermal POS printer User’s manual 5 Interface pin definitions The printer has a cash drawer driver interface and many kinds of communication interfaces: parallel and USB . USB port and cash drawer interfaces are standard interfaces, and it has USB and parallel ports as optional.

  • Page 24: Power Interface Pin Definition （ M Pc-3-001B

    2C-POS58-BU Thermal POS printer User’s manual 5.3 Power interface pin definition（ （ （ （ MPC-3-001B） ） ） ） ） P in definition Pin number Signal name +12V ） I nterface type: DC-005 Power socket. 5.4 Cash drawer interface pin definition（ （ （ （ RJ11-6P6C） ） ） ）...

  • Page 25: Faults Handling

    2C-POS58-BU Thermal POS printer User’s manual 6 Faults handling Please refer to the methods as below when printer can’t work normally. Please contact your supplier directly if it still can’t work normally. 6.1 Printer does not work Problems Probably reasons Solutions The Power indicator is not light.
