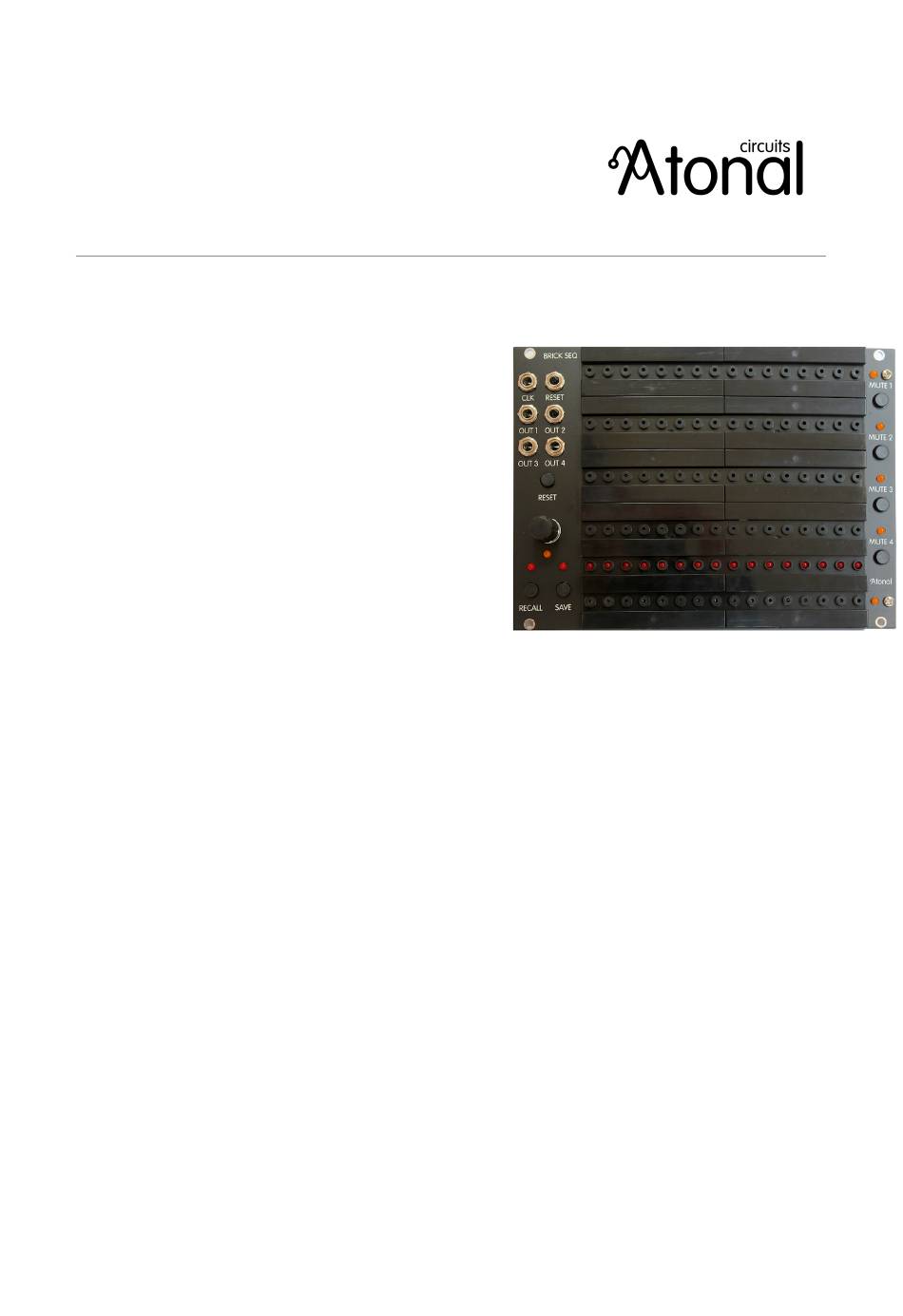

Atonal circuits A02 Quick Start Manual

A02

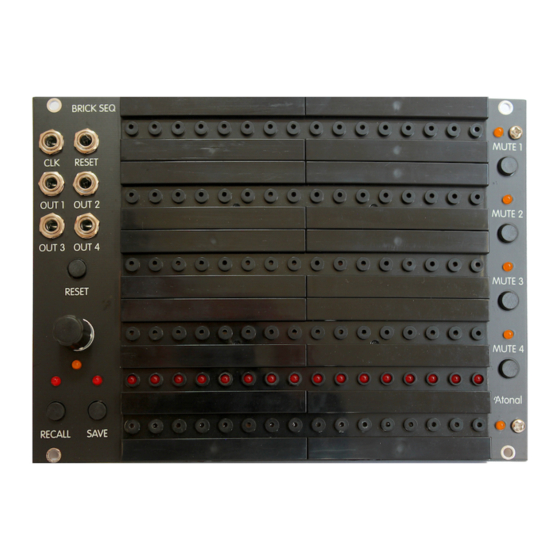

BRICK SEQUENCER

For best results, please observe these points:

● only use black or gray bricks to ensure
correct detection (add another one on
top with the color you like).
● use the module in a closed modular rack
(light from inside the rack can disturb
sensors).
● do the calibration procedure at the place
(with proper light environment) you will
use the module.

CALIBRATION

● set the light environment in the condition you'll use the module.
● place the 1x16 bar on the row you will calibrate.
● press and hold RECALL then press SAVE. (RECALL, SAVE, and encoder
leds will flash).
● with the rotary encoder, select the row you want to calibrate (according led will
flash).
● push the rotary encoder to validate, the sequence leds will flash back and
forth and the row is now calibrated.
● repeat operation for the 5 rows (don't forget the 5th row for in and out points).
● Now the module is calibrated and reference data is stored, you'll have to do
this operation again only if you encounter problems or if the light environment
changes dramatically.
● to exit calibration mode without changing anything, press again RECALL and
SAVE.
