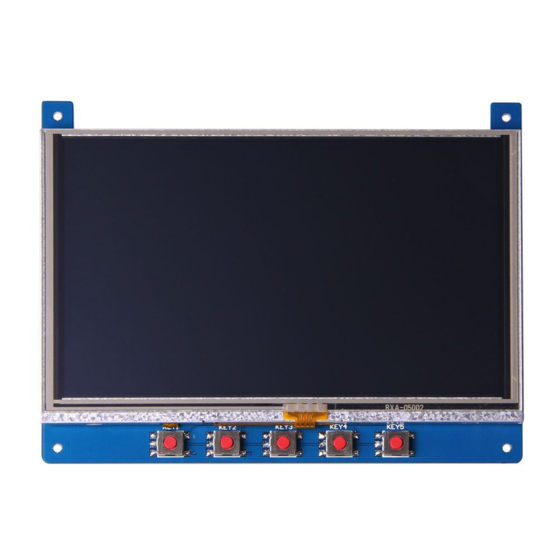

Summary of Contents for DisplayModule DM-ADTAU-005
- Page 1 USER MANUAL FOR DM-ADTAU-005 AND DM-ADTAU-006...
- Page 2 Arduino Quick start guide Contents Revision history Preparations Install the Library Installation Steps The Usage of DM-ADTAU-006 Copyright © 2015 2 / 7 www.displaymodule.com...
- Page 3 Changes 2015-07-28 First release 2 Preparations This manual assume you have the following: ● Arduino UNO, D M-ADTAU-001 , D M-ADTAU-005 ● Latest Arduino IDE installed from h ttp://arduino.cc/en/Main/Software Copyright © 2015 3 / 7 www.displaymodule.com...
- Page 4 ● Download the D MTftLibrary a nd unzip DmDrawBmp and DmTftLibrary to your Arduino library folder. (On Windows it's usually C:\Users\<your name>\Documents\Arduino\libraries) ● Restart Arduino IDE, now you can find examples in the File->Examples->DmTftLibrary Copyright © 2015 4 / 7 www.displaymodule.com...
- Page 5 Arduino Quick start guide 4 Installation Steps ● Attach the suitable display panel to the DM-ADTAU-005 according the connector number. There are 9 kinds of display panel: D M-TFT18-308 (for J1 connector); DM-TFT18-309 and D M-TFT18-310 ...
- Page 6 Arduino Quick start guide ● Upload the program to Arduino UNO then the display panel is working. Copyright © 2015 6 / 7 www.displaymodule.com...
- Page 7 5 The Usage of DM-ADTAU-006 There are some steps for the usage of D MADTAU006 adapter shield. 1. Connect the display shield( D MTFT43108 ) to the DMADTAU006 in J2 connector. 2. Connect the display module( D MTFT35323 o r D MTFT35324 ) to the DMADTAUOO6 in J1 connector. 3. The remaining steps are similar to DMTFT43108 module. Copyright © 2015 7 / 7 www.displaymodule.com...
