Summary of Contents for FIILPOW A6 PRO

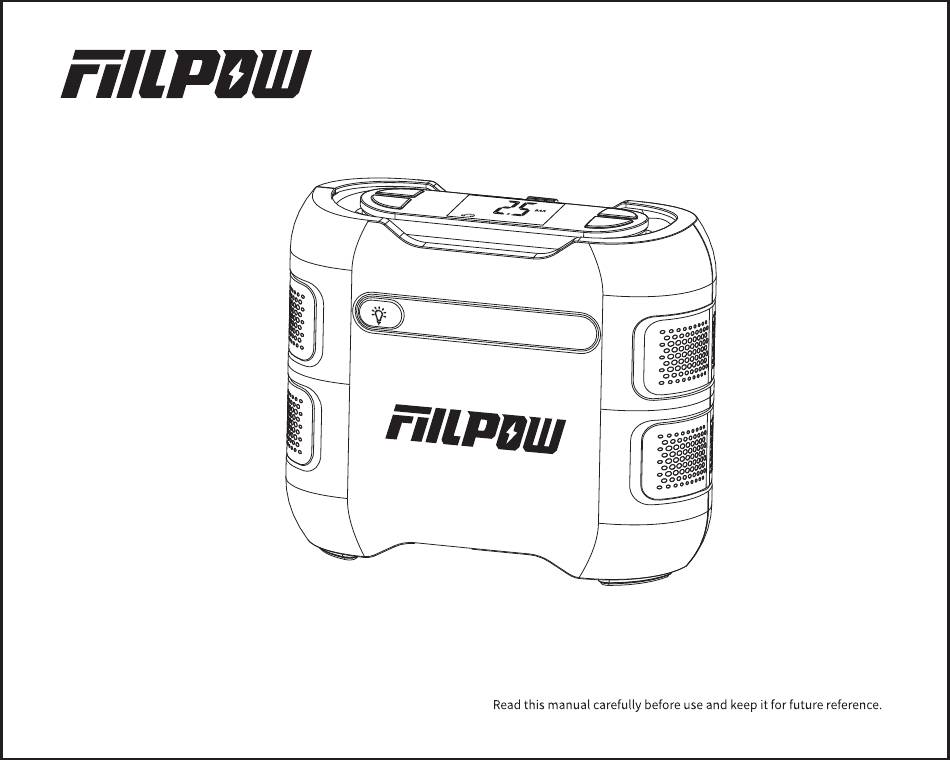

- Page 1 A6 PRO TIRE INFLATOR User Manual...
-
Page 2: Table Of Contents
Thank you for choosing FIILPOW. Thank you for purchasing FIILPOW Tire inflator A6 Pro. With up to 150PSI pressure value, this inflator can help you to deal with emergencies at ease. Contents 1. PRODUCT OVERVIEW 2. PACKAGE CONTENTS 3. CONNECTING AIR TUBE WITH INFLATED ITEMS 4. -
Page 3: Product Overview
1. PRODUCT OVERVIEW 1.Power button 7.Preset mode 2.Pressure value 8.Unit button 3.Pressure unit 9.Air tube and connector 4.“+” button 10.Emergency light 5.“-” button 11.Light button 6.LED screen 12.DC charging cable - 02 -... -
Page 4: Package Contents

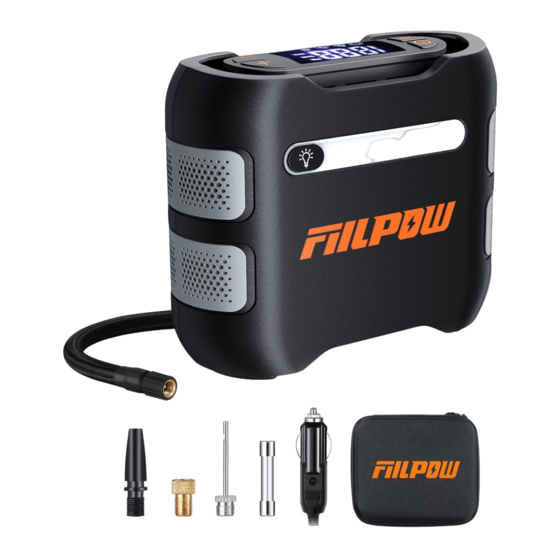

2. PACKAGE CONTENTS Schrader-Presta A6 Pro Tire Needle valve Extension Replacement valve inflator × 1 adaptor × 1 nozzle × 1 fuse× 1 adaptor × 1 Carrying User bag × 1 manual × 1 Carefully check package contents, if anything is missing or damaged, please contact online customer service for support. -
Page 5: Connecting Air Tube With Inflated Items
3. CONNECTING AIR TUBE WITH INFLATED ITEMS 1. Pull out the built-in air tube on the upside of inflator. 2. Connect the air tube with the inflated item. 4. CONNECTING THE AIR TUBE AND NOZZLE Schrader Valve Tires on cars, motorcycles, e-bikes, and most mountain bikes use a Schrader valve. -
Page 6: Connecting The Inflator With The Car
Needle Valve Adapter To inflate balls like basketballs and footballs, the included needle valve adapter will need to be used. To inflate: Screw the needle valve adapter onto the Schrader valve adapter, then insert the needle into the valve of the ball to start inflating. To deflate: Insert the needle valve adapter into the valve of the ball, and gently apply pressure to the ball to release air. -
Page 7: Turn On/Off The Inflator
6. TURN ON/OFF THE INFLATOR Turn ON Long press the power button 1.5 seconds to turn on. Turn OFF When the inflator is turned on, long press the power button 1.5 seconds to turn off. 7. DETECTING CURRENT PRESSURE VALUE When the inflator is turned on, connect the air tube to the inflated device, and then the LED screen will automatically display current pressure value. - Page 8 Balls The recommended air pressure for footballs, basketballs, volleyballs, and other balls is indicated near the ball's air valve. Air Pressure Reference Table Recommended Category Type Pressure Range 12-, 14-, & 16-inch bicycle tires 30 - 50psi 20-, 22-, & 24-inch bicycle tires 40 - 50psi 26-, 27.5-, &...
-
Page 9: Manual Mode And 4 Smart Modes
For safety, please read the recommended inflation pressure value provided by the manufacturer of the inflated devices before inflating. Otherwise, it might cause unexpected injury or burst due to over-inflation. 9. MANUAL MODE AND 4 SMART MODES Switch Mode Click the unit button to cycle through car mode→ motorcycle mode→bicycle mode→ball mode→manual mode. - Page 10 Default Pressure Value Of Different Modes Mode Default Pressure Value Manual mode (When in the manual mode, no 30PSI(Can be changed) mode icon is selected on the screen. ) Car mode 2.5BAR Motorcycle mode 2.4BAR Bike mode 45PSI Ball mode 8PSI - 09 -...
- Page 11 Note: The default pressure value of each smart mode is the most frequently used pressure value for its category. Please refer to the instructions or user manual of the item being inflated for actual inflation pressure specifica- tions. In the manual mode, The last target pressure value will be saved as its default pressure value. When the screen displays the real-time pressure value, click “+”, “-”...
-
Page 12: Start / Pause
10. START / PAUSE Start When the target pressure value is confirmed, press the power button to start inflating. Pause When inflating, press the power button to pause. Auto-Stop: In these three cases as below, the inflator will automatically stop inflating. Please restart the inflator to continue inflating. -
Page 13: Light
12. LIGHT When the inflator is turned on, press light button to turn on the light. When the light is on, press light button to cycle through Spotlight→SOS→Strobe→OFF. 13. TROUBLESHOOTING Problem Possible Reason Solution The target pressure setting Adjust the target pressure might be below the actual setting to a higher pressure. -
Page 14: Specifications
14. SPECIFICATIONS A6 PRO Model Rated voltage DC 12V Max current Maximum measurement range 150PSI Inflating time (0 to 35PSI) 6min 3000mm Power cable length Air hose length 600mm Pressure units PSI,Bar,Kpa LED light power 0.5W*5 Accuracy of gauge ±1.5PSI... -
Page 15: Safety Instructions
15. SAFETY INSTRUCTIONS ● Read and follow all instruction before use. ● To avoid damage to the compressor and the cigarette adaptor, please only use 12V DC (10-15amps) cable with this inflator. ● Inspect air inflator before use. If cracked, broken or damaged parts are found, qualified technicians should repair damaged parts. -
Page 16: Instructions On Environment Protection
16. INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal. -
Page 17: Warranty Card
(due to manufacturing fault) within please use Amazon’s 30-day return service. the warranty period. How to Return Your FIILPOW Product Contact support@fiilpow.com with your order number. We will issue you a return label for your return. Tear off the 'Return Details' page and fill in the details. - Page 18 Tel:+1 347-307-8957 Mon-Fri 9AM-5PM (PT) www.fiilpow.com facebook.com/Fiilpowofficial/ support@fiilpow.com Shenzhen Zhuangzhou Mengdie Trade Co., Ltd. C1606Y, Tianan International Building, No. 3012, Renmin South Road, Jiabei Community, Nanhu Street, Luohu District, Shenzhen...
