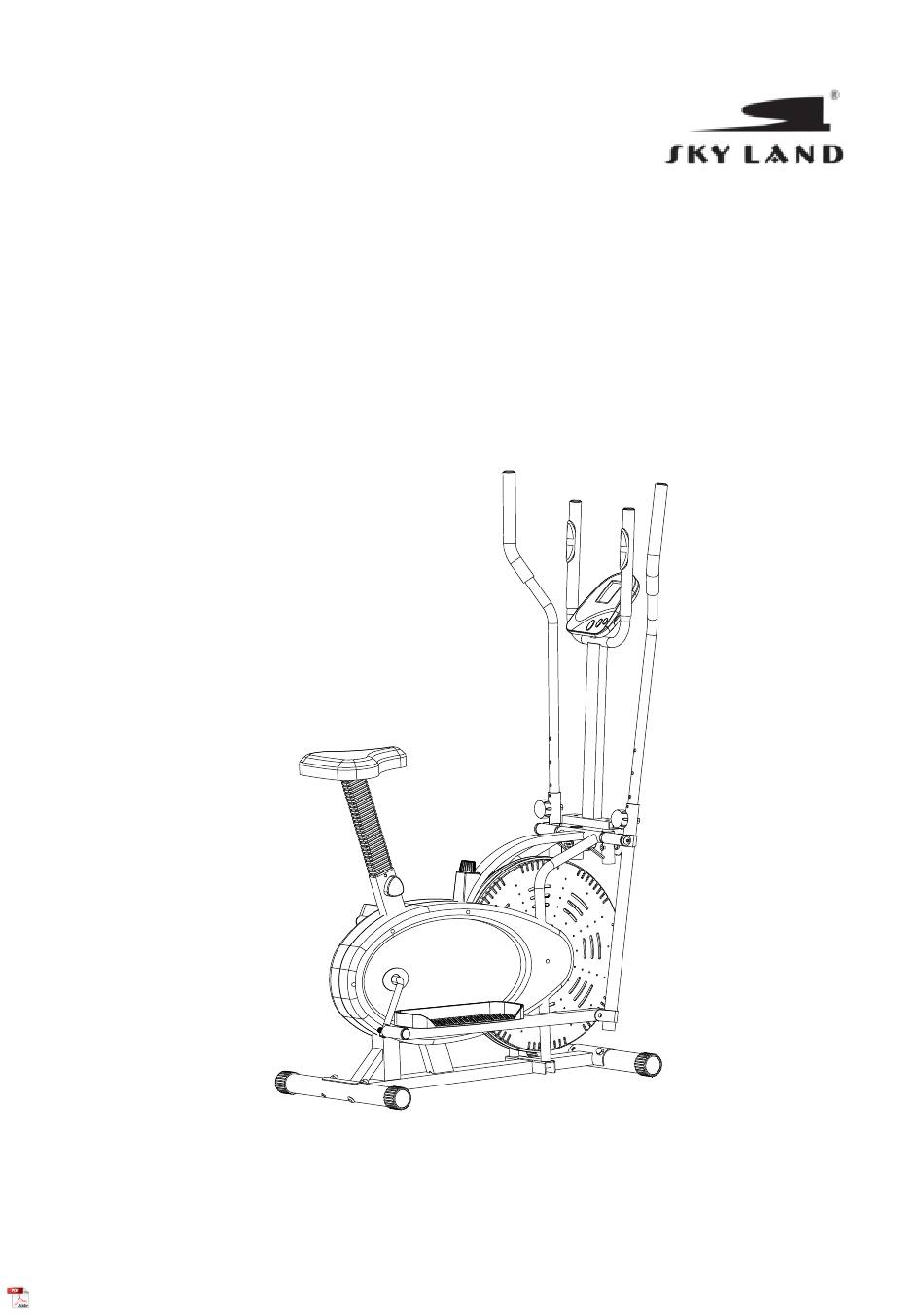

ORBITRAC
EM-1502
OWNERS' MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORBITRAC and is the answer not in the manual?

Questions and answers

Summary of Contents for SKY LAND ORBITRAC

  • Page 1 ORBITRAC EM-1502 OWNERS’ MANUAL...

  • Page 2: Important Safety Information

    Important Safety Information Before you undertake any program of exercise that will increase cardiovascular activity please be sure to consult with your doctor. Frequent strenuous exercise should be approved by your doctor and proper use of your product is essential. Please read this manual carefully before commencing assembly of your product or starting to exercise.

  • Page 3: Exploded Diagram

    Exploded Diagram...

  • Page 4: Parts List

    Parts List Description Q’TY Description Q’TY Main frame Chain cover screw ST4.8× 48 Front bottom tube Tension fix screw ST4.8 × 20 Back bottom tube Washer D8 Right coupler ba Bolt M6 × 36 Left coupler bar Nylon nut M8 Right pedal tube Bolt M10 ×...
  • Page 5 Assembling of item: STEP 1: Install the Front bottom tube (2) and Back bottom tube (3) to the Main frame (1) with Carriage bolts (46), Arc washers (49) and Acorn nuts φ3/8" (47). STEP 2: 1. Use Handle bar shaft (12) to connect the Coupler bar of left & right (4, 5) and the Main frame (1).
  • Page 6 STEP 3: Fasten with Bolts (44) and Nylon nuts (45) to connect with the left and right pedals (11) and the Right and Left pedal tube (6L, 6R) respectively. STEP 4: 1. Insert the handle bar (7L, 7R) to the coupler bar (5, 4) respectively, select a height setting that is comfortable to the user, and make sure both handle bars are set at the same height.
  • Page 7 STEP 5 Firstly unscrew the Nylon nut M8 (43), Washer D8 (41) from the seat (65). Secondly put the seat onto the Seat tube (68), and the screw the seat with the Nylon nut M8 (43) and Washer D8 (41). STEP 6: 1.
  • Page 8 STEP 7 1. Screw the Cylindrical tube (70) onto the Main frame (1) with 2 knobs (17). 2. Screw the Vertical tube (58) onto the Cylindrical tube (70) with 2 washers (59) and 2 bolts (60), and then put on the caps (76). 3.

  • Page 9: Operation

    Operation 1. BALANCE THE BICYCLE EXERCISER. Place the BICYCLE EXERCISER in the location it will be used. The floor should be hard and flat and the bike should sit firmly on the floor. If the bike is not stable, turn the end caps on the bottom tubes until the bike is stable.
