AG.sport Move It Start Manual

Skipping rope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Start Guide
Move It Smart Skipping Rope
IC-SR-001 (v1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Move It and is the answer not in the manual?

Questions and answers

Summary of Contents for AG.sport Move It

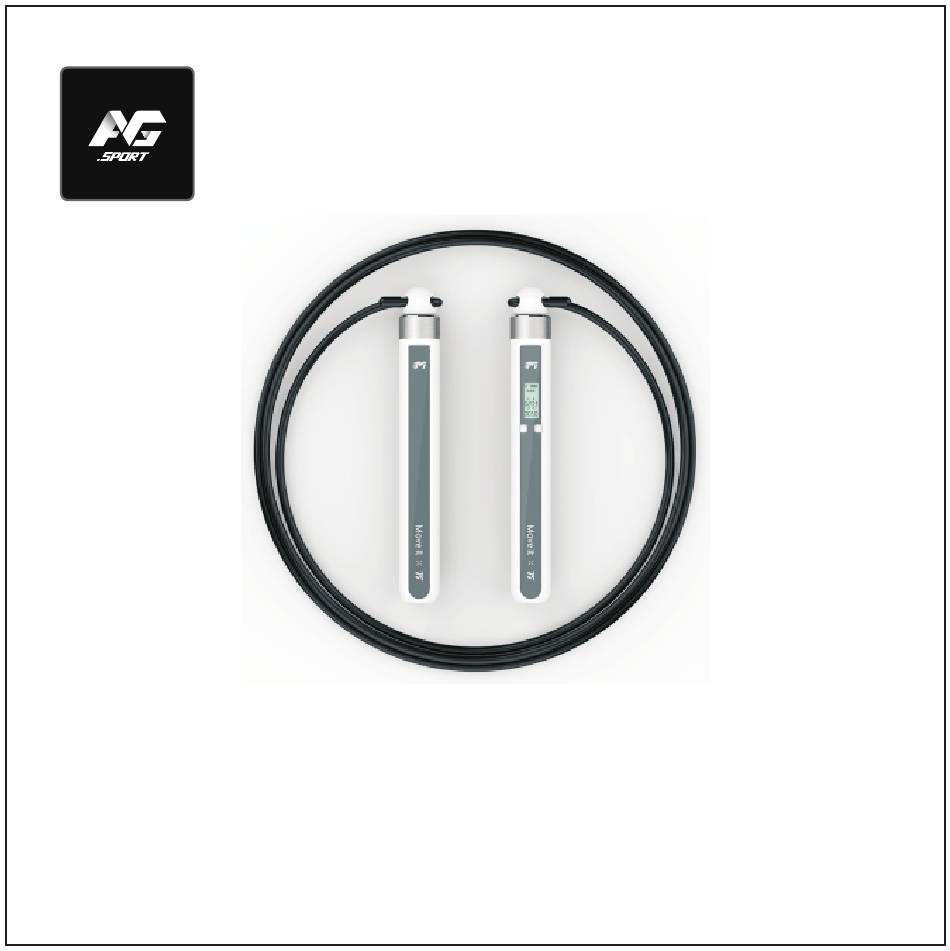

  • Page 1 Start Guide Move It Smart Skipping Rope IC-SR-001 (v1.0)

  • Page 2: Product List

    Product List 1 x Rope 1 x USB with Jackets Charging Cable 2 x Rope Lock Start Guide Move It Smart Skipping Rope IC-SR-001 (v1.0) 1 x Normal 1 x Bag 1 x Function 1 x Manual Handle Handle...
  • Page 3 1. Download Move it APP To download the “Move It” app, you can either scan the QR code below or search “Move It” in your mobile app store. Move It app is only compatible for Android 4.4 or iOS 9.0 and above.
  • Page 4 3. How to activate product When using the product for the first time, ensure you charge the product for at least 20 minutes and there is at least 2 dash lines displayed. Connect one the end of the providing charge cable to the handle charging port and the other to a 5V adapter to safely charge the device.
  • Page 5 4. Assembling Follow the steps below to assemble the skipping rope.
  • Page 6 5. Initiating Blutooth Turn on Bluetooth on your mobile, ensure that your mobile is made discoverable. With Googles’s updated system requirements, Android users may be prompted to turn their Location Service on in order to ensure a stable connection on Bluetooth.

  • Page 7: Pairing The Device

    6. Pairing the device Login to your account and pair the product to your mobile by selecting: Me > Device Management > Move It Smart Rope V2...
  • Page 8 Scan for the skipping rope Select your skipping rope to pair to your mobile...

  • Page 9: Start Workout

    7. Start Workout At the main menu, select Workouts > Jump Rope V2...
  • Page 10 Select either the “Rep Countdown”,“Time Attack”or “Free Count” mode to start your workout. Mode 1: Rep countdown Select Rep Count with number of 50, 100, 500,1000 or Custom to start workout. Regarding custom setting, Please follow step below.
  • Page 11 Input numbers of reps as you want, confirm and start to workout.
  • Page 12 Mode 2: Time Attack Select Duration with number of 00:30(sec), 01:00(min), 05:00(mins), 10:00(mins) or Custom to start workout. Regarding custom setting, Please follow step below.
  • Page 13 Input time target as you want, confirm and start to workout.
  • Page 14 Mode 3: Free Count Connecting device automatically and start to workout.
  • Page 15 7a. Join a Challenge For new challenge participants, select the icon “M1” or tap the challenge box to begin the challenge! If your jump rope has not been paired successfully, it will prompt you to initiate Bluetooth pairing with your mobile phone. Otherwise, you will begin the challenge!
  • Page 16 8. Learn to jumping Learn to jump following programs guidance. You need to pay for it and unlock the training course.

  • Page 17: Display Instruction

    9. Display Instruction FREE MODE COUNT DOWN TIME DOWN COUNT COUNT COUNT TIME TIME TIME *The smart skipping rope does not support offline data saving, it needs to connect with mobile phone APP to save motion data. Bluetooth Indicator: When the skipping rope and mobile are connected, a Bluetooth icon will show. Battery icon: The battery icon shows the remaining power left in the product.

  • Page 18: Button Function

    10. Button Function Wake-up device Short press once with left or Right button to wake up the device. The Led screen will be light up. Switching mode Long press 2 seconds with the left button to switch mode(Countdown, Time Attack or Free Count), and the device will vibrate for each switching.

  • Page 19: Product Specification

    11. Product Specification IF-SR-001 Model No.: Double Hall Sensor Build-in Sensor: 70mAh(3.7v) Li-Ion Battery: Micro USB Charging Port: Input : Bluetooth 4.0 Connect: Apple iOS 9.0 or Android 4.4 and above Operation System: Evolving Contents in App: 12. Charging 1.Connect the Micro USB cable to the bottom of the handle to charge with 5V adapter. 2.A full charge takes approximately 1 hour.

  • Page 20: Warranty

    Warranty According to the prescription, the period for protecting to fix our products is one year(From the day when you buy). During this period are belong to under normal usage circumstance cause because of the product quality is the problem of breakdown. We will responsible for giving free replacing.
  • Page 21 Ready, Set, MOVT IT! Make technology easily accessible, life-changing and healthier. Brand: AG.sport Manufacturer: Shenzhen AG Sport Equipment Co.,Ltd Address: Building 5, Yuantou Lane, No.1155 Xueyuan Avenue, Tanglang Community, Taoyuan Street, Nanshan District, Shenzhen City, Guangdong Province, China Email: ag@agsport29.com...

This manual is also suitable for:

If-sr-001
